Space-saving design
With a depth of just 11", ideal for tight spaces without limiting exercise execution.
Book a free appointment for one-on-one expert advice.
Our customer service team is here for you Monday – Friday, 8 AM – 4 PM PT.

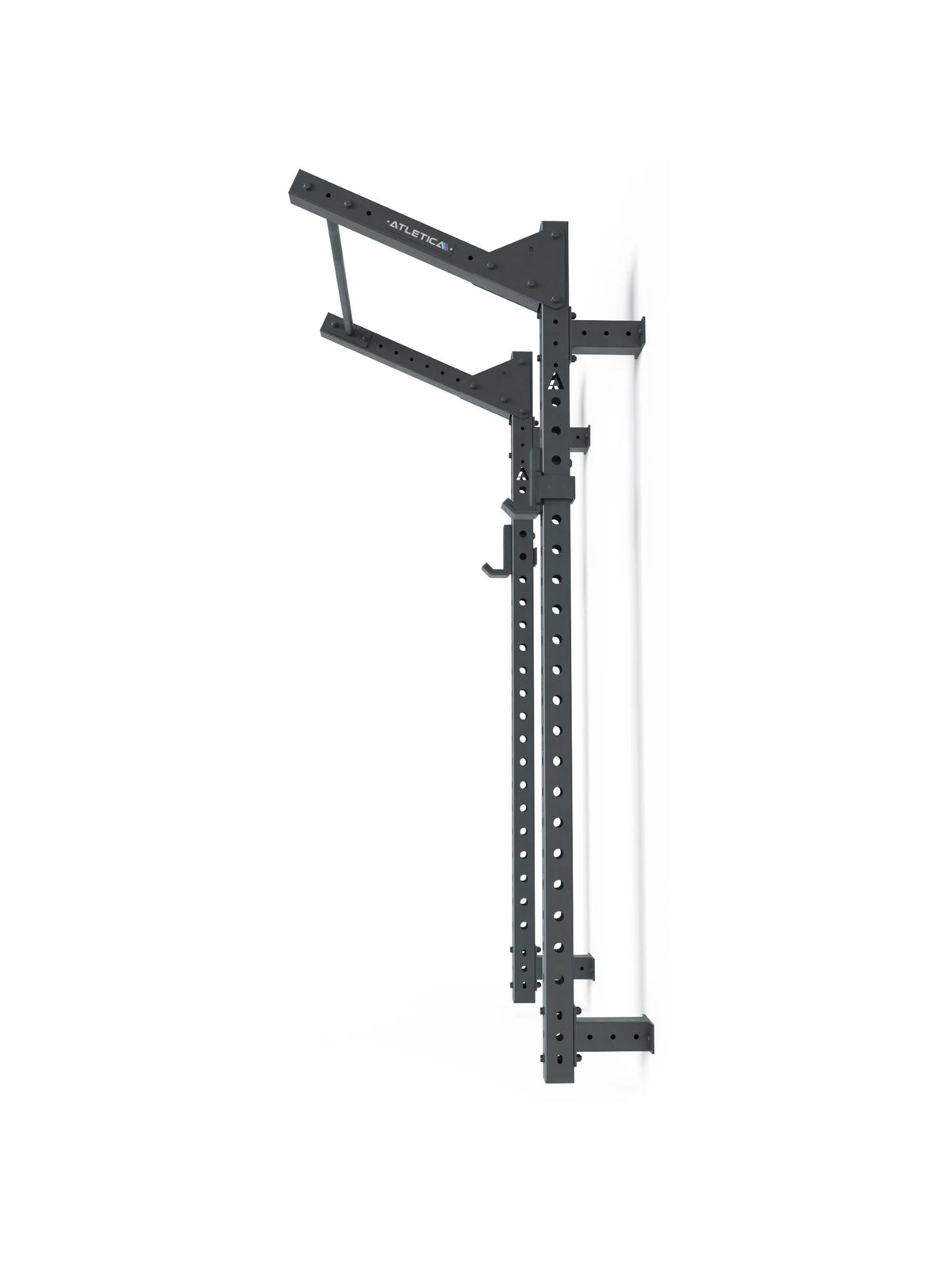

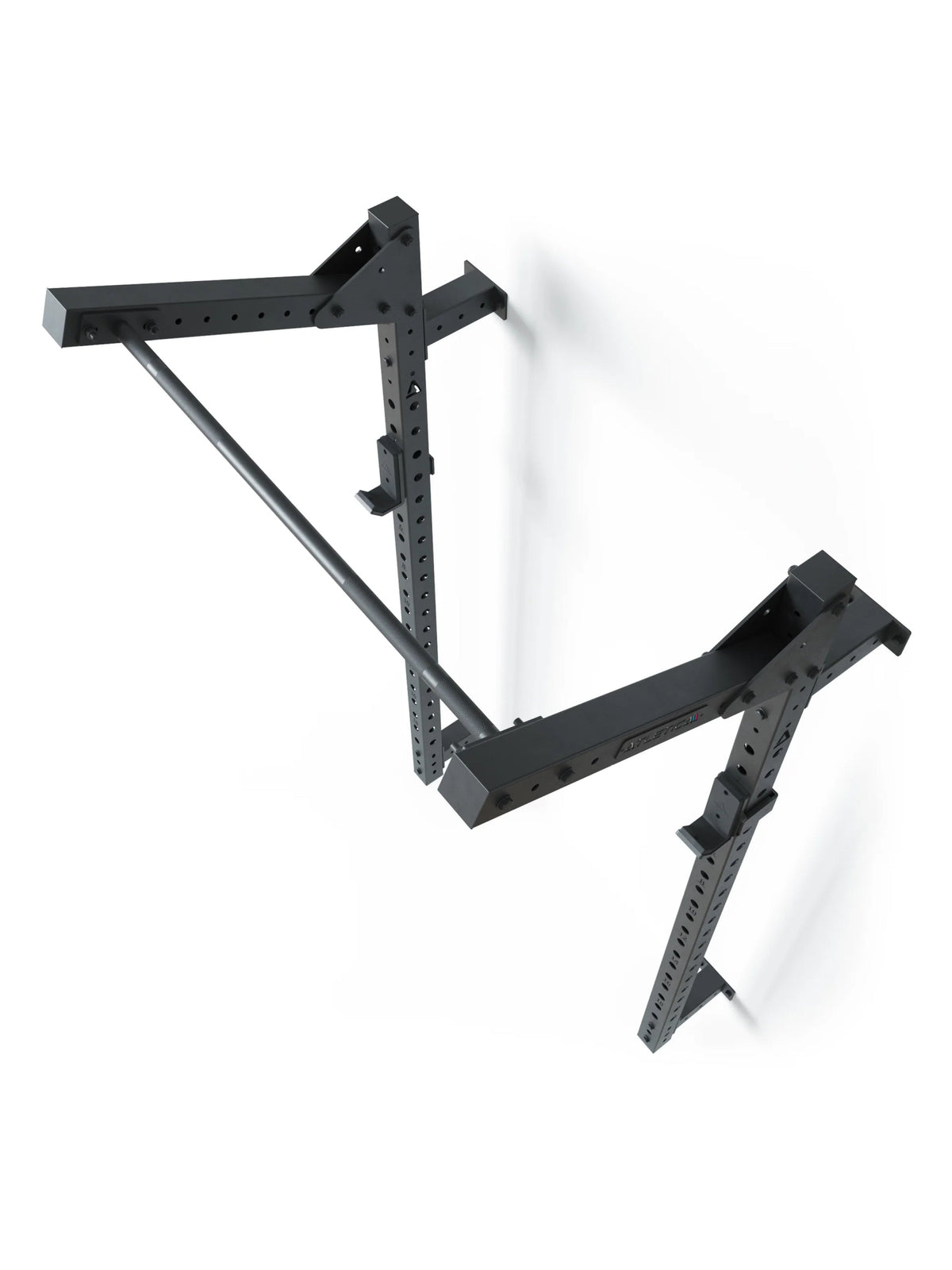

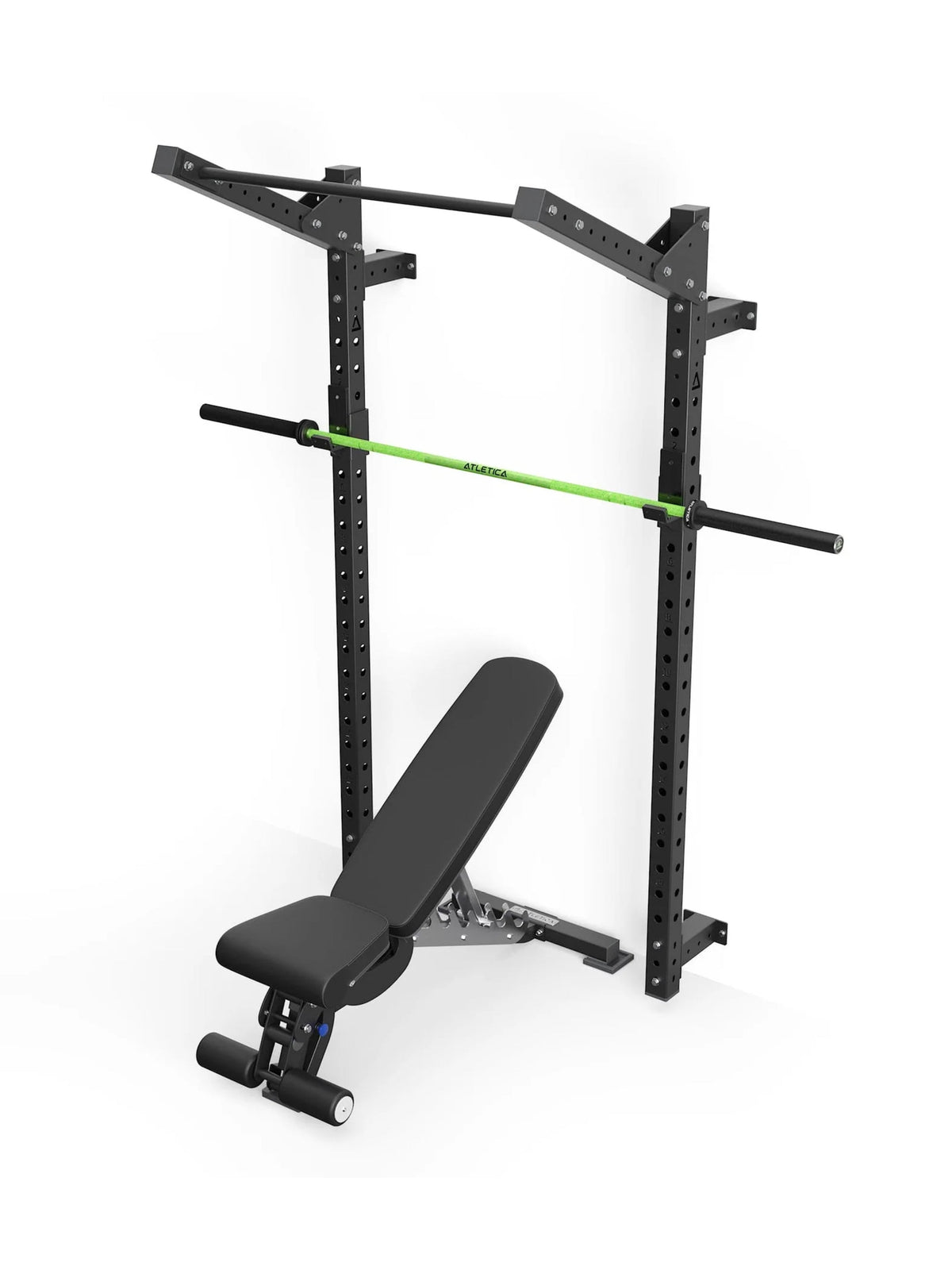

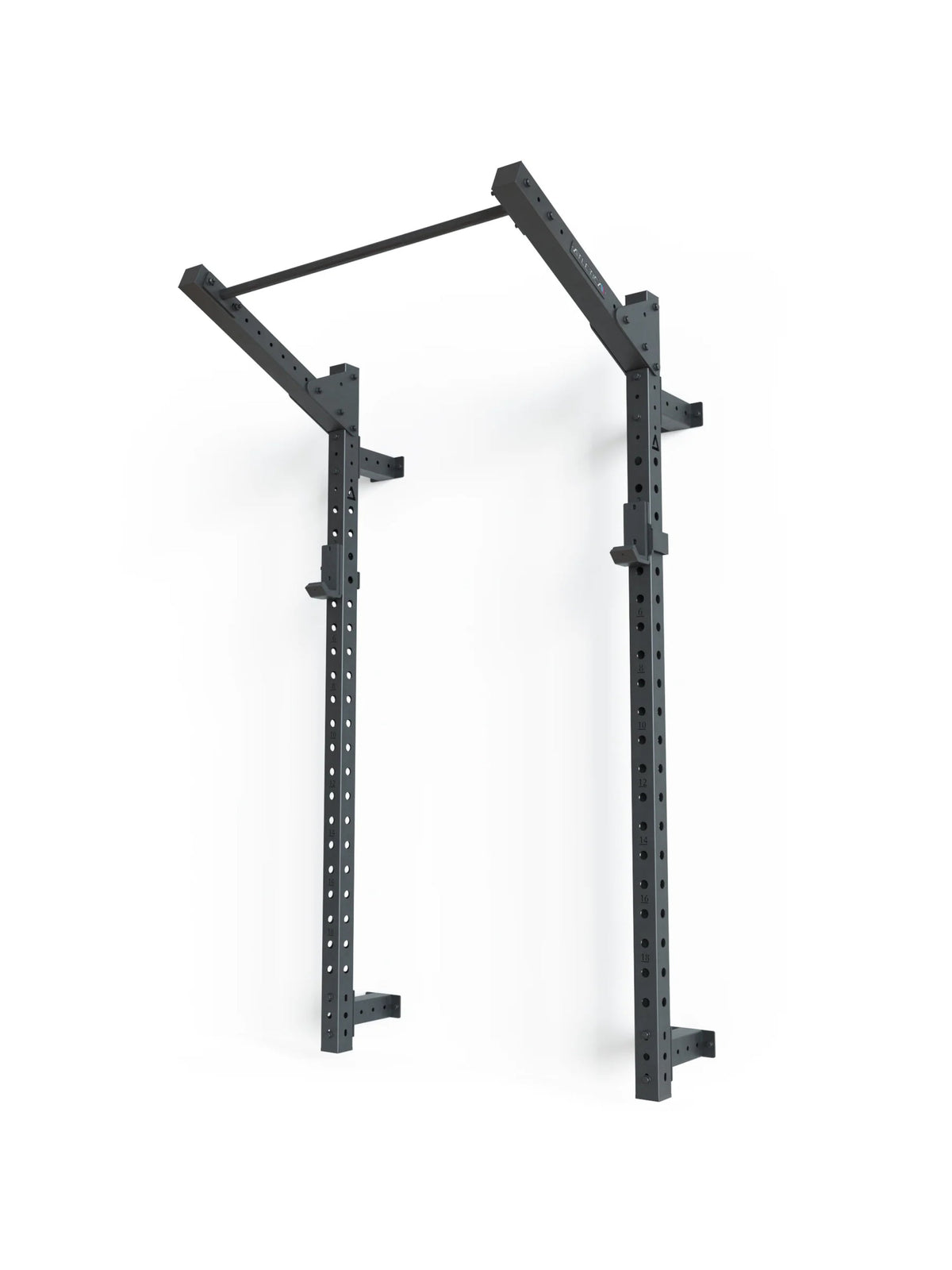

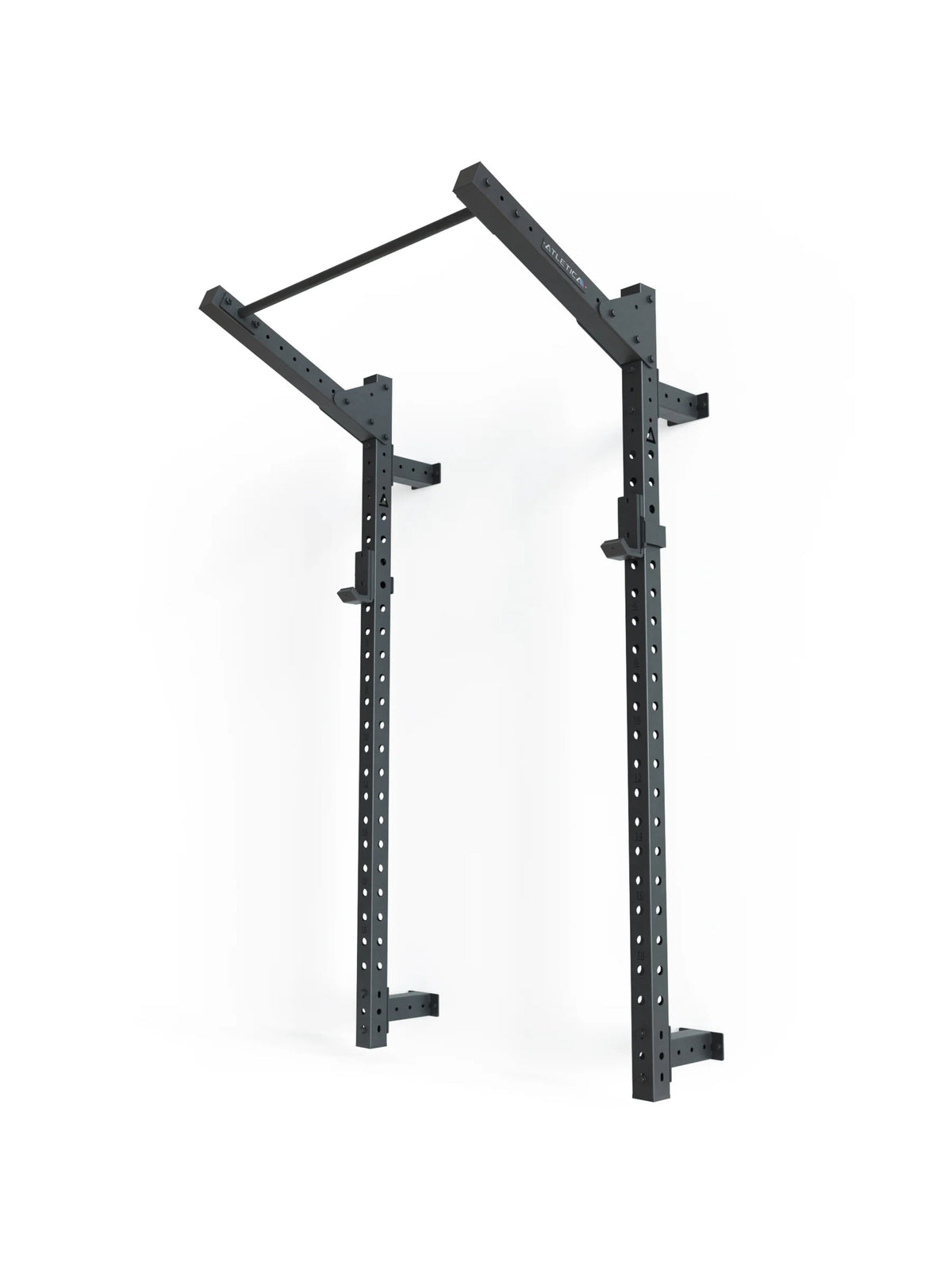

R8 Wall Rack
Wall mount | Only 11-inch depth | Suitable for tight garage gyms & garages | Height-adjustable 90"-95" | 3"x3" 11-gauge steel profile
R8 Wall Rack
Sale Price$529.00
Product Features
Robust Stability
Bolted into a solid wall, it is in no way inferior to 4- or 6-post systems in terms of stability.
Versatile Use
Enables all free-weight exercises such as squats, just like on a four-post power rack.
Flexible accessories
J-Hooks (up to 990 lb) and a height-adjustable pull-up bar with excellent grip are included in the scope of delivery.
Compatible dimensions
The 48" width is ideal for all commercially available barbells with an inner dimension of 52".
Tested Quality
TÜV- and GS-certified according to EN 20957: The Atletica R8 Power Racks meet the highest European safety standards and are suitable for use in commercial gyms.

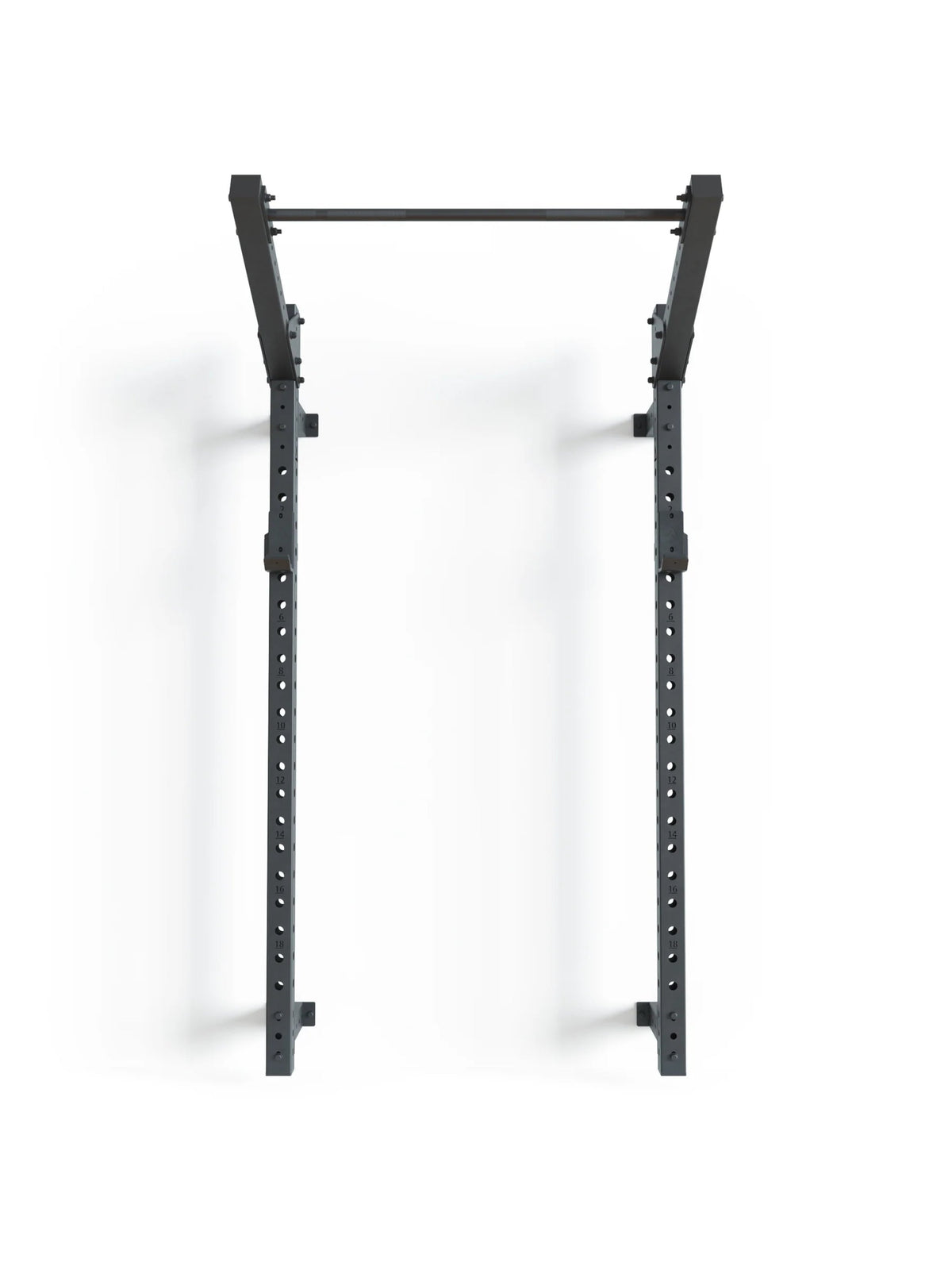

The R8 Wall Rack measures only 11" in depth
- The distance to the wall is large enough to load even Bumper Plates onto the barbell on the rack and, for example, to perform bench presses on a weight bench
- At 48", the width is identical to that of our R8 Power Racks and therefore ideal for use with all standard barbells with an inner dimension of 52"
- This means you can perform all exercises with free weights such as squats, just like on a power rack with four posts

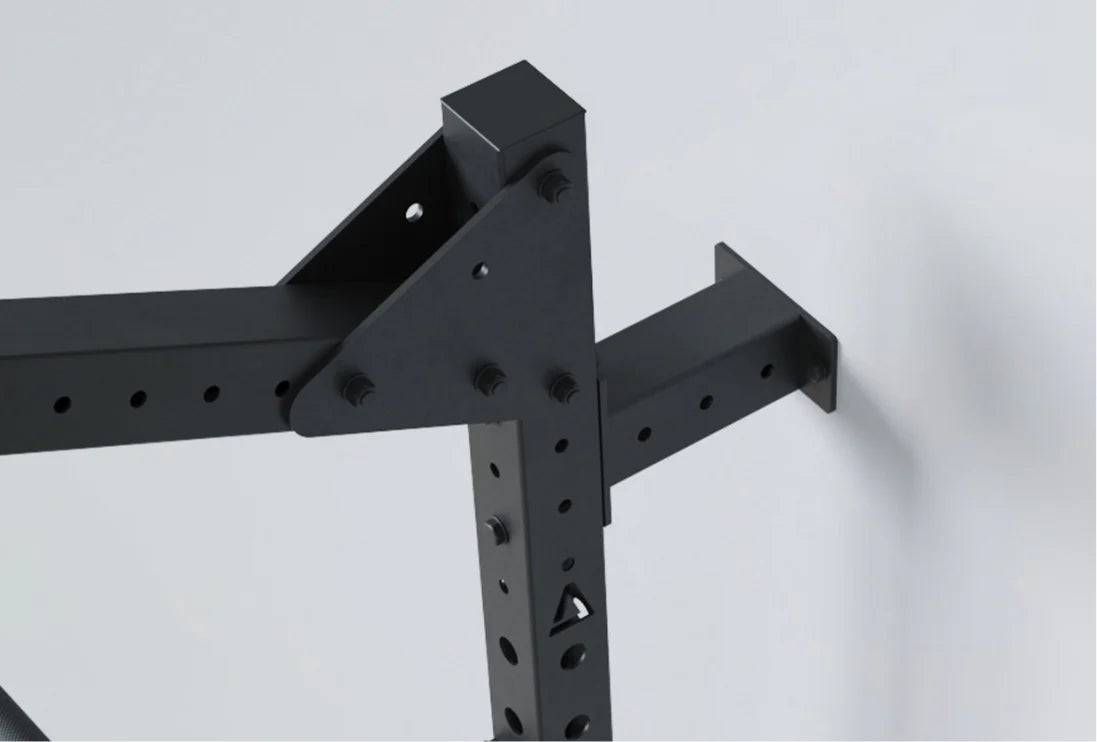

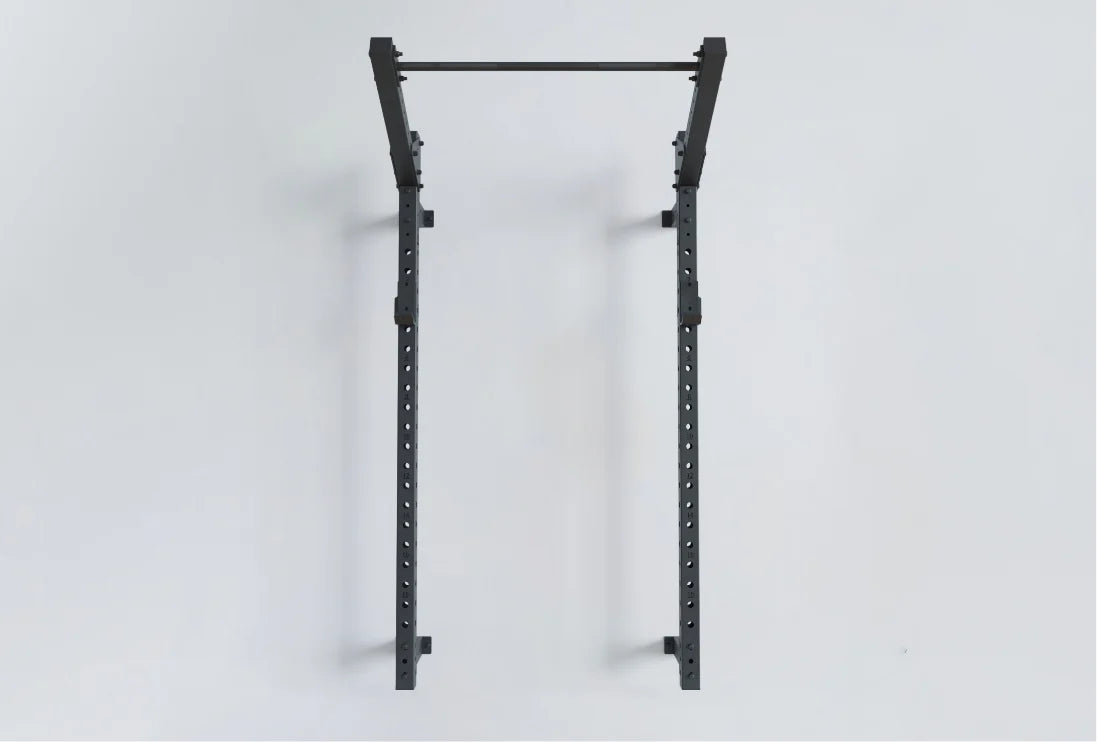

- Screwed into a suitable wall, it is in no way inferior to the 4- or 6-post systems in terms of stability

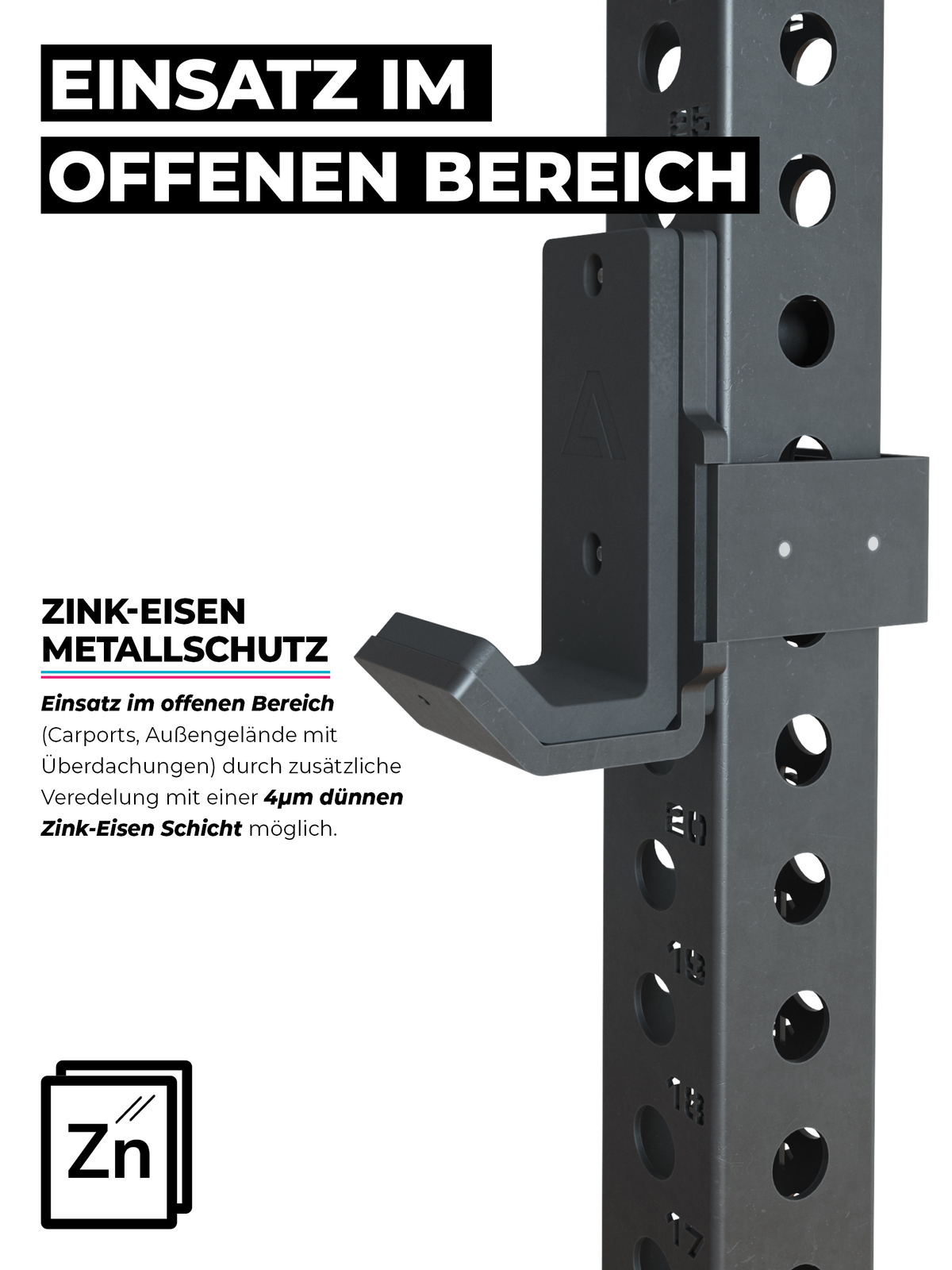

Usable outdoors and in apartments or garages
- The zinc-finished steel is suitable for outdoor use
- The R8 Wall Rack can, however, also be used in apartments, provided the walls are sufficiently solid
- Unlike the power racks in our R8 series, the feet are not fitted with rubber protectors
- If the wall rack is not mounted floating on the wall, it is advisable to additionally use one of our gym flooring on a sensitive surface
- In the case of a garage, it is often necessary to quickly free up space to be able to park a car in it
- Our B1 and Predator weight benches are especially suitable for this, since thanks to their stand function they can be raised vertically without much effort or time and thus moved out of the way
Equipment and expandability

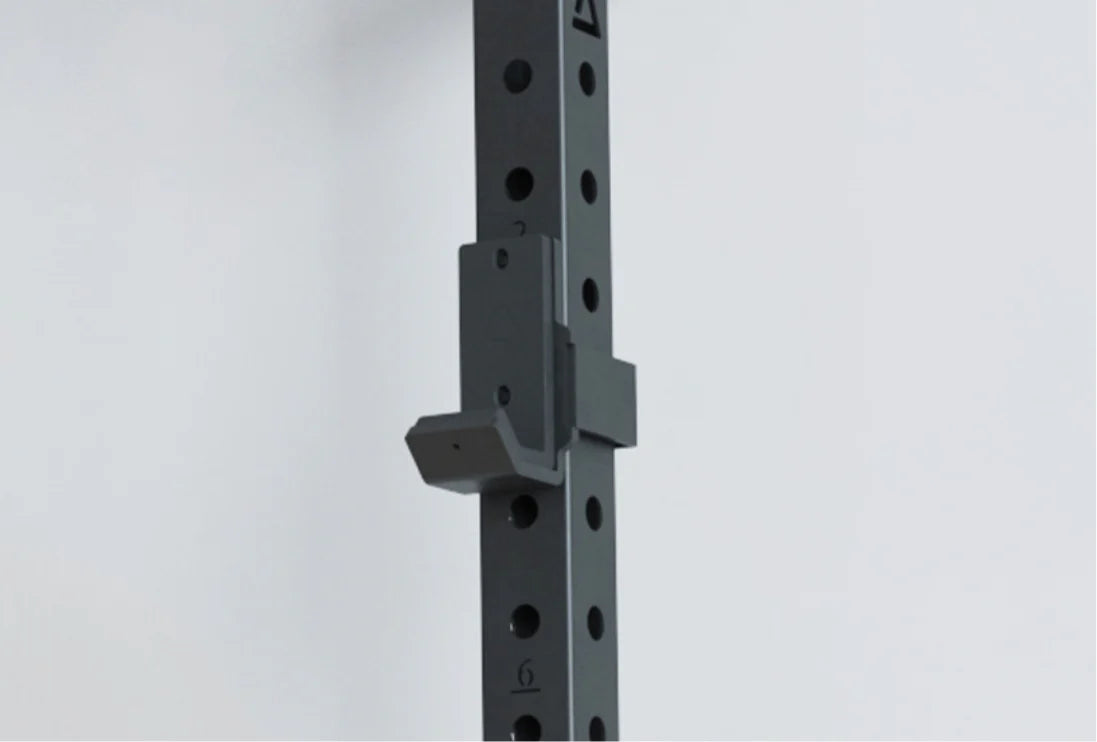

- In addition to the J-hooks, which have a load capacity of up to 990 lb, a pull-up bar is also included in delivery
- It has medium-sharp knurling and gives you an excellent grip during your back training
- It can also be mounted on the rack at different heights and even facing downward, so you can reduce the overall height from 95" to 90"
- If needed, additional attachments can be purchased
- The Wall Rack is compatible with all attachments in our R8 series
- Among other things, you can further increase functionality and exercise variety with spotter arms or a core rotation trainer
Item ID
| SKU | 555-1631 |
| EAN | 4260754390253 |
| Color | Matte Black |
Specifications

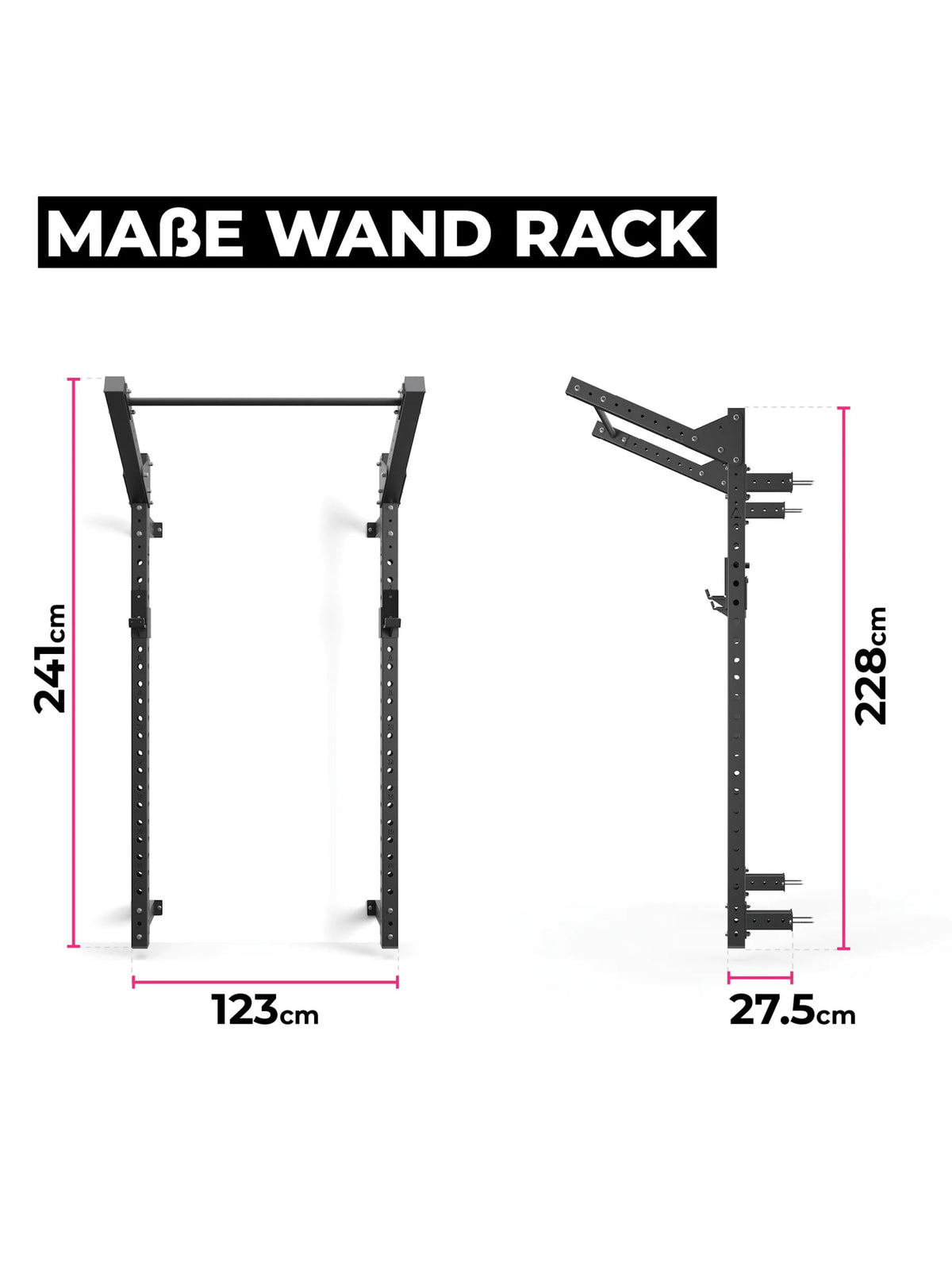

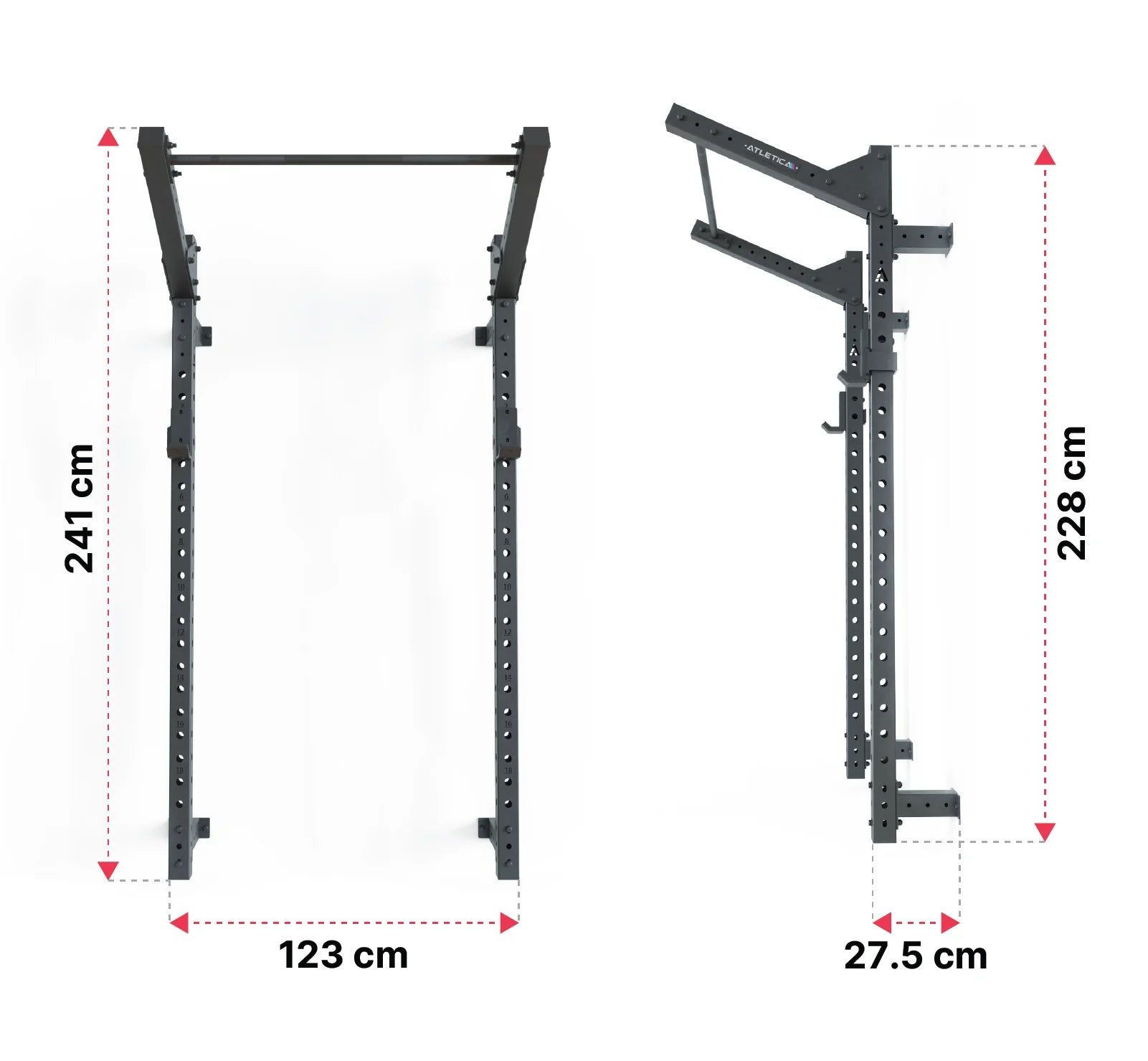

Dimensions & Footprint
| Height | 90" - 95" |
| Width | 48" |
| Depth | 11" of the rack, 38" including pull-up bar of the rack |
| Net Weight | 170 lb |
Load Limits
| Upright posts and crossbars | Up to 1,750 lb |
| Load Distribution | 80% floor and 20% wall. Load directed away from the wall toward the floor. |
| J-Hooks Type 1 | Up to 1,200 lb per J-Hook , Weight-Drop-Test verified |
| Monkey Bar | Up to 550 lb , tensile strength verified |

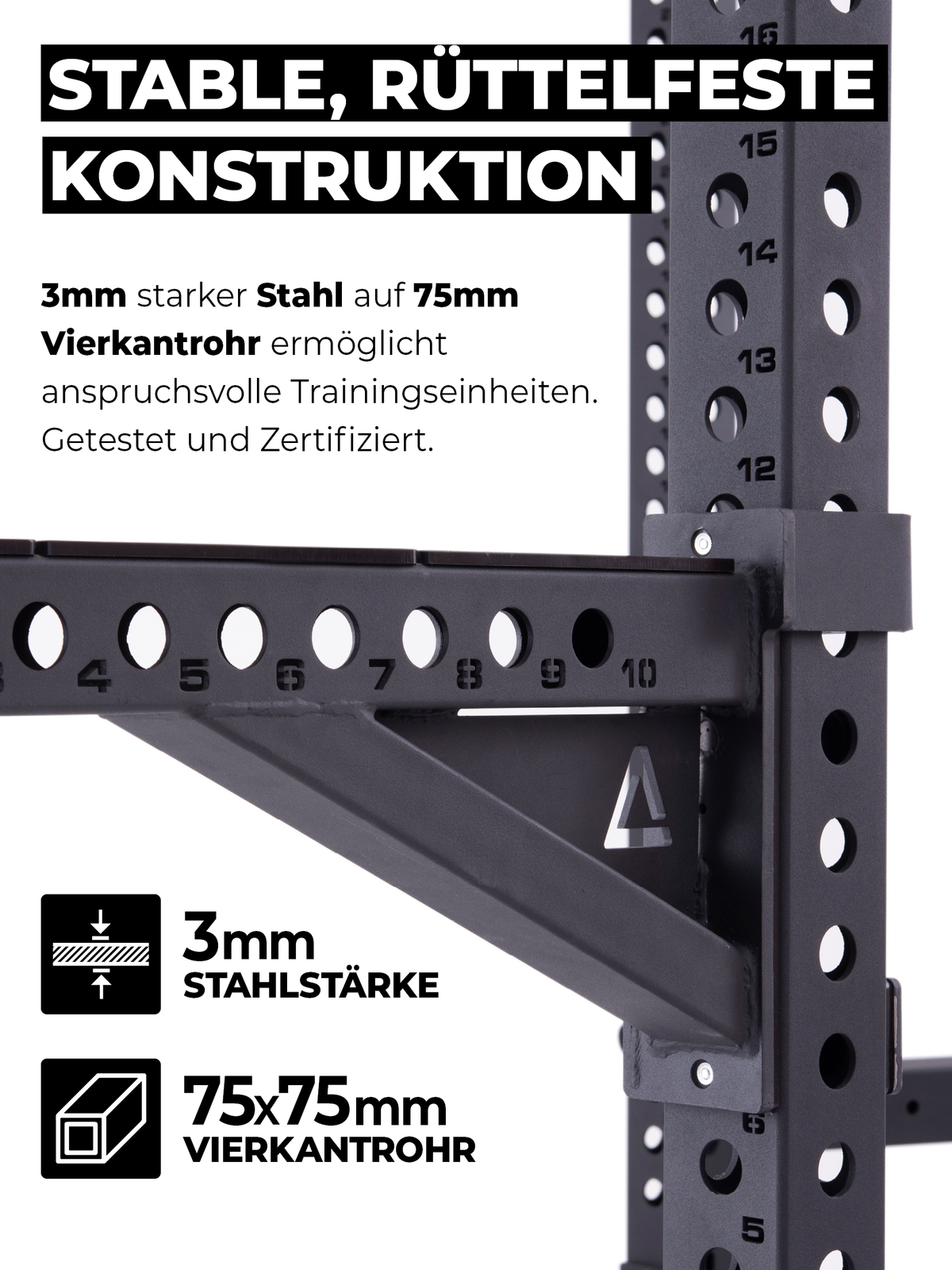

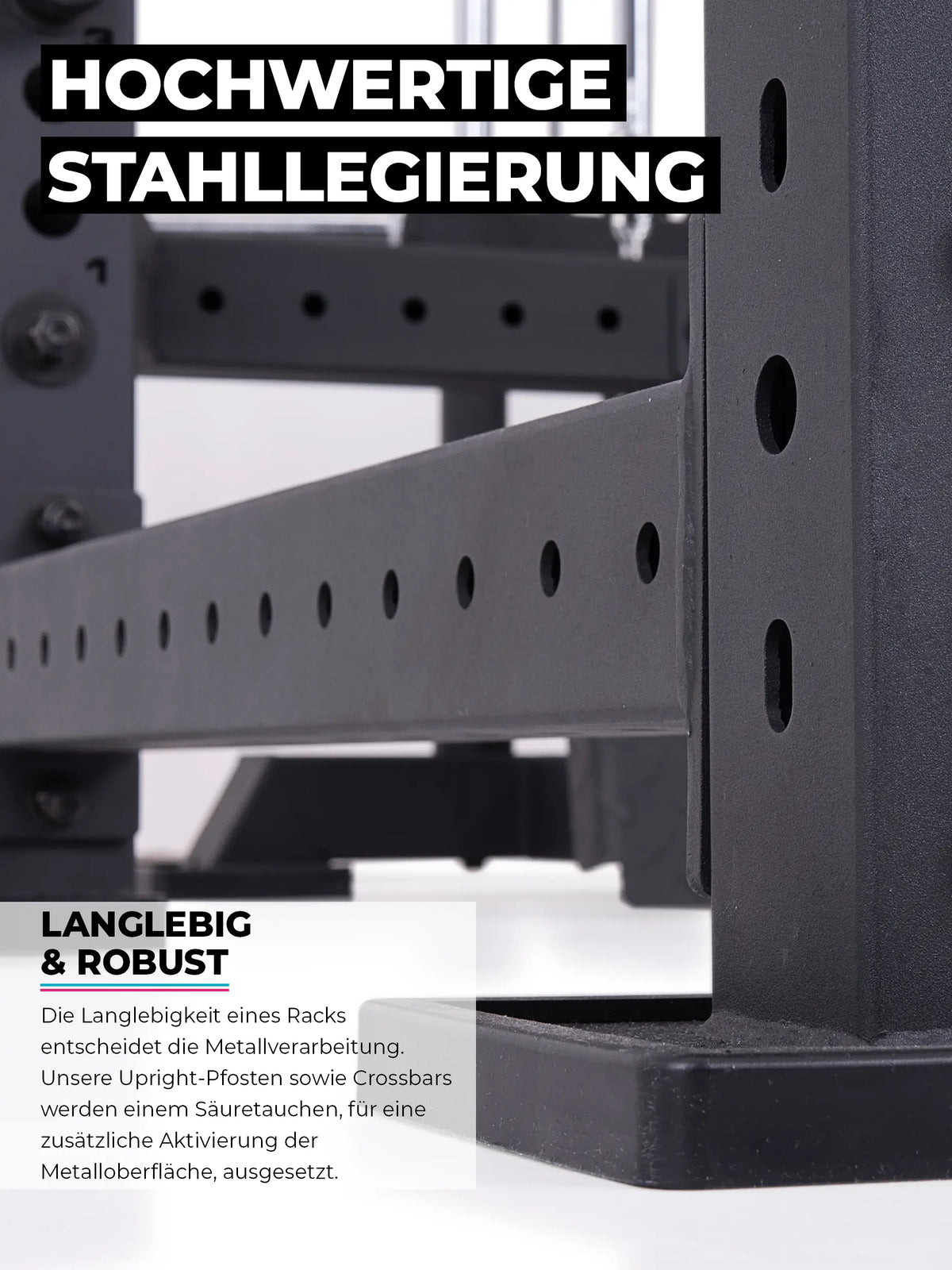

Base Frame
| Steel Type | Alloy Steel |
| Square Tube | 3"x3" |
| Steel Thickness | 11-gauge |
| Coating | Double powder coating |
| Corrosion Resistance | Zinc Alloy |

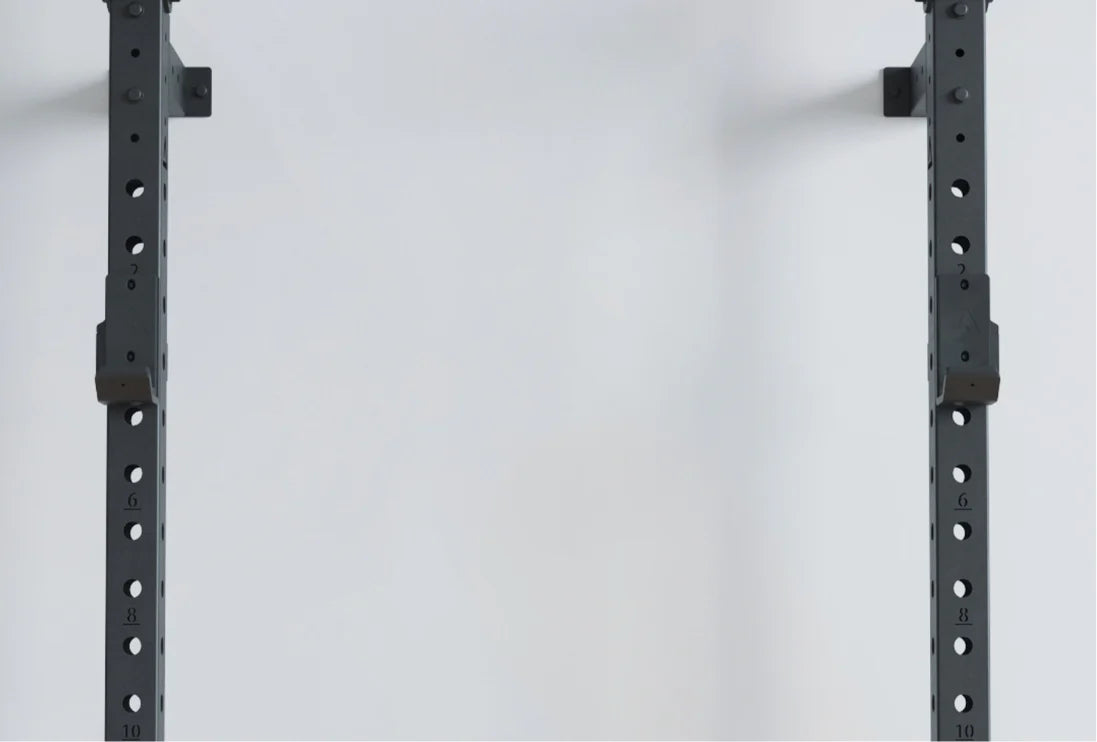

Hole Pattern & Compatibility
| Hole Grid | 50mm |
| Hole (Pin) | 25mm |
| Hole Spacing | 50mm |
| Numbering and Scaling | 32-position laser engraved + 9-position Ultra-Fine Adjustment CrossBars |
| Weight Plate Compatibility | 50mm |
| Compatibility with ATLETICA | All ATLETICA R8 Attachments - Modular Concept |
Policies & What's Included
Attachments/Accessories

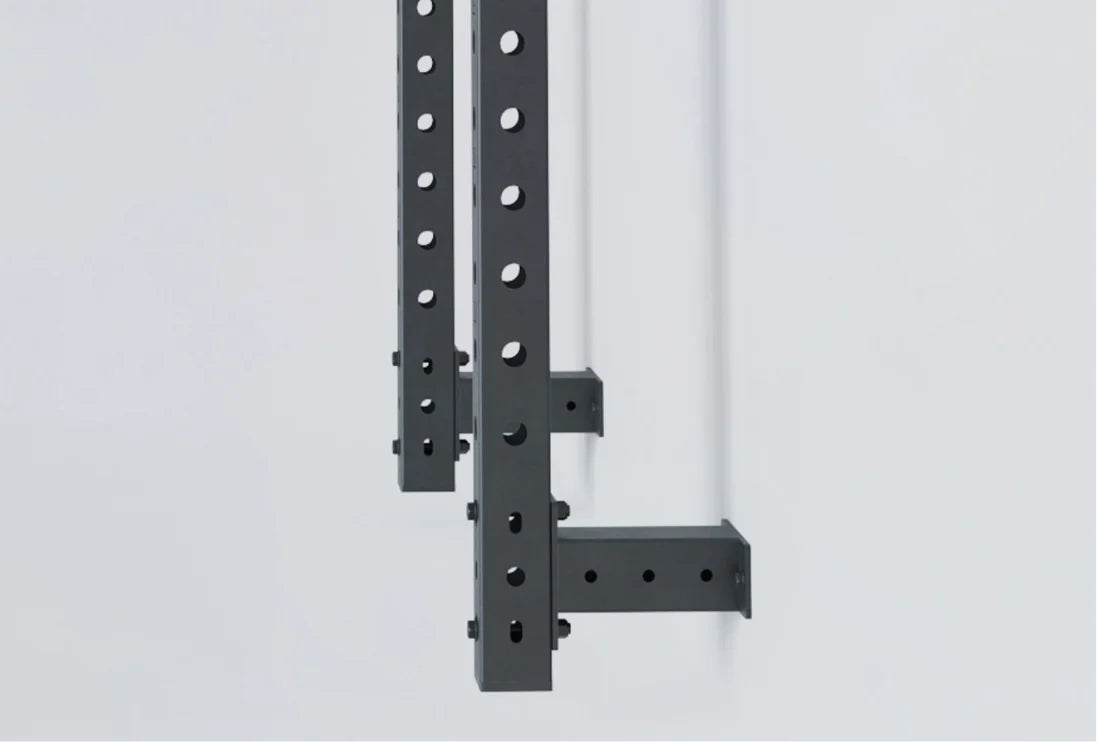

| R8 Wall Rack Uprights | 1x Pair |
| R8 Wall Rack Crossbars for wall mounting | 2x Pair |
| R8 Wall Rack Pull-Up Bar with bracket | 1x |
| R8 J-Hooks Type 1 | 1x Pair |
Warranty & Certification
| Basic Frame Warranty | LifeTime |
| Attachment Warranty | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
| Scheduled Freight Delivery | Email announcement with date selection |
| Assembly Time | 1h, 2-Person |
| Tools Required | Wrench set 13, 17, 19 |
Service & Return Policy
| Return Policy | 100 days after purchase |
| Return Process | Carrier pickup on preferred date |
Service Included
| Training Plan and Equipment Support | 1h Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
Customer Reviews
