Outdoor Racks Technology

The R8 Outdoor Series

Premium Power Racks for Any Weather

The Foundation for Safe Outdoor Training

Safe, long-lasting outdoor training starts with careful planning and, where needed, some groundwork.

The right ground anchoring depends largely on the soil conditions and its load-bearing capacity. Concrete, sand, or clay - what matters is that the equipment stands firm and secure. Sandy ground generally offers less hold than soil, while clay carries a higher load.

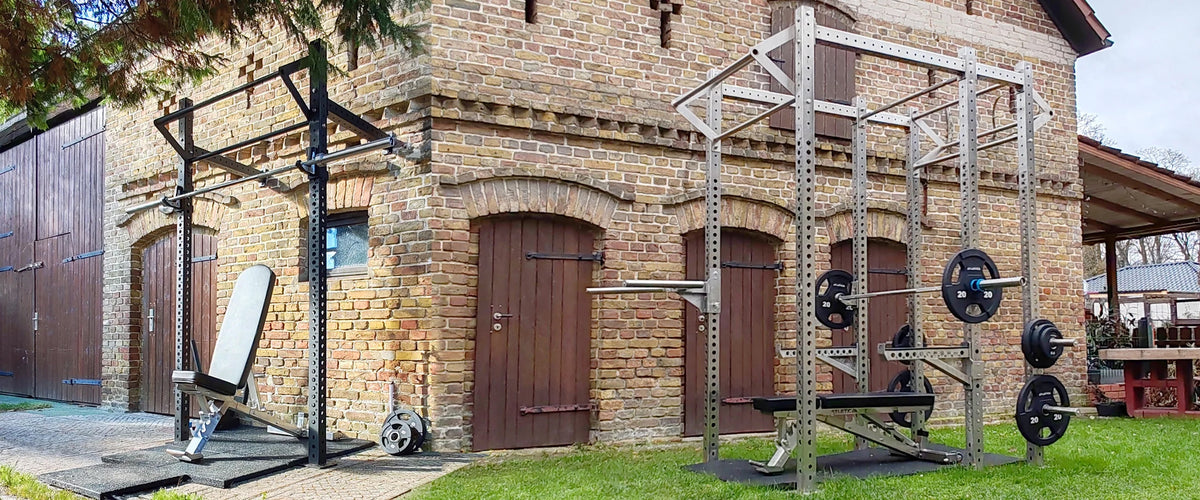

Beyond the ground itself, think about how the outdoor rack is oriented and how much clearance it has from walls or buildings. Since the rack is a new fixture in the yard, take extra care - especially in households where children move around freely outdoors.

Anchoring Options

Floor Anchor

Bolt Anchor

Skid Plates

Floor Anchor

For Grass, Soil, and Sand

Our ground anchors are a sturdy hot-dip galvanized and powder-coated steel frame that can either be set into a concrete footing or buried directly in firm ground.

Burying Directly in the Ground

If you go with direct burial, make sure the ground is extremely firm so the anchor holds securely. We recommend digging the hole with a post hole digger (clamshell digger).

Step-by-Step Guide to Burying the Anchors

Measure the spacing: The distance between the holes has to be measured precisely. In practice it works best to go post by post. Pick the spot where you want the rack, then set the first ground anchor.
Dig the hole: Dig the hole so the ground anchor fits snugly, with as little play as possible from the start.
Align the anchor: Set the anchor plumb and level.
Backfill and compact: Fill the excavated soil back into the hole. Water the soil in as you go and compact it (with a block of wood, for example) to reach maximum firmness.
Attach the upright: Bolt the first upright down.
Measure to the next upright: Hold a crossbar at the bottom to find the correct spacing to the next upright.
Align the posts: Make sure the posts are vertical.
Tighten the nuts: Do not fully tighten the nuts on the ground anchors until the entire outdoor rack is standing, so you still have room to make corrections.

Setting in Concrete Footings

If you want to set the ground anchors into concrete footings, the process is similar. Fast-setting or general-purpose concrete mix works well here. For details on the footings, see the section on wedge anchors.

Safety Note

Check the anchors regularly for looseness or damage.

Bolt Anchor

For Concrete Floors and Footings in Sand and Soil

Want to anchor your ATLETICA Outdoor Rack to a concrete floor or into sand or soil? Then our wedge anchors are the right choice. They are built for heavy loads and give you dependable anchoring.

How They Work

Wedge anchors work by expanding mechanically inside the drilled hole. As you tighten the nut, a sleeve expands and locks the anchor into the concrete.

Installation

Installation could not be simpler:

Drill: Drill a hole into the concrete floor with a 5/8" (16 mm) masonry bit.
Insert: Insert the wedge anchor into the hole.
Tighten: Tighten the nut with an 18 mm (11/16") wrench.

Important notes:

Keep enough distance from the edge of the concrete so you get the full load rating and do not damage the slab.
For sand or soil, you will need to pour footings.

Footings in Sand or Soil

R8 Outdoor Rack with 4 or more posts: Footings at least 12"x12" and 20" deep.
Free-standing 2-post Outdoor Rack (e.g. "R8 Jade"): Footings 16"x16" and 24" deep.

You need 4 wedge anchors per upright (post).

Details

Dimensions: M12 × 90 mm (≈ 1/2" × 3-1/2"), 18 mm (11/16") wrench size, 5/8" (16 mm) sleeve diameter
Material: 304 stainless steel
Tools required: 5/8" (16 mm) masonry bit and drill/hammer drill, hammer to drive the anchors, 18 mm (11/16") wrench

Skid Plates

The Solution for Every Surface

Looking for a simple way to stabilize your R8 Magma Outdoor Power Rack or a custom rack configuration with a 43"x43" base footprint? Then our skid plates are exactly what you need.

Benefits

Stability: The hot-dip galvanized, double powder-coated ballast plates keep your rack planted.
Flexibility: Ideal for any surface, whether grass, soil, walkway slabs, pavers, or concrete.
Easy assembly: The uprights simply thread into the skid plates from above.
No drilling required: Perfect if you do not want to damage the floor, or cannot.
Preset spacing: The skid plates set the spacing of the uprights, which makes assembling the rack easier.

Dimensions

91"x9"
Material thickness: 7/16" (11 mm)

Assembly

Pick the spot: Place the skid plates where you want them outdoors.
Align: Line the plates up parallel to each other. The spacing between the plates has to be 37" (inside edge to inside edge).
Attach the uprights: Thread the uprights into the skid plates from above.

Tip

You can still adjust the position of the skid plates slightly while you are assembling the rack.
