ARC Force | R8 Jammer Arms
Variable resistance curve depending on the exercise | either free or guided movement | easy height adjustment | 2 Weight Pins per arm

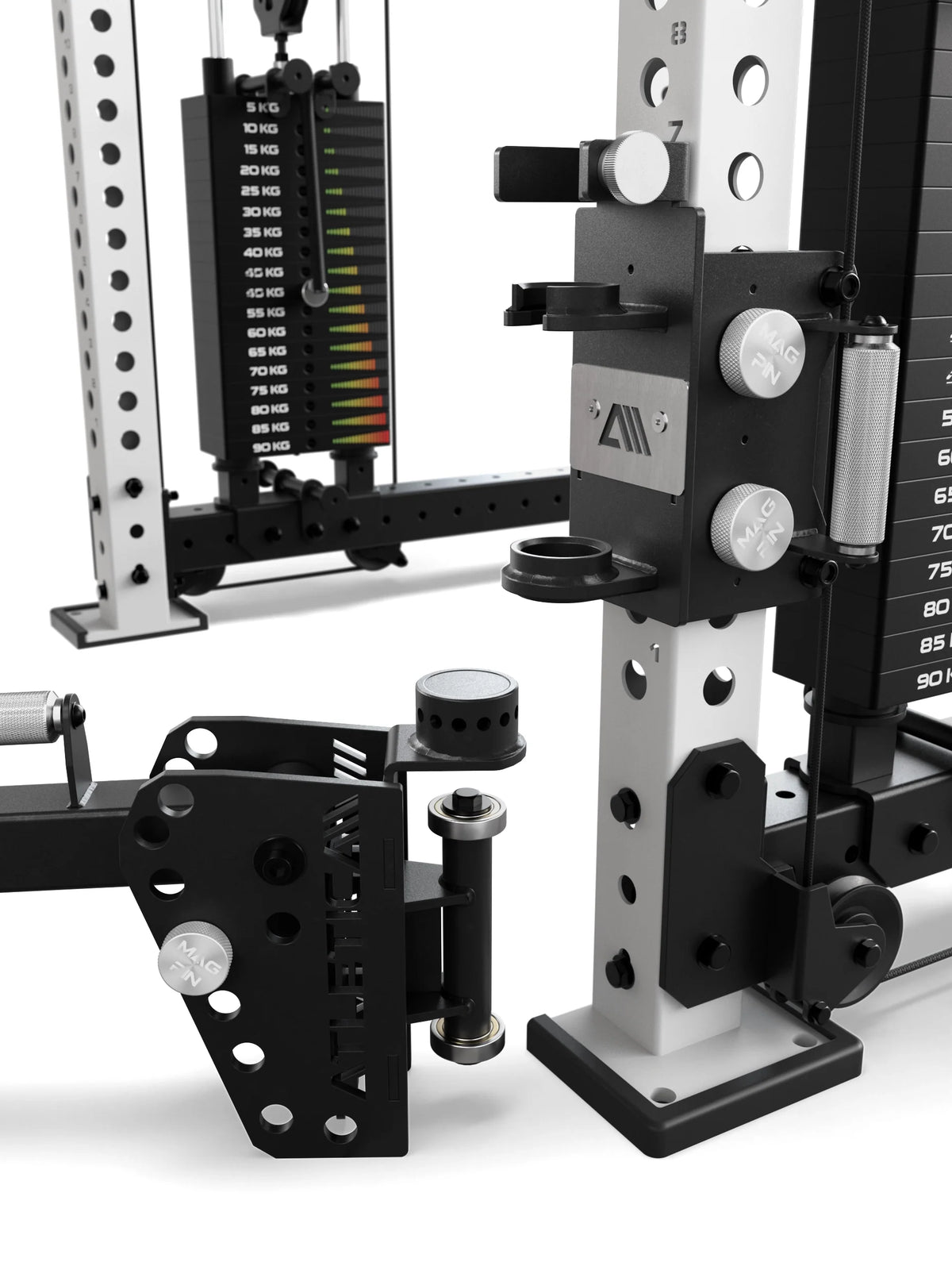

R8 Jammer Arms with Adjustable Resistance Curve
- Fits all R8 Power Racks
- Adjustable weight arm with a 180° rotation range
- Mounting possible at the front and rear of the Jammer Arm
- Adjustable resistance curve depending on the exercise
- Optimized force curve for push and pull movements
- Effective training for chest press, shoulder press, rows, and more
ARC Technology – Adjustable Resistance Curve
- Maximum control over resistance and movement path
- ARC Technology enables an individually adjustable resistance curve directly on the machine
- Designed to precisely adapt force profiles to every exercise and every movement
- ATLETICA technology for targeted control of resistance and movement profile
- The basis for a new generation of training equipment with machine-like biomechanics
Free or Guided Movement
- Lockable movement path via knurled screw
- Choice between free and guided movement
- Convergent or parallel movement adjustable
- Individual adaptation to biomechanics and exercise
- Machine-like training directly on the rack
Precise Adjustment & Control
- 9-hole system for defining the starting position
- Fine adjustment via 0.8" (20 mm) Mag Pin
- Adjustable weight arm with 5 usable positions
- Quick adjustment without tools
- Maximum control over movement angle and starting point
Maximum Grip & Training Variety
- Up to 6 different grip variations depending on the setup
- Ø 1.25" (32 mm) knurled grips for a secure hold
- Quick adjustment via large knurled nuts
- 2 weight pins per arm for flexible loading
- Ø 2" (50 mm) sleeves for Olympic weight plates

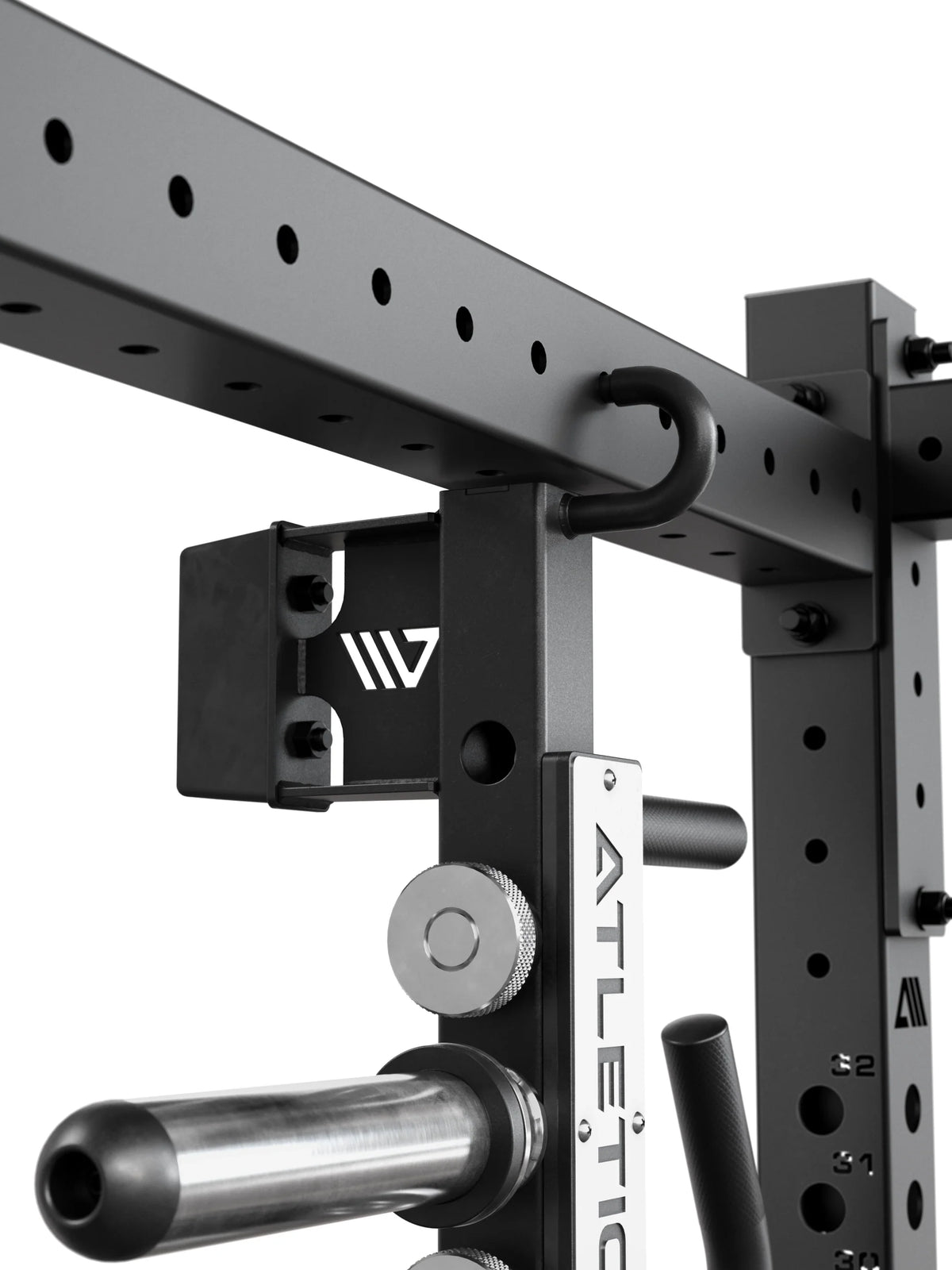

Solid Construction & Premium Materials
- Double ball-bearing mount for low-friction movement
- Solid steel construction, up to 5/16-inch material thickness
- Lever arm with 2"x2" 8-gauge profile, lightweight yet highly load-bearing
- UHMW plates to protect the uprights
- Zero-play fixation via an additional locking screw on the holder
- Stainless steel logo with a precise laser-cut finish
Intuitive Adjustment & Space-Saving Storage
- Tool-free height adjustment via two 1" (25 mm) Mag Pins each
- Jammer Arms easily removable from the holder
- Nearly weightless adjustment of the holder
- Integrated storage hooks with a safety pin
- Space-saving storage directly on the rack
Dimensions
| Length | 35" (lever arm) |
|---|---|
| Net Weight | 50 lb (Jammer Arm without holder) |
| Color | R8 Black |
Material & Construction
| Steel type | Steel Alloy |
|---|---|
| Square tube | 2" x 2" (50 x 50 mm) |
| Metal thickness | Lever arm 8-gauge, holder 1/4" or 5/16" steel |
| Coating | Double powder-coated |
Warranty & Certification
| Attachment device guarantee | 5 years |
|---|
Delivery & Assembly
| Shipping | Freight delivery |
|---|---|
| Appointment | Email announcement with date selection |
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Carrier pickup on preferred date |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
Accessories
| ARC Force | R8 Jammer Arms | 1x Pair |
|---|---|
| Weight Pins | 4x |
