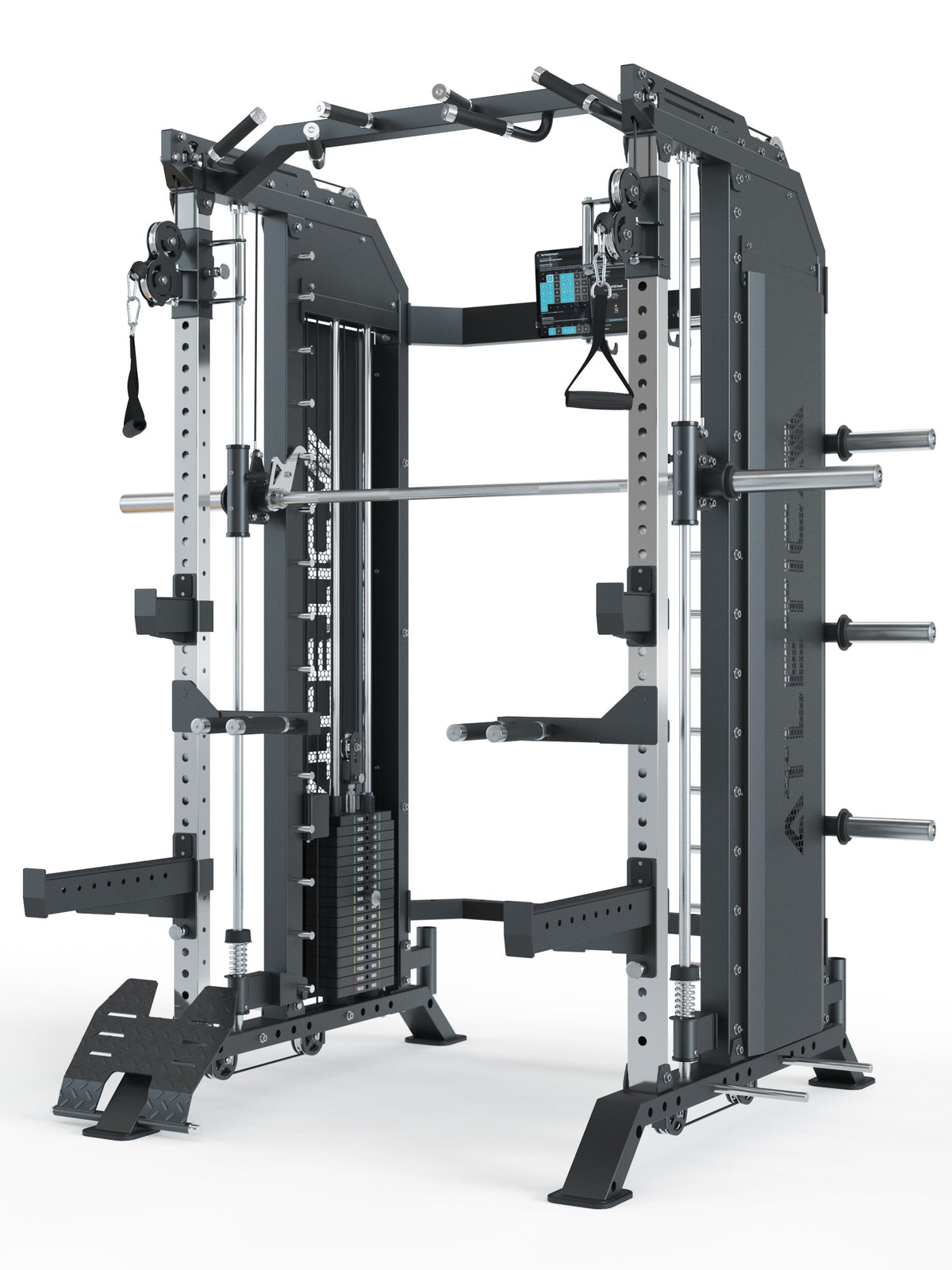

Hellraiser | All-in-One Trainer PRO
Commercial-Grade Quality | Smith Machine Counterbalanced | Stainless Steel Components | Many Optional Attachments | Certified to EN ISO 20957
Hellraiser | All-in-One Trainer PRO
Sale Price$4,489.00
Product Features
This commercial gym-grade all-in-one trainer expands into a true all-in-one machine thanks to unique attachments.
Smart device holder and extensive accessories included
- Adjustable smart device holder for smartphones/tablets on the upper crossbar
- Direct access to the ATLETICA app with over 600 workouts featuring audio and video instructions

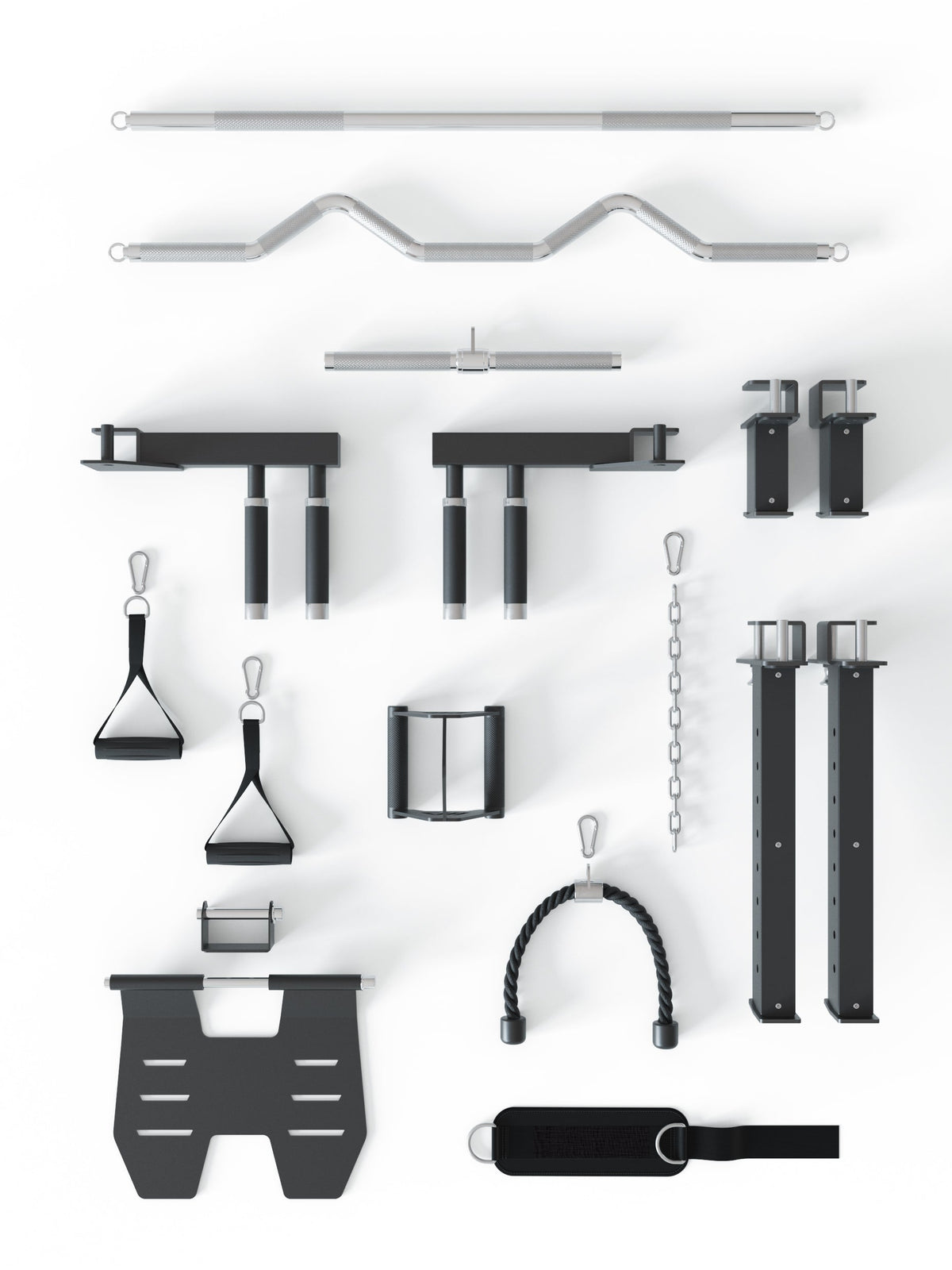

- Accessories included: 2x dual pull bar (straight & EZ), short pull and curl bar, J-Hooks, safety spotter, dip bars, rowing handle, triceps rope, foot strap, extension chain, low row foot plate, vertical barbell holder, horizontal storage system
Counterbalanced Smith Machine with linear bearings
- Counterbalanced — the bar is weightless without plates for precise adjustment
- Stainless steel construction, compatible with 50mm plates
- Laser-cut hooks for safe, precise racking of the Smith Bar
- High-quality linear bearings on stainless steel guide rods
- Includes band pegs for variable resistance curves
Dual cable pulley with 2x 200 lb weight stacks
- Weight increments in 10 lb steps, 2:1 cable ratio
- Incremental increase of 5 lb — ideal for small muscle groups
- 22 numbered positions, 180° swiveling double-pulley system
- Ball-bearing aluminum cable pulleys for a silky-smooth glide
Power Rack for intensive free-weight training
- Front uprights made of scratch-resistant, rust-free stainless steel — 2.75"x2" 11-gauge material
- Total load capacity 1,100 lb
- J-Hooks and safety spotter positionable at 35 heights
- Interior dimension 43" — fits all common Olympic barbells
- 3 rubberized pull-up grips for pull-ups, calisthenics and ab training
Optionally available accessories
- Lat Pulldown Extension & Seat
- Rack Knee Holder
- Monolifts
Belt Squat Attachment (optional)
- Back-friendly alternative to the squat with the same training intensity
- Simply slotted onto the rear crossbar and secured with a quick-release
- Folds up after training to save space
- Lever arm 47", 2.75"x2" profile, 11-gauge — compatible with all 50mm plates
Hip Thrust / Nordic Curl Attachment (optional)
- Mounted to the front uprights via pin and locking lever
- Hip thrusts: effective training for the glutes, hamstrings, quadriceps and lower back
- Nordic hamstring curls: one of the most effective exercises for the posterior thigh chain
Hellraiser Jammer Arms (optional)
- Cable pulleys run past the Jammer Arms — guide pulleys positionable above and below
- Cable pulleys can be attached for pulling and pressing exercises with the weight stacks
- Linear resistance curve — simulates chest press, shoulder press or lat pulldown
Item ID
| SKU | 111-0118 |
| EAN | 4262577711345 |
Specifications

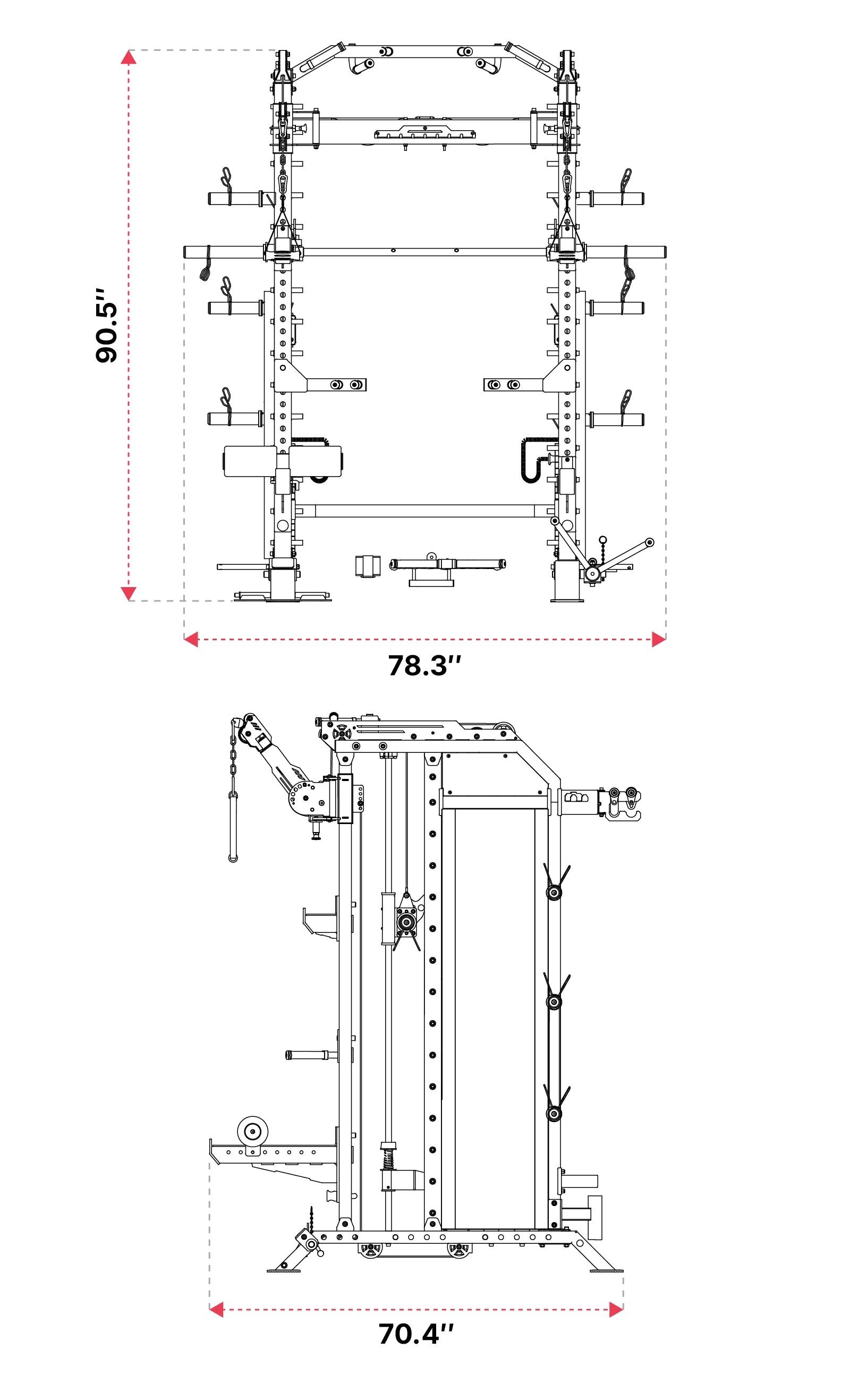

Dimensions & Footprint
| Height | 91" |
| Width | 78" (incl. Smith Machine) |
| Depth | 70" |
| Net Weight | 865 lb |
Load Capacity
| Smith Machine | 880 lb |
| Power Rack | 1,100 lb |
| Cable Pulley | 550 lb |
| J-Hooks and Safety Spotter | 550 lb each |
Bore & Compatibility
| Numbering | Lasercut |
| Weight Plate Compatibility | Diameter of the weight plate sleeves Ø50mm |
Base Frame
| Steel Type | Alloy Steel I front uprights in stainless steel |
| Square Tube | 50x70mm |
| Steel Thickness | 14-gauge |
| Coating | Double powder coating |
| Corrosion Resistance | Zinc Alloy |
Hole Pattern & Compatibility
| Hole (Pin) | 21mm hole diameter in the upright |
| Hole Spacing | 50mm |
| Numbering and Scaling | Laser-cut |
| Weight Plate Compatibility | Ø50mm |
Cable Pulley
| Weight Stack Segmentation | 2x200 lb |
| Pulley Ratio | 2:1 |
| Cable Pulleys | Aluminum |
| Pulley Bearing | Ball Bearing |
| Cable | Quadruple-sheathed steel cable |
| Cable Pull Rotation | 180° |
| Vertical Adjustment | 22-way |
Policies & What's Included
Attachments/Accessories
| Hellraiser All-in-One Trainer PRO | 1x |
| Accessories | Smart device holder, 2x dual pull bar (1x straight, 1x SZ-shaped), short pull and curl bar, J-Hooks, Safety Spotter, dip bars, parallel row handle, triceps rope, foot strap, extension chain, low row footplate, vertical holder for one Olympic barbell, horizontal storage system for the pull bars behind the all-in-one trainer |
Warranty & Certification
| Basic Frame Warranty | LifeTime |
| Attachment Warranty | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
| Scheduled Freight Delivery | Email announcement with date selection |
| Assembly Time | 2h, 2-Person |
| Tools Required | Wrench set 13, 17, 19 |
Service & Return Policy
| Return Policy | 100 days after purchase |
| Return Process | Carrier pickup on preferred date |
Service Included
| Training Plan and Equipment Support | 1h Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
