11 sq ft MaxProtect Gym Flooring 20 mm (3/4") | 39"x39"
Fine-grain surface | Interlocking composite system | Two protective layers plus Air-Cushion damping | 20 mm (3/4") thickness | Optionally in 39"x39" or 20"x20"

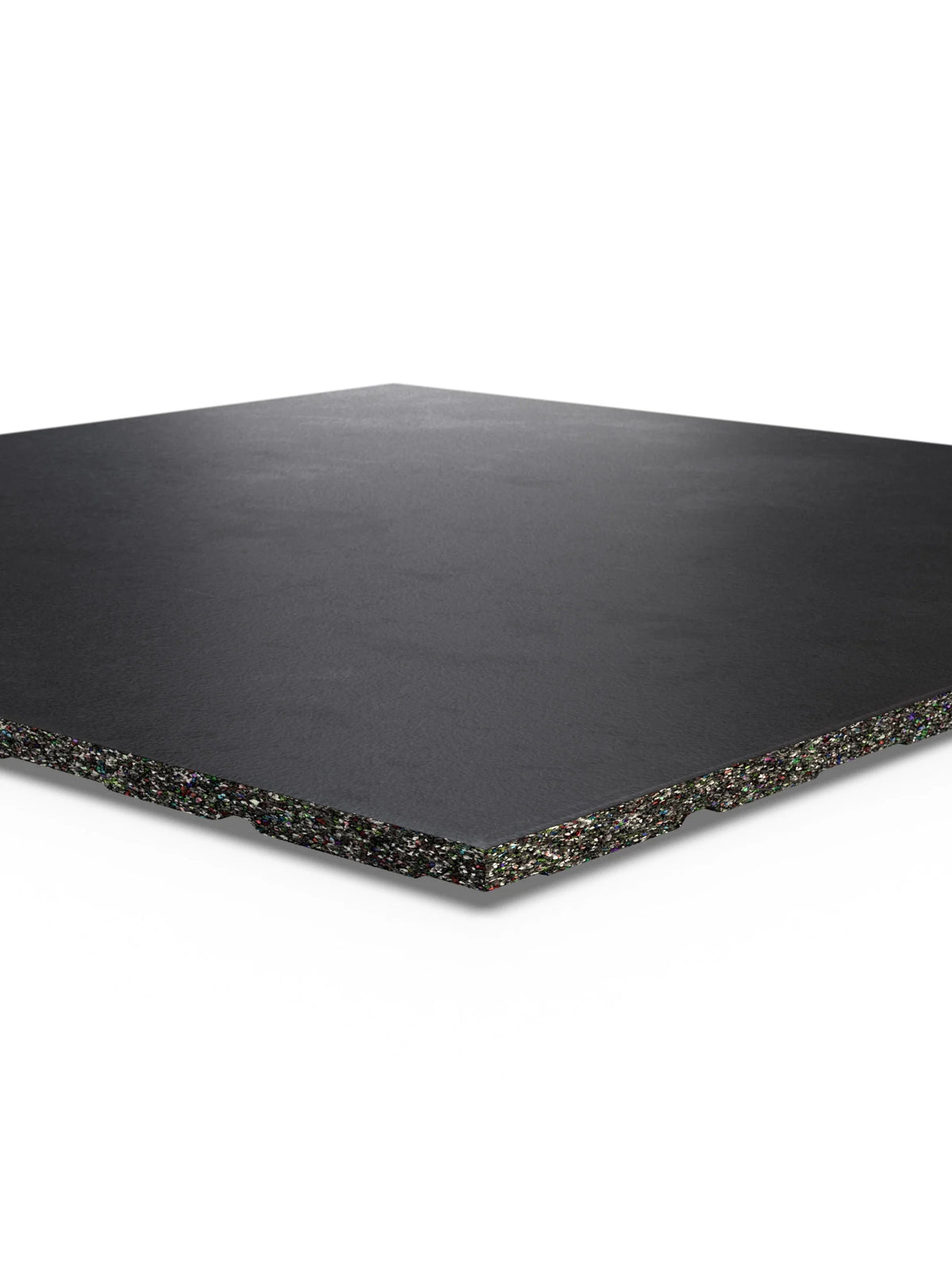

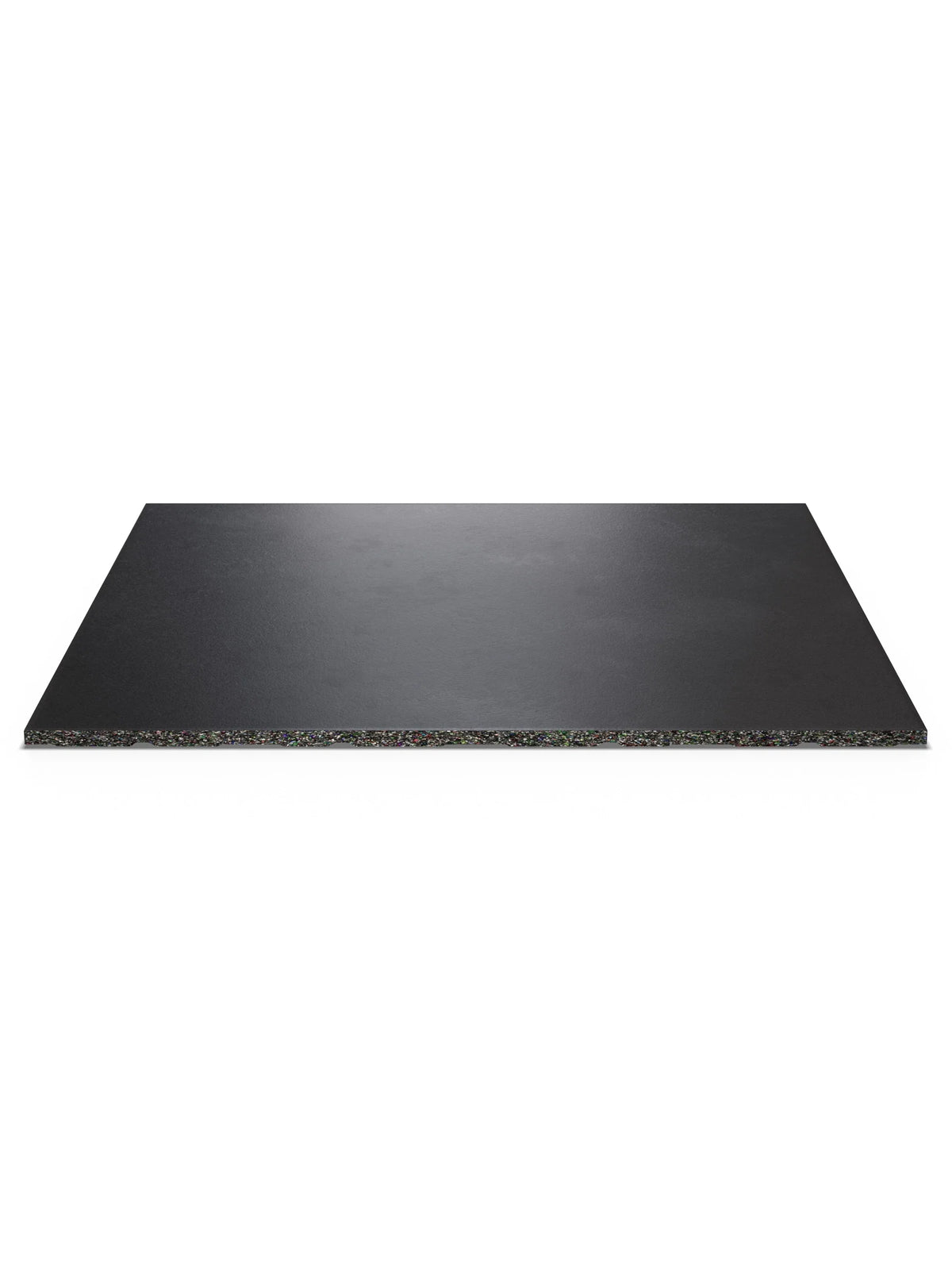

Two protective layers
AirCushion Technology
MattConnect System

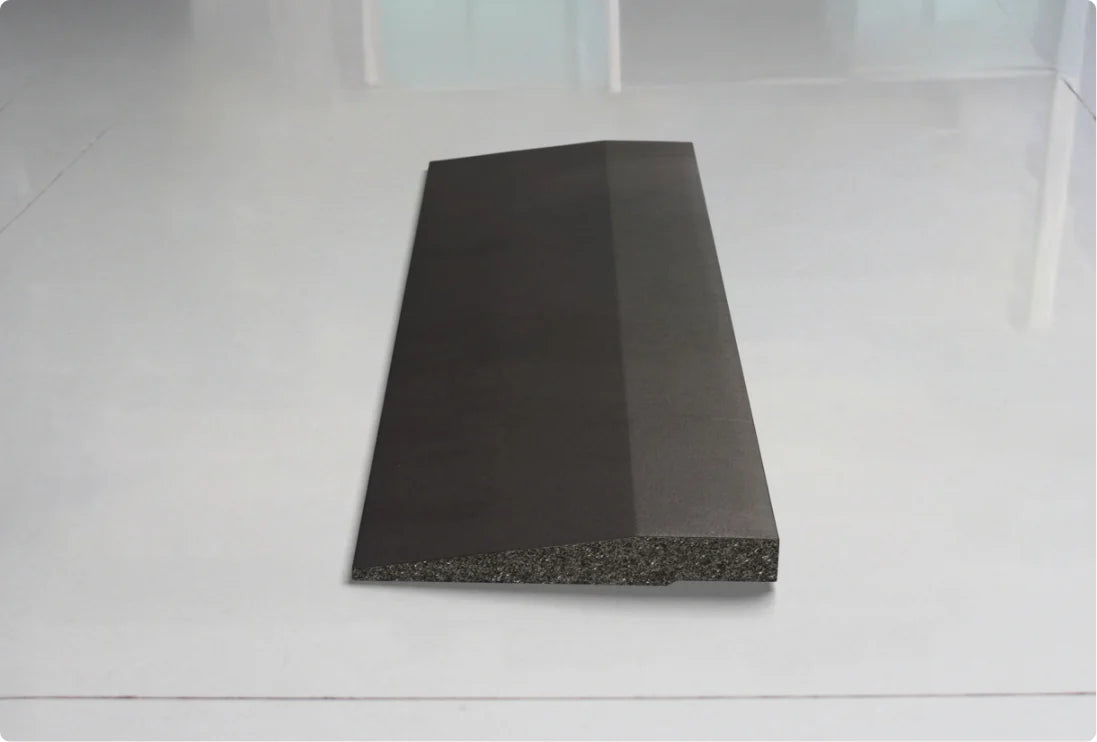

Safe transitions

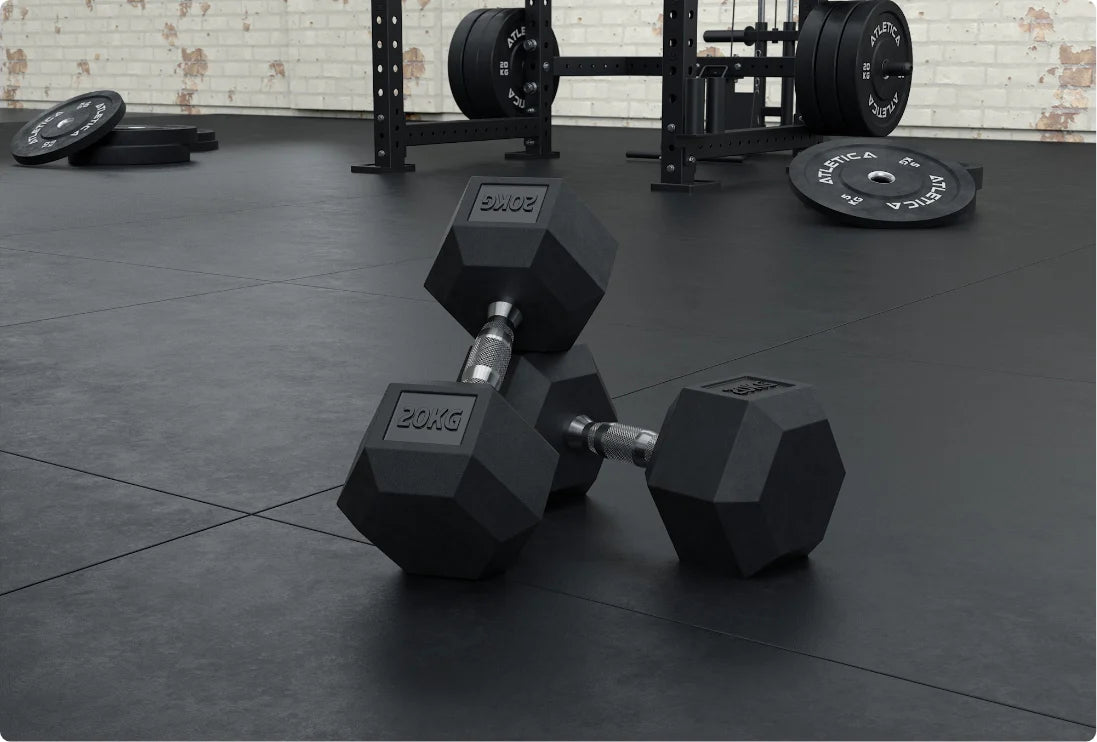

Optimal gym flooring
Note: Corner and edge pieces are not included — please add them separately if needed.
11 sq ft MaxProtect Gym Flooring 20 mm (3/4") | 39"x39"
- Strong, safe, versatile - gym flooring for the highest demands
- Odor-free thanks to 100% natural rubber
- Tested for harmful substances by the three leading institutes in Germany

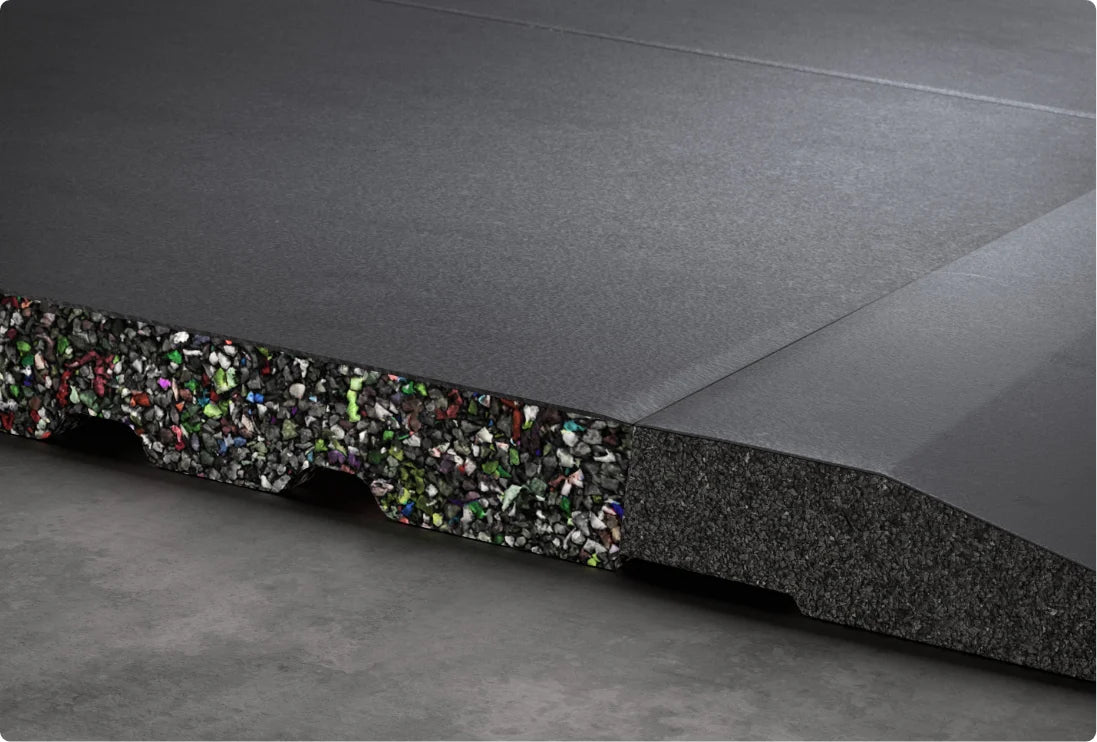

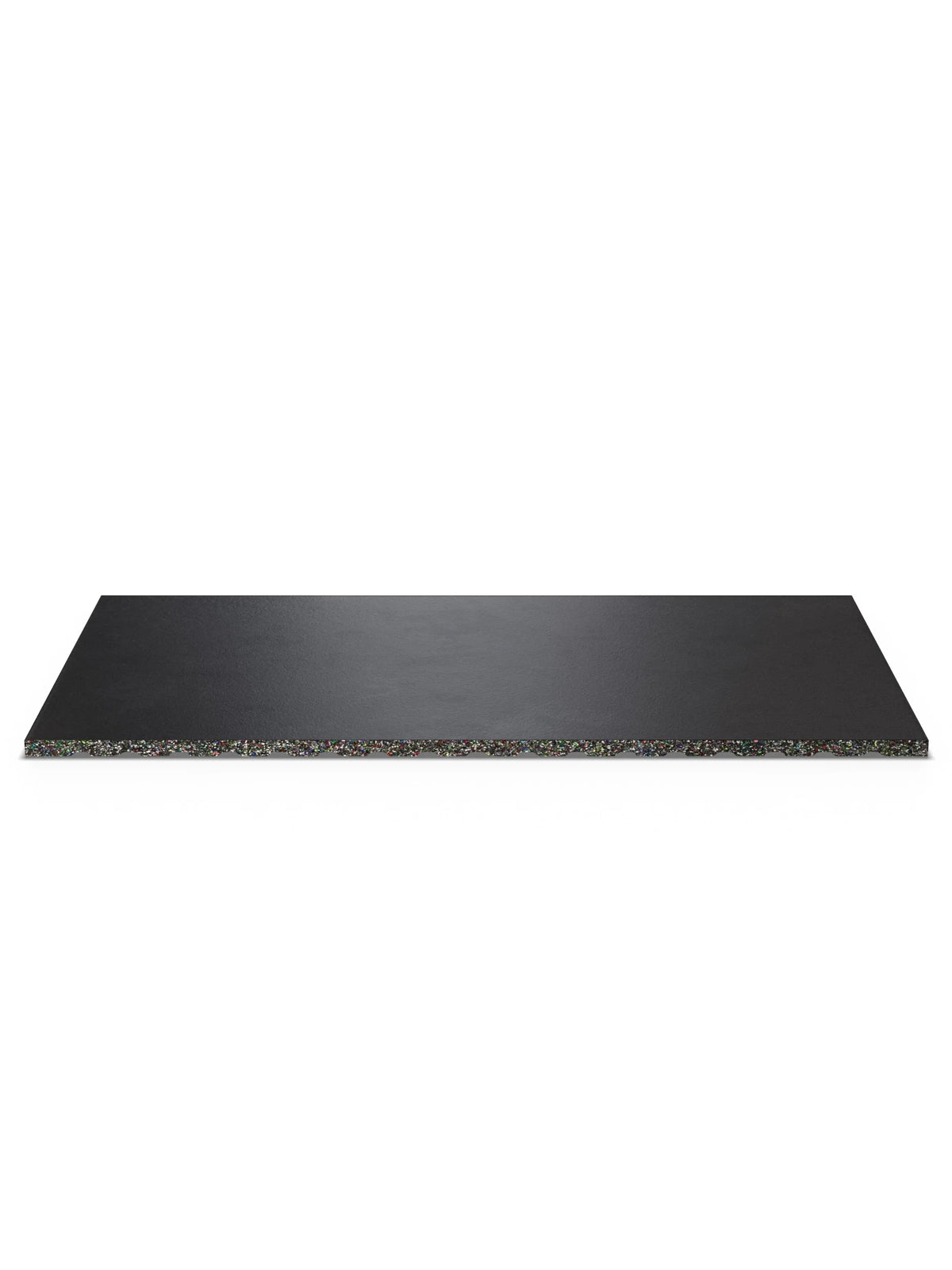

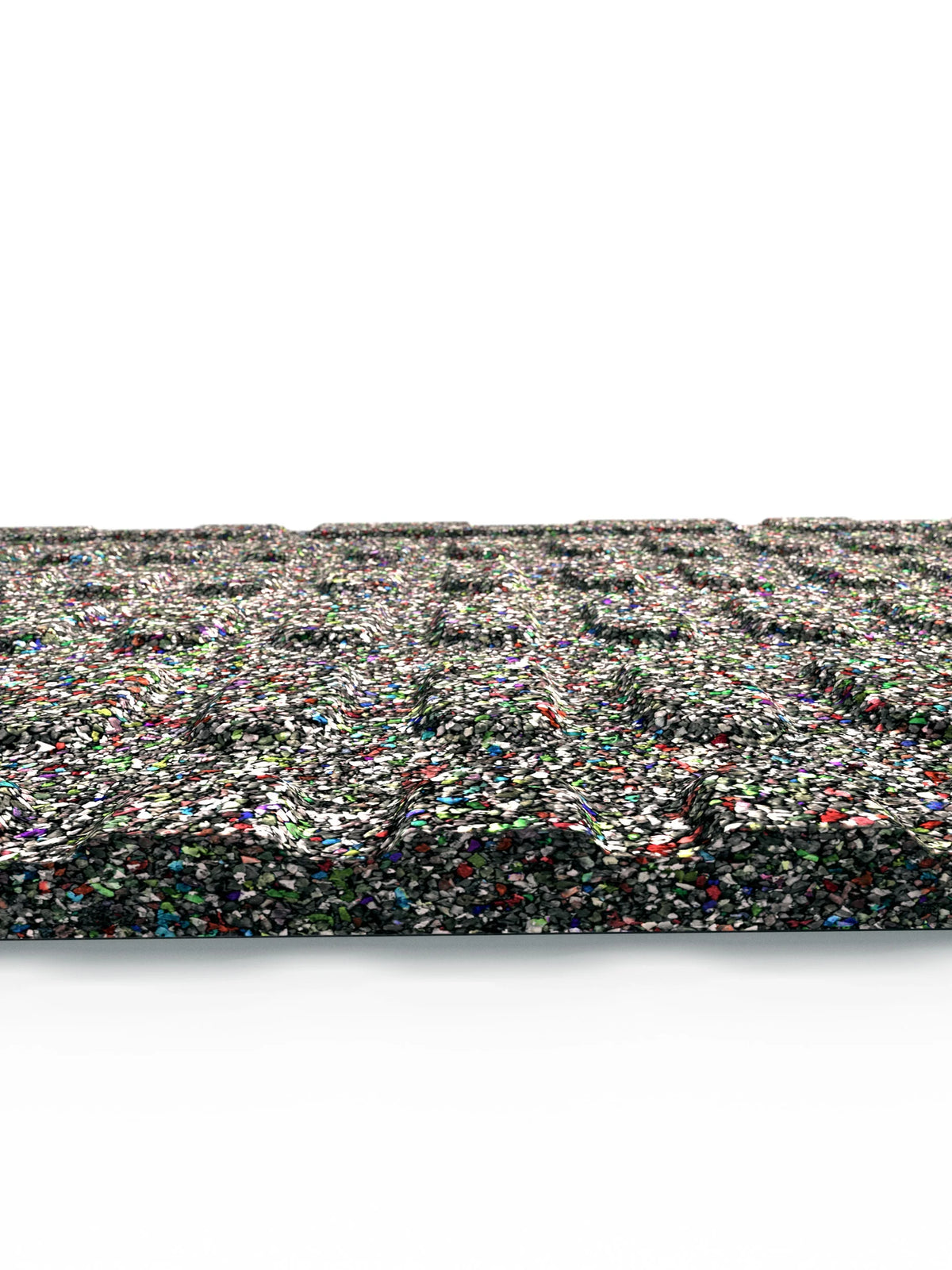

Verifiable with test reports - Layer 1: EPDM rubber, 2 mm thick fine granules for firm grip and a high-quality look

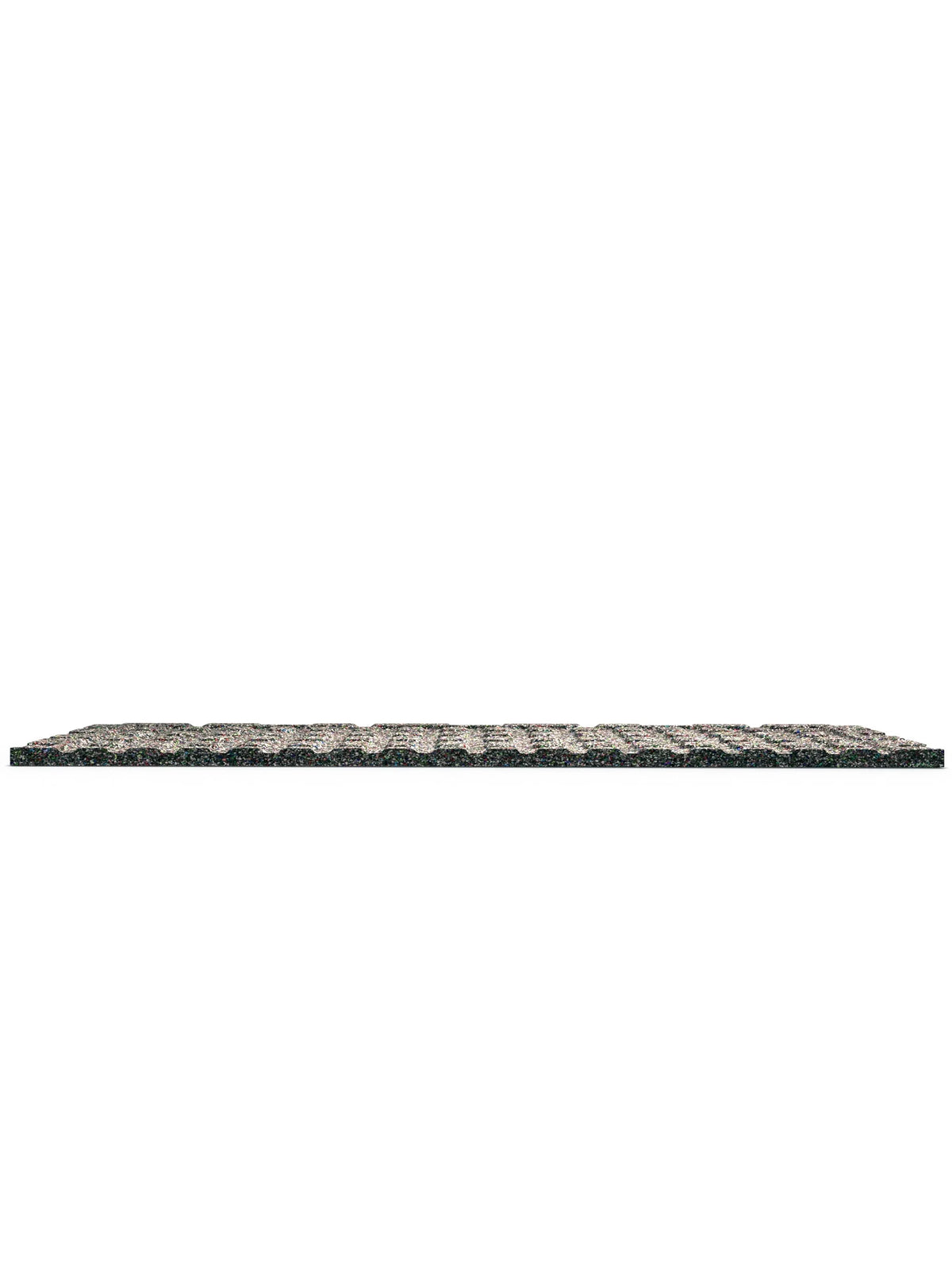

- Layer 2: 1/2" (13 mm) to 0.9" (23 mm) thick coarse granules (depending on version) for high cushioning and noise reduction

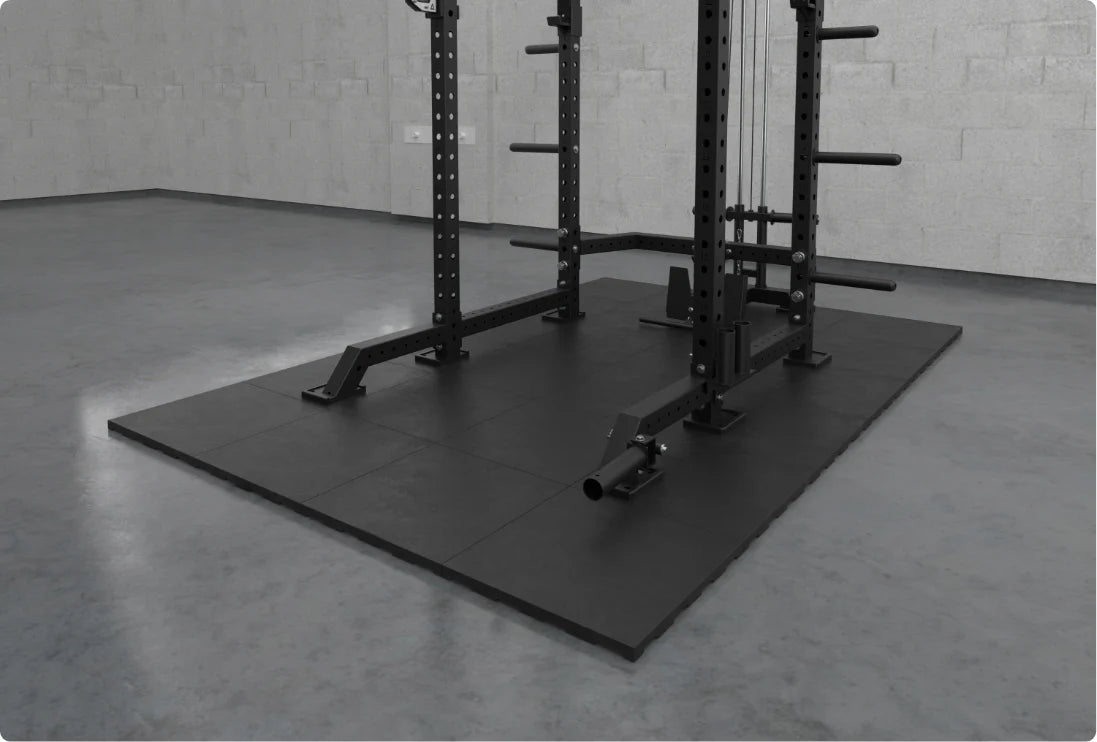

AirCushion with additional air channels
- In addition to the SolidProtect mat, equipped with MattConnect and AirChannel technology

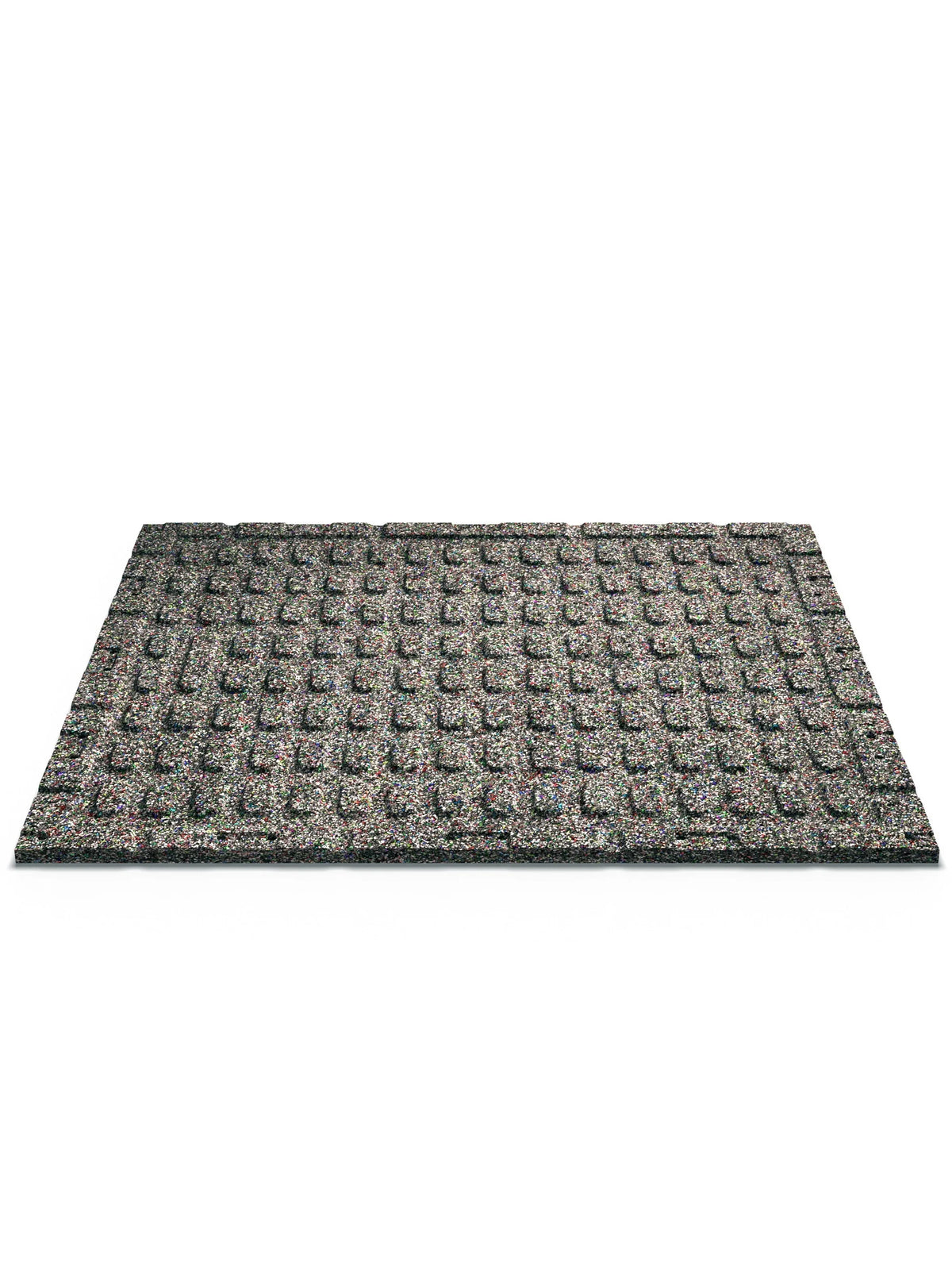

- AirCushion technology with round air channels provides: additional shock absorption of the weight during drops, ventilation of the mat underside and noise reduction

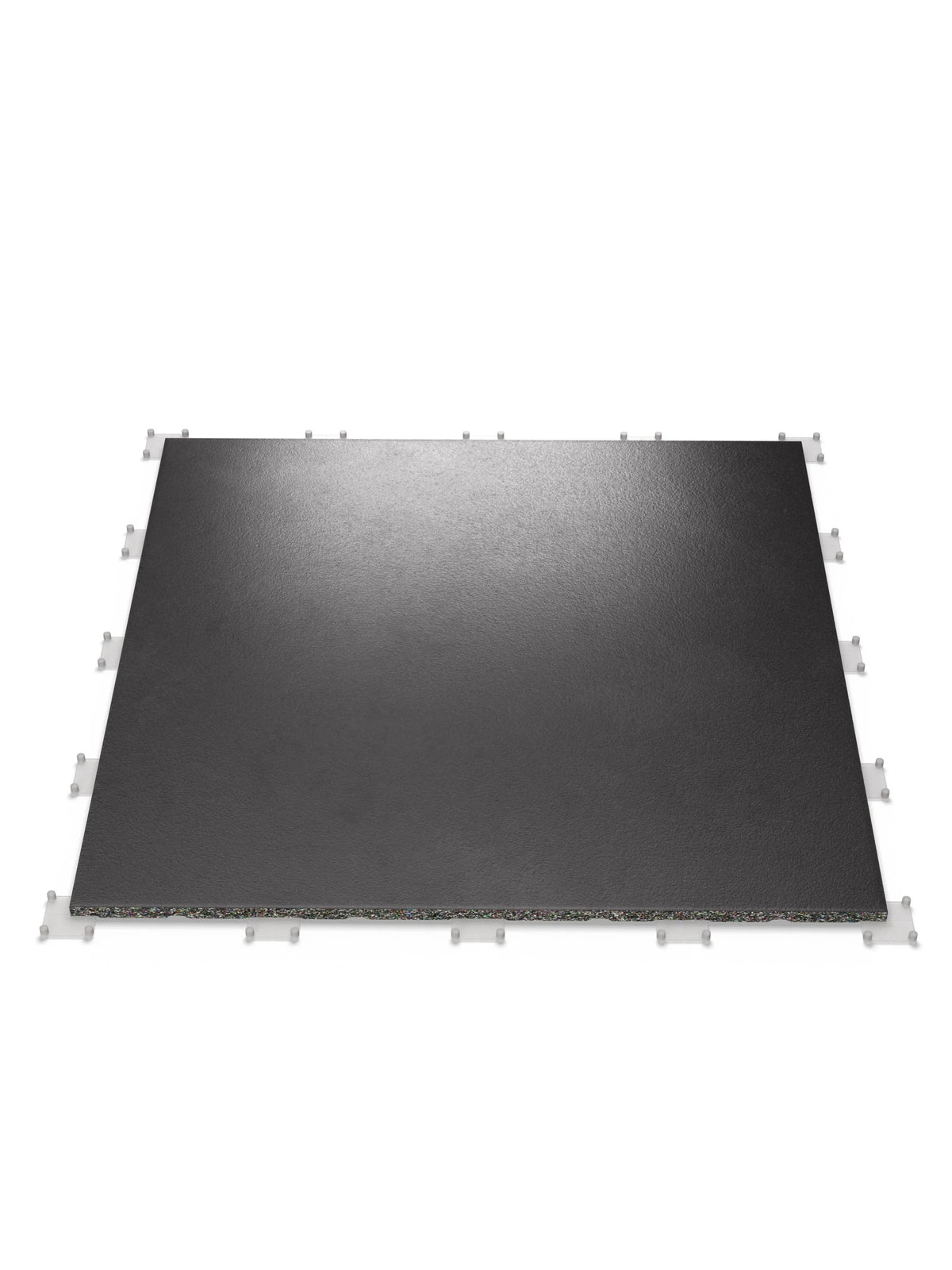

MattConnect: Rock-solid hold for your floor

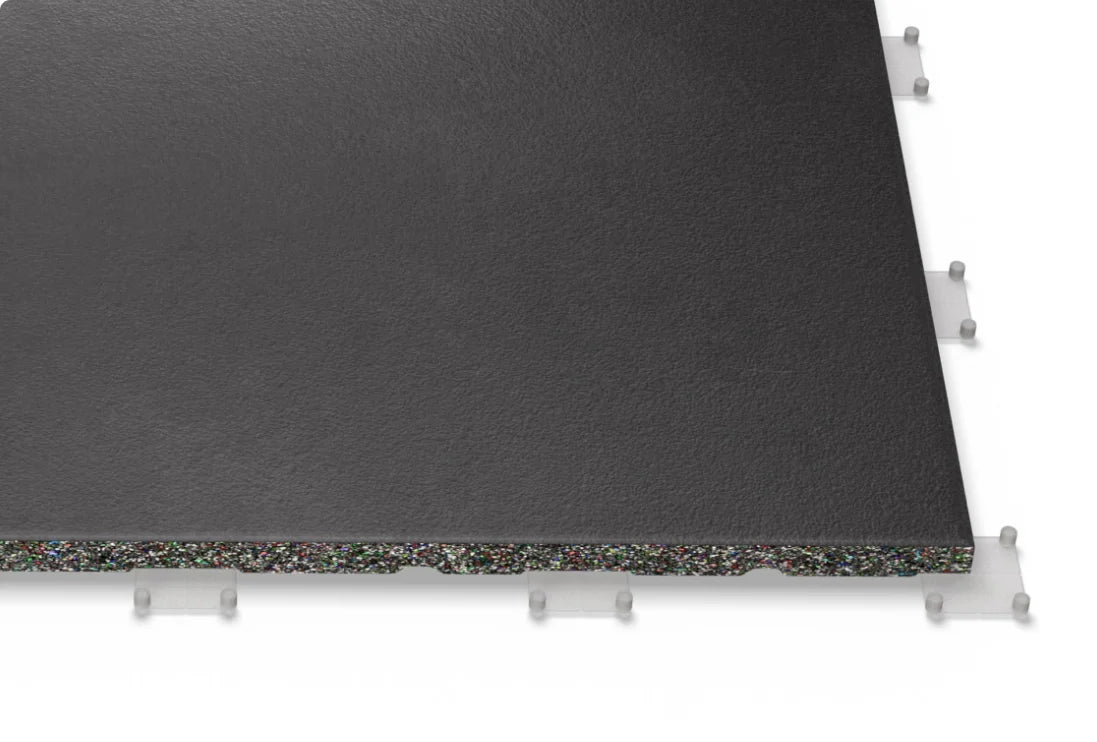

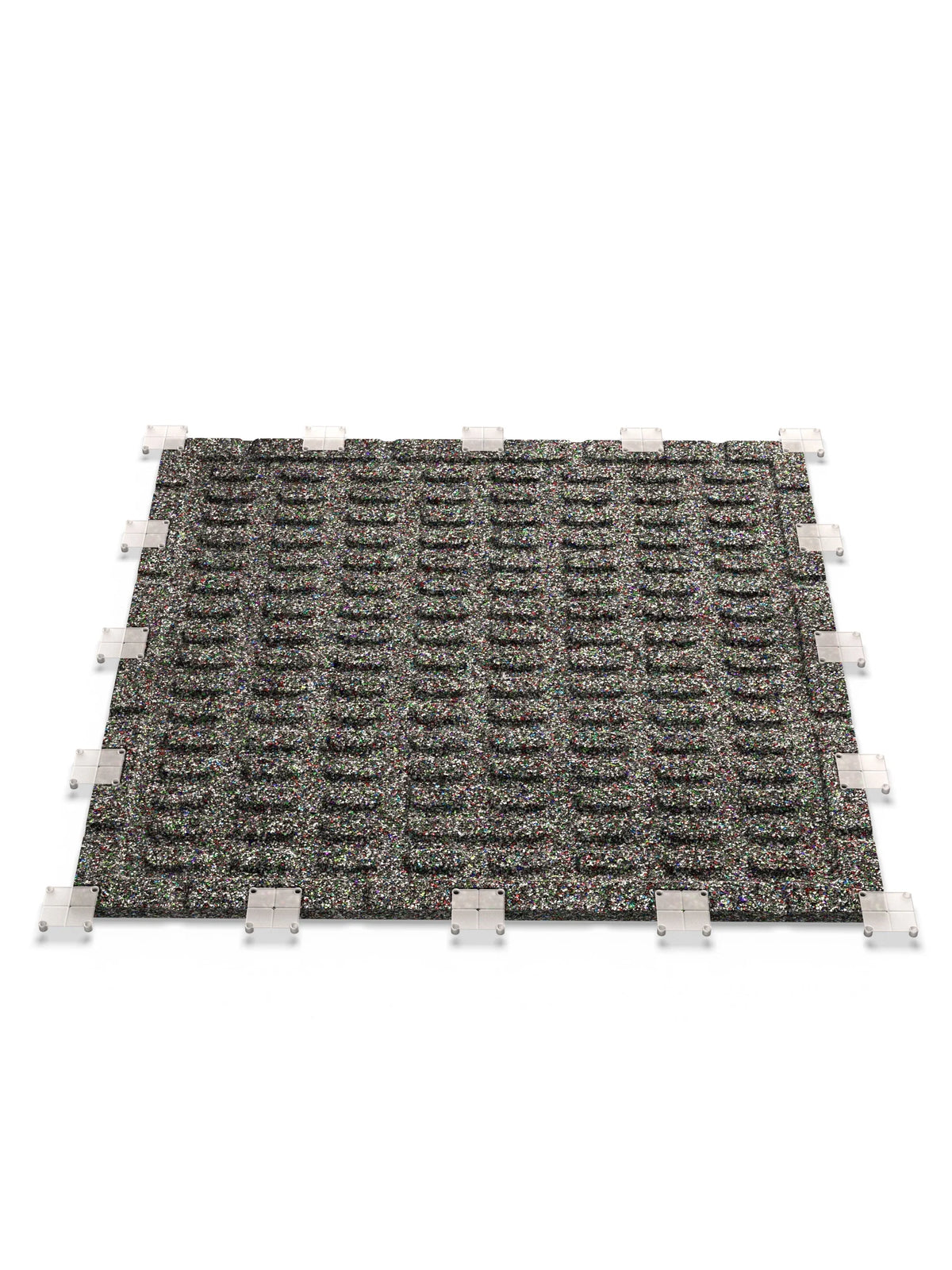

- MattConnect: 16 plug connections per mat ensure a matrix bond across the entire gym flooring
- Invisible from above, the fixing elements hold the tiles together
- They prevent the mats from slipping, even when moving equipment across the training area

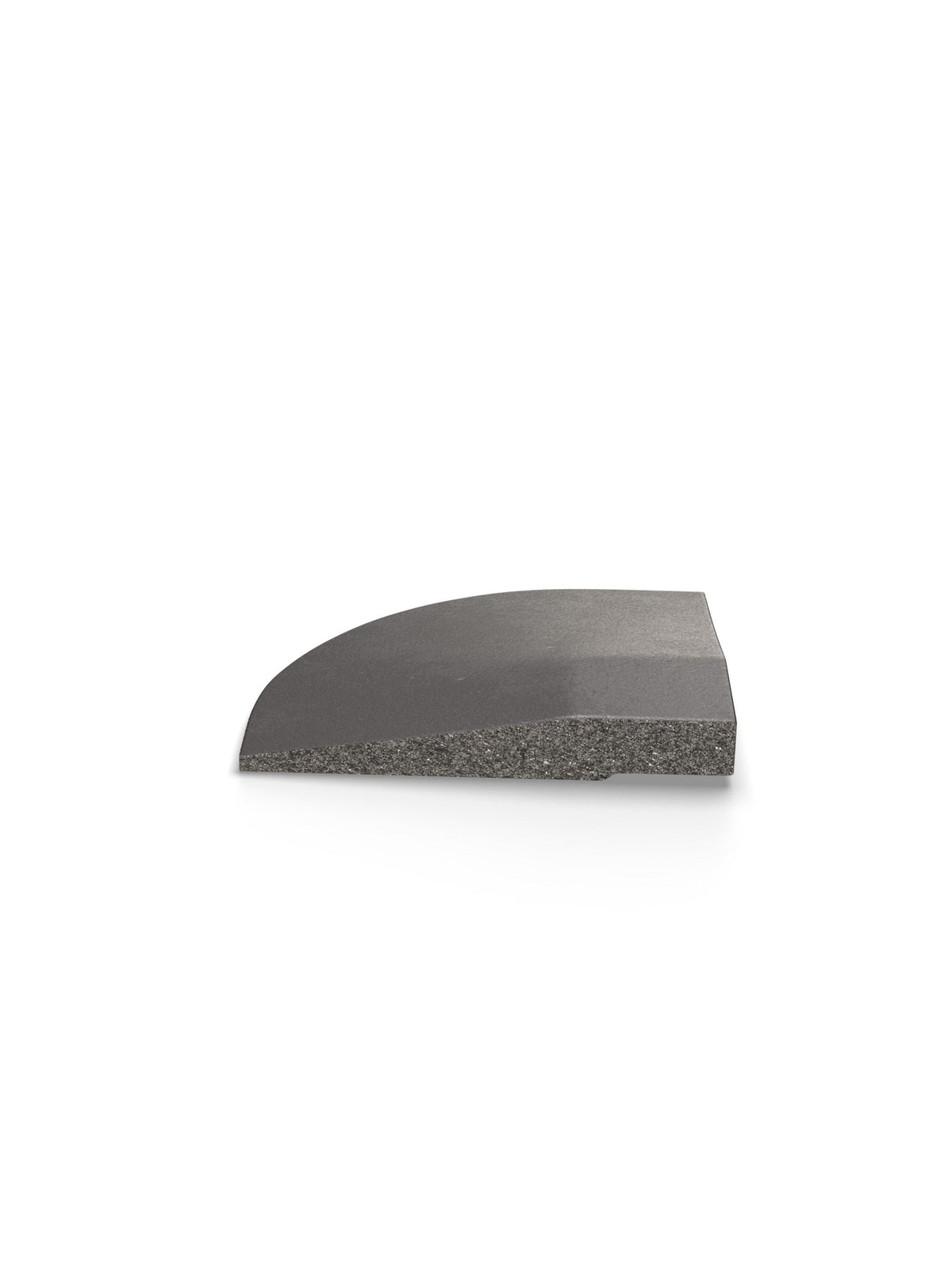

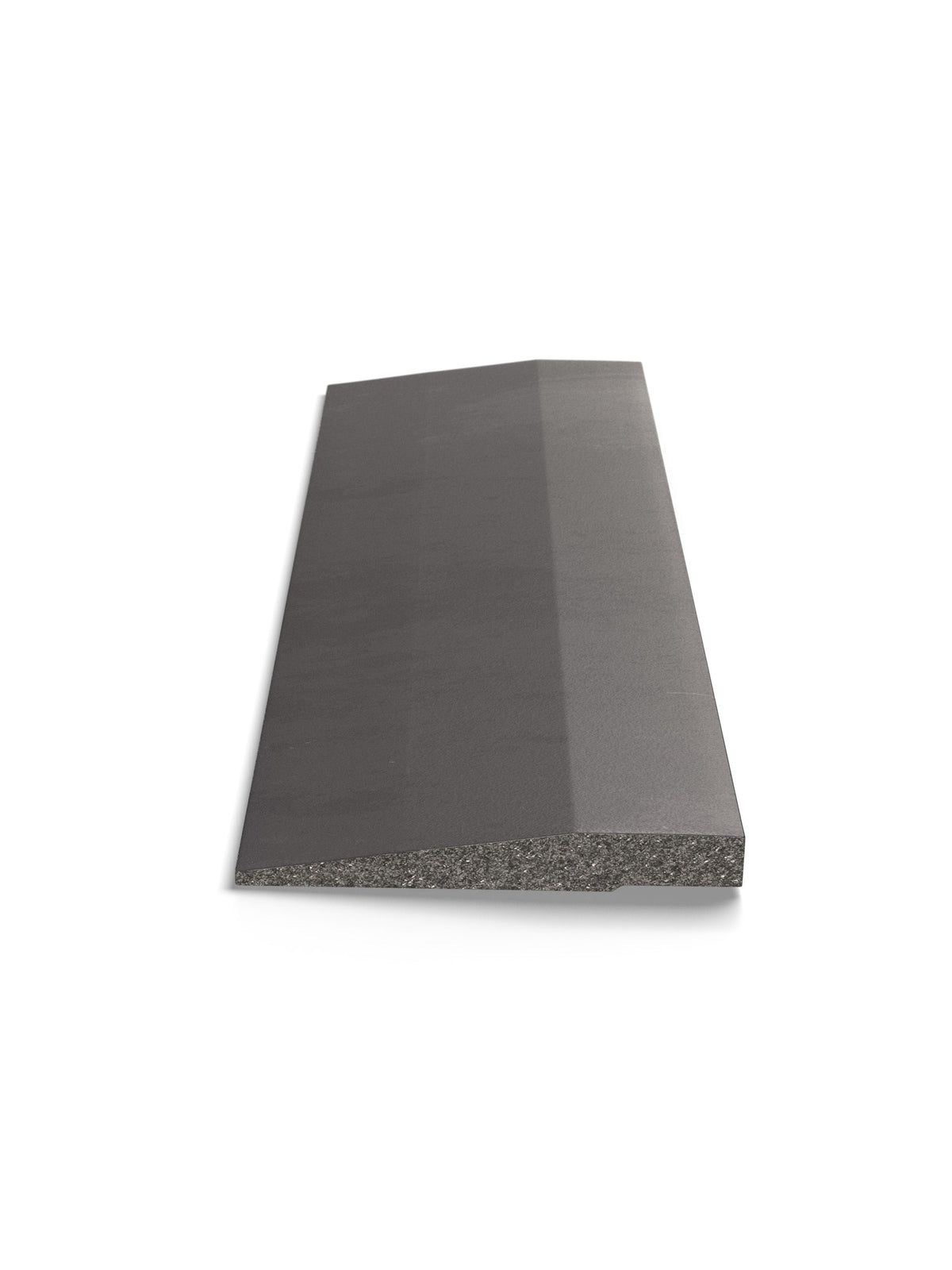

- The mat ends can be fitted with corner pieces that attach seamlessly to the edges of the mat
- This creates a smooth transition between mat and floor, which prevents the formation of high edges
- This reduces trip hazards and makes it easier to maneuver weight benches or movable weight racks
- The end pieces thus not only offer a visually appealing solution but also increase the safety and functionality of the flooring

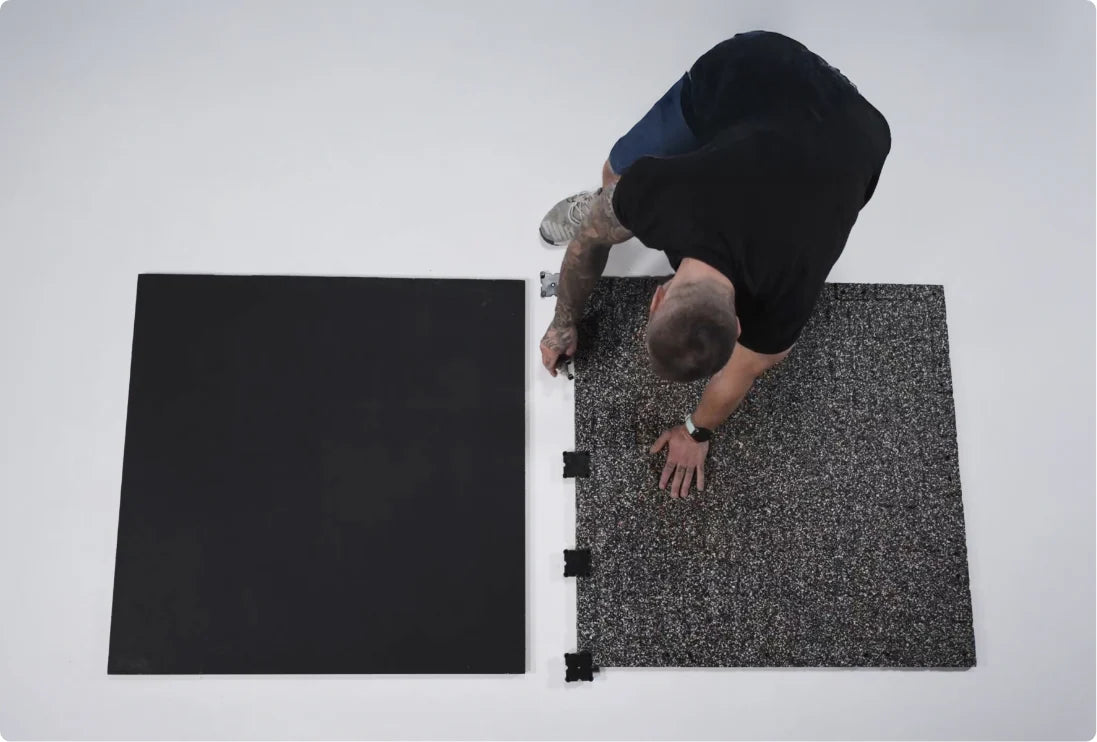

Step-by-step instructions for cutting and laying the gym flooring:
- Safety first: Put on suitable work gloves to avoid cuts.
- Choosing the right tool: a sharp carpet or utility knife and a guide rail.
- The subfloor should be flat and level. In addition, you should use e.g. cardboard boxes to protect the floor.
- Measure precisely and mark the area to be cut with chalk or lightly score it with the knife.
- Place the guide rail and pull the knife firmly through the mat without lifting it. The cut should be made in one motion and the pressure applied should be even. Repeat this process as many times as needed until the mat is completely severed. Spread the mat apart piece by piece as you cut to reduce friction. If necessary, moisten the knife a little with soapy water to help it glide better. Note, however, that this also increases the risk of slipping.
- Any gaps between the mats can simply be covered with black tape to prevent dust and dirt from getting in.
Item ID
| SKU | 555-1232 |
| EAN | 4260754392356 |
Material MaxProtect Gym Flooring 20 mm (3/4") 20"x20" | 39"x39"
| Main Component | EPDM |
|---|---|
| Layer 1 | Fine granulate , 0.8mm maximum grain size |
| Properties | slip-resistant, waterproof |
| Layer 2 | Coarse granulate, 2.4mm grain size |
| Properties | cushioning, shock-absorbing, noise-dampening |
Features
| Size per Mat | 39"x39" or 20"x20" |
|---|---|
| Thickness | 20 mm (3/4") |
| Color | black |
| Odor Neutrality | nearly odor-neutral |
| Weight per sq ft: | 3.7 lb |
| Tolerances | 1% |
Protection
| Assessment | Expert-tested for pollutants, prohibited chemicals or hazardous dyes |
|---|---|
| REACH | 100% pollutant-free per REACH EU standard |
| Impact Sound Reduction | up to 34dB |
| Slip Resistance | Class R10 • highly slip-resistant per DIN 51130 |
| Fire Behavior | Efl (DIN EN 13501-1) / B2 (DIN 4102-1) - normally flammable |
| UV-resistant | Yes |
Interlocking System
| Connection System | Click system with retaining mechanism (included in delivery) |
|---|---|
| End Caps | optional at extra charge |
Application
| Outdoor-suitable | Yes |
|---|---|
| Underfloor heating compatible | Yes |
Warranty & Certification
| Attachment device guarantee | 5 years |
|---|
Delivery & Assembly
| Shipping | Parcel Delivery |
|---|
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Return receipt at the parcel shop |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
Warranty & Certification
| Warranty on material stability or deformation | 5 years |
|---|
Accessories
| Gym Flooring 20"x20" | 4x |
|---|
