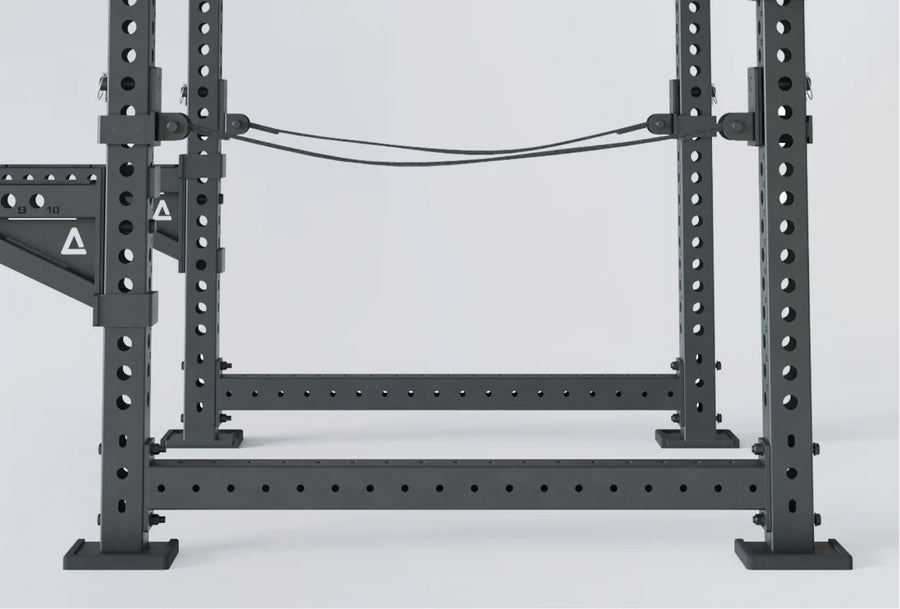

Maximum flexibility
Square footprint (48"x48") and side bores allow attachments to be mounted on all sides.
Skip to product information
R8 SoundWave | Power Rack

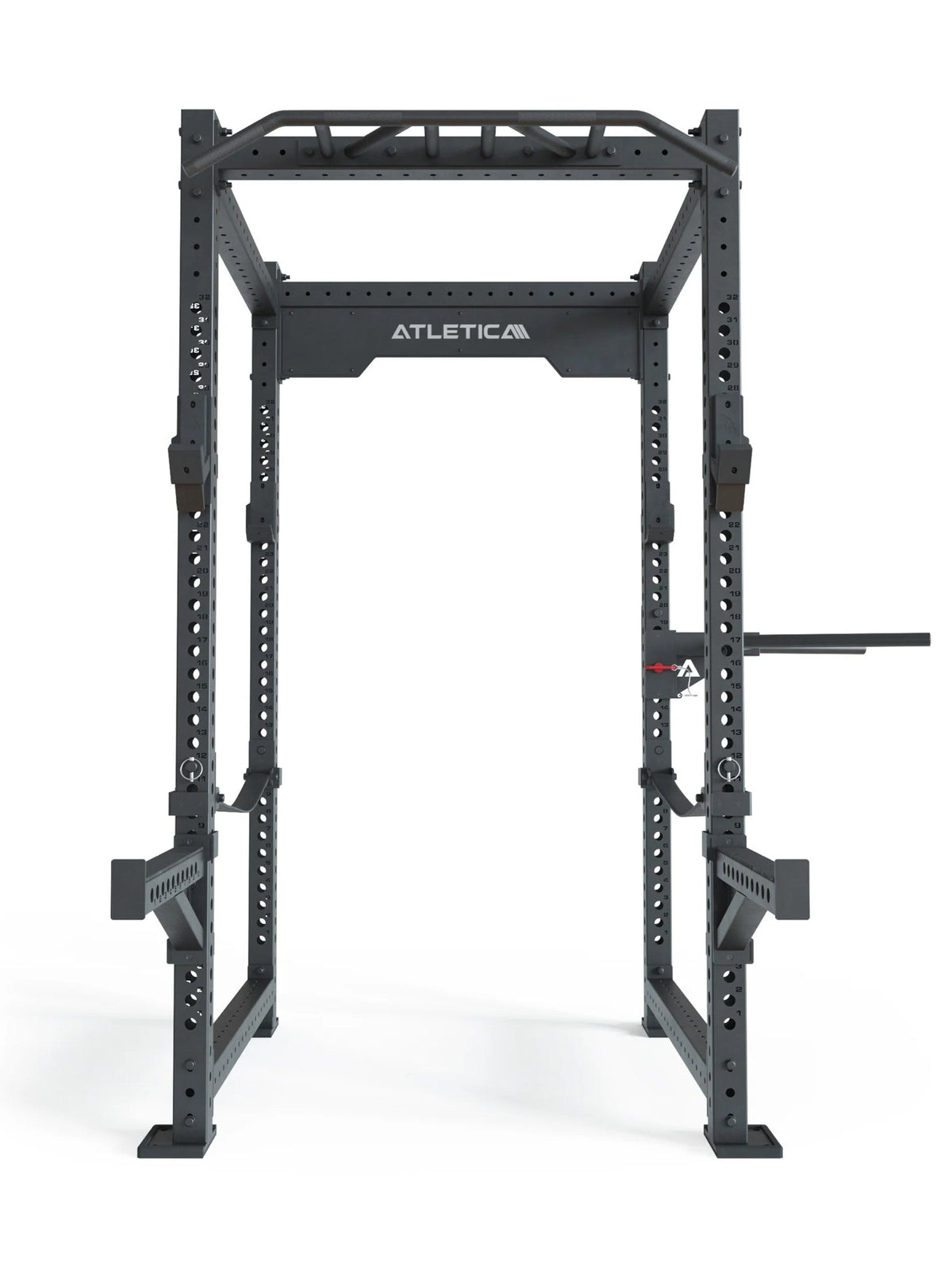

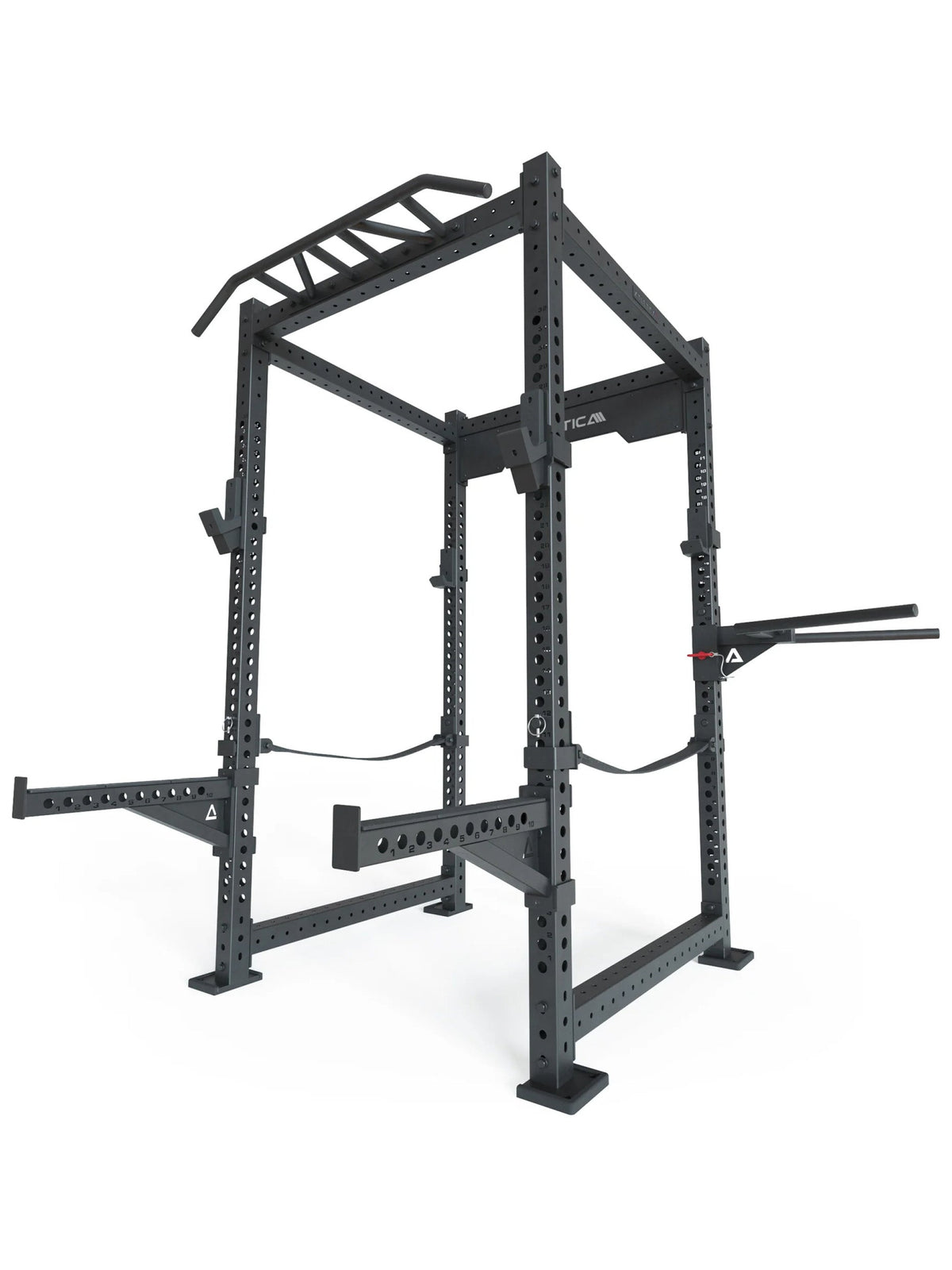

Power Rack with 4 J-Hooks, Safety Straps, Spotter Arms, Logo Plate, Dip & Pull-Up Bar | 89"x48"x48" | 435 lb | Expandable
$1 635.00
Sale price
$1 635.00
Regular price
100-Days return policy
Free Training App
1635
Loyalty Points
R8
SoundWave

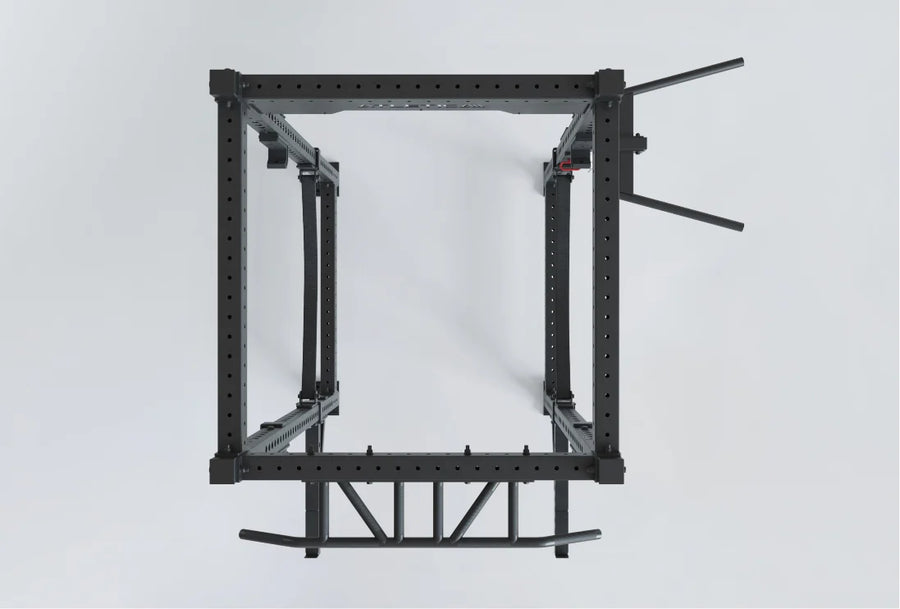

Plenty of room for training
Offers enough space to fit a weight bench and perform all exercises without restrictions inside the cage.

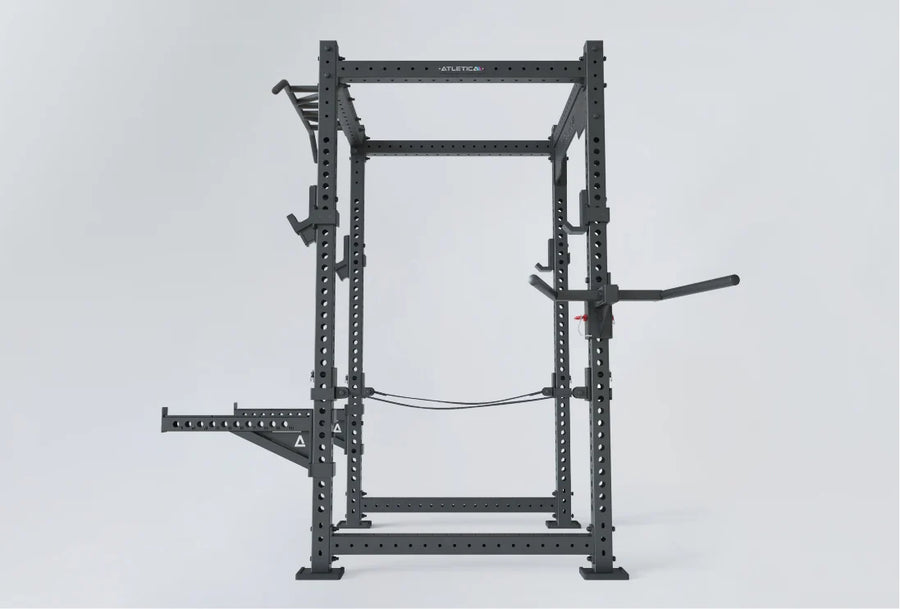

Extreme Stability
With 435 lb net weight, the rack stands extremely stable without requiring floor anchoring.

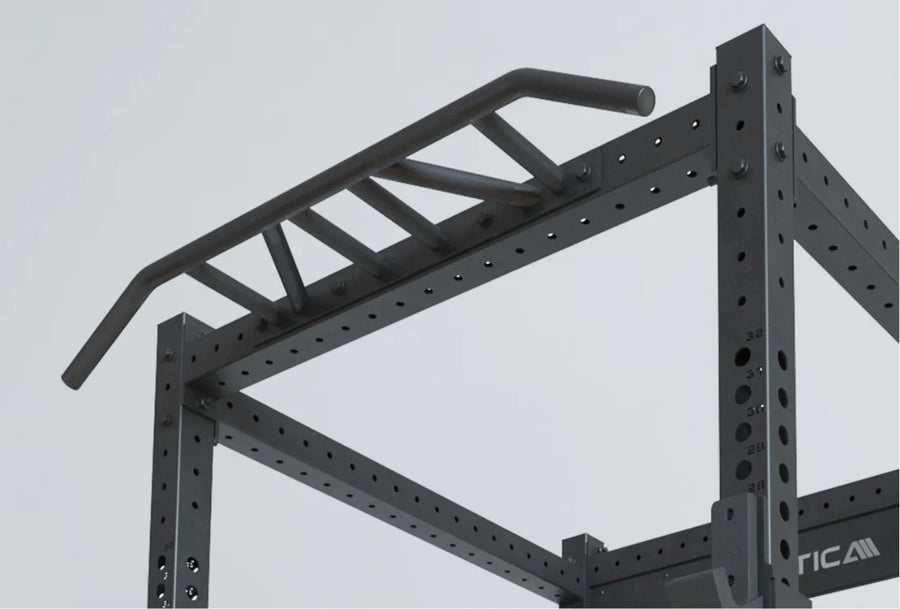

Extensive basic equipment
Includes safety straps, a dip station, a multi-grip pull-up bar, and an ATLETICA logo plate as a counterweight.

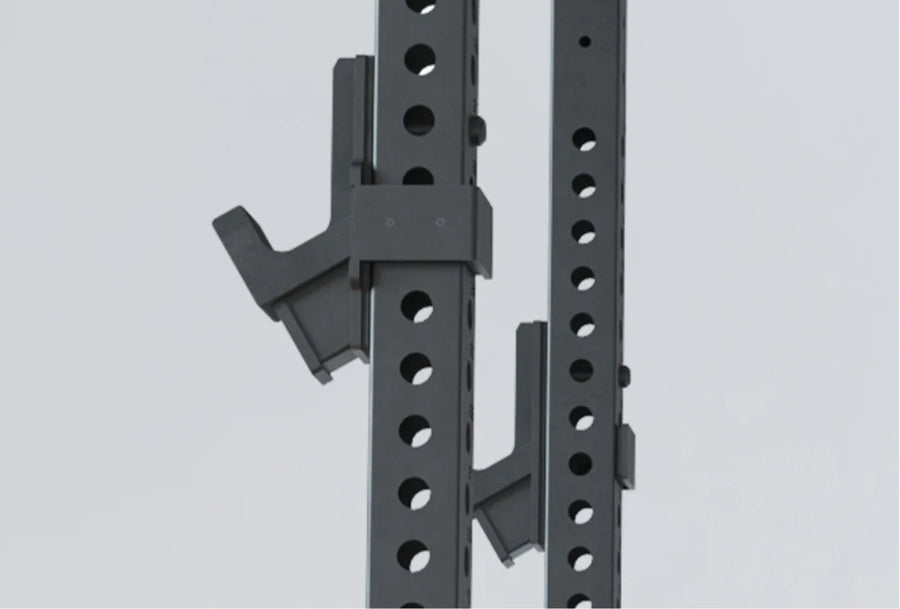

High load capacity
The reinforced J-Hooks have a load capacity of up to 1,200 lb and allow a quick switch between exercises.
Tested Quality
TÜV- and GS-certified according to EN 20957:
The Atletica R8 Power Racks meet the highest European safety standards and are suitable for use in commercial gyms.

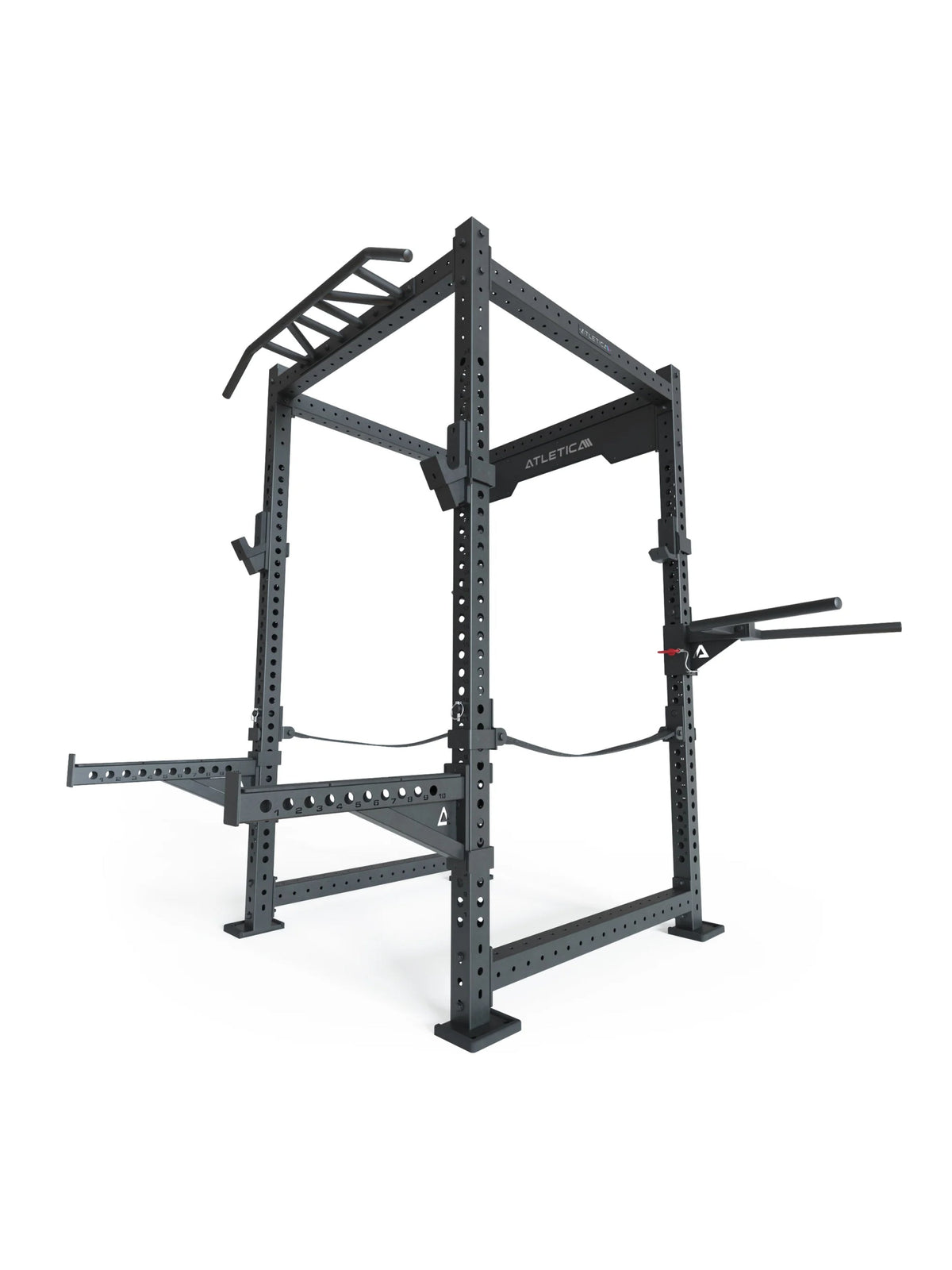

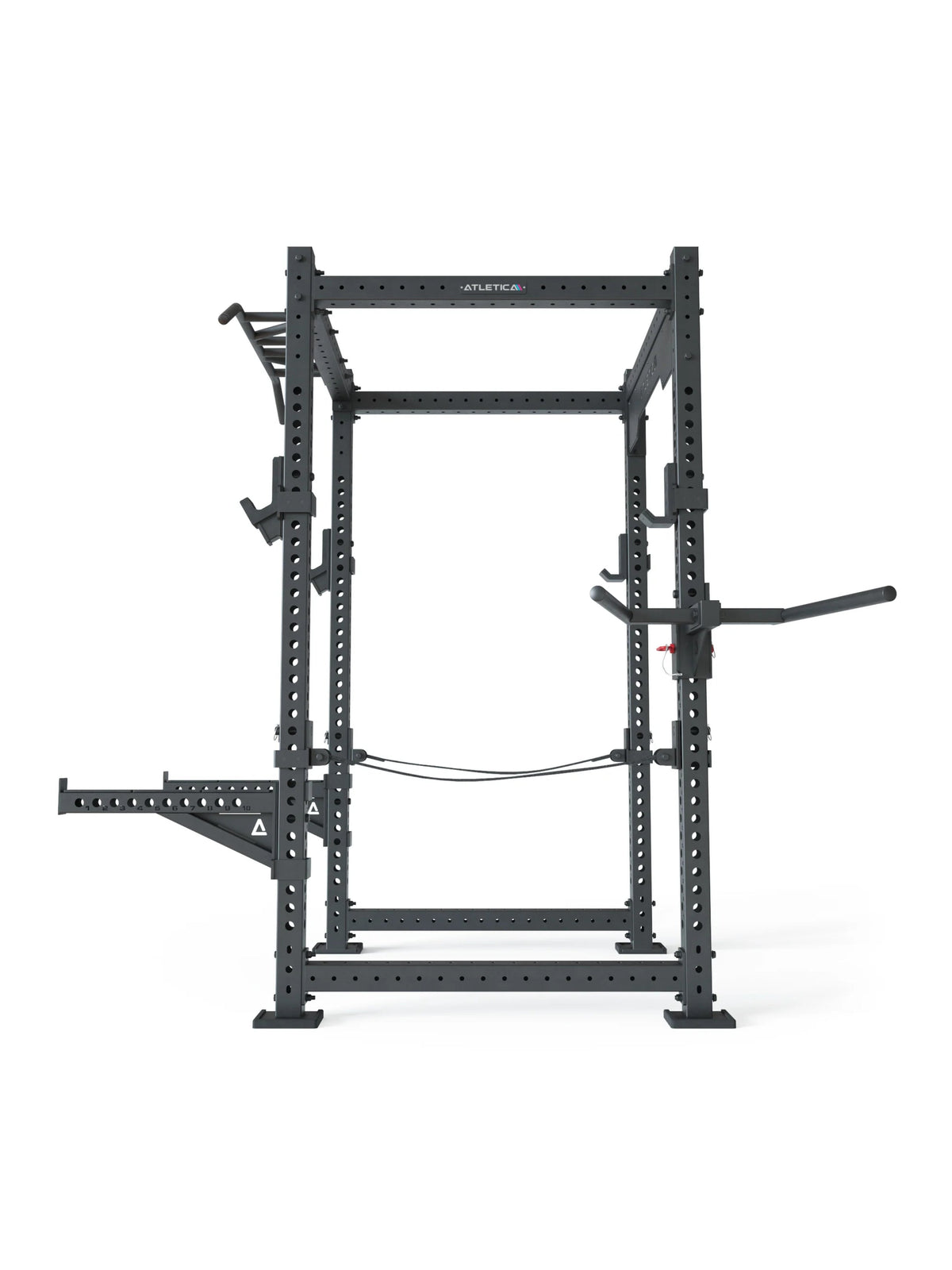

R8 SoundWave Power Rack

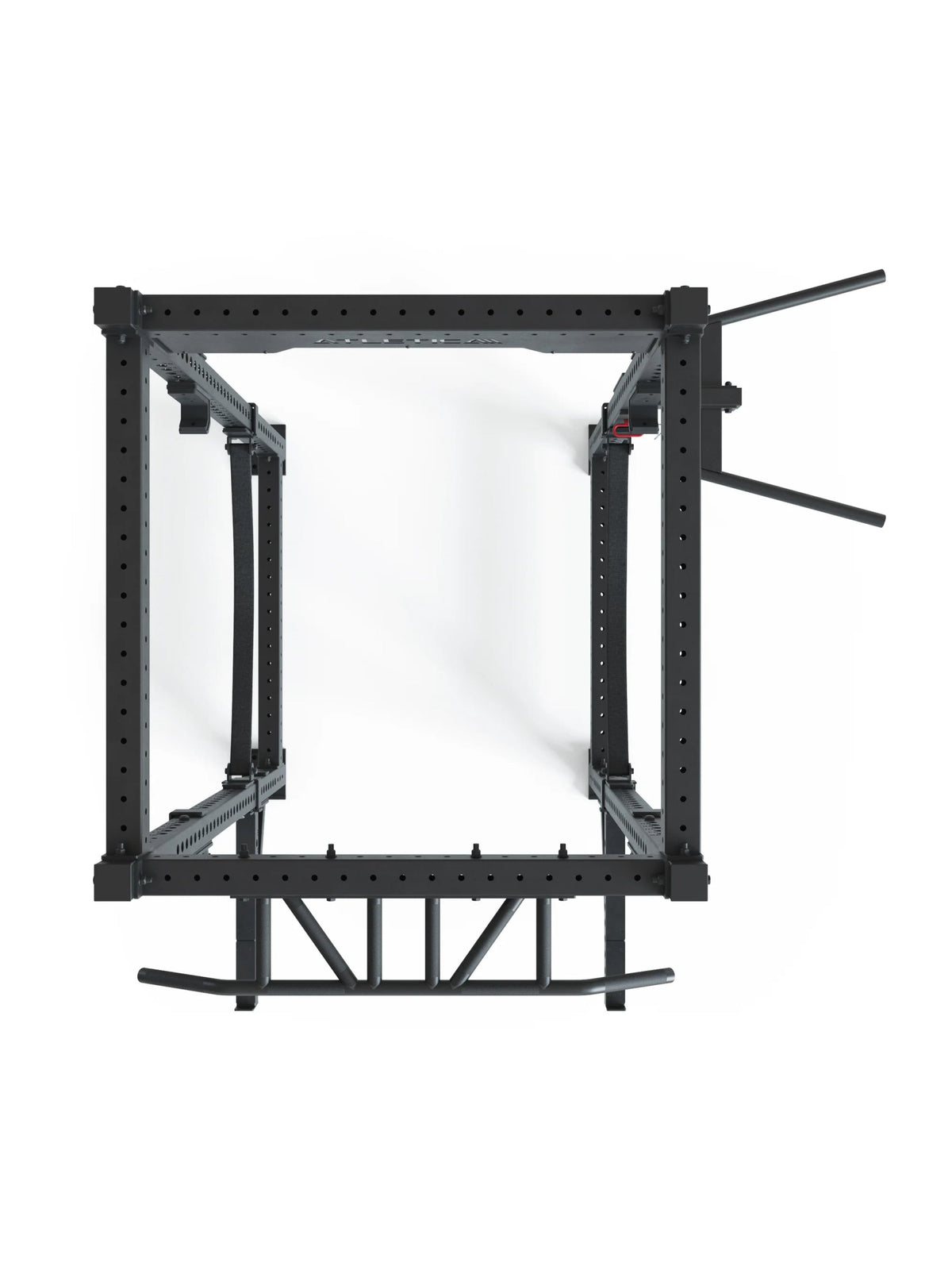

- The R8 SoundWave has a square footprint, 48" on each side
- All attachments mount on the front, rear, and sides alike
- Plenty of room for a weight bench inside the rack and full range of motion for every exercise
- At 435 lb, the rack stands stable on its rubber feet, with no floor anchoring required
- Optional floor anchoring: just remove the rubber feet and use the pre-drilled holes
Standard Equipment
- The safety straps catch the bar if you fail a rep and also work for rack pulls
- The dip station adds chest training and attaches to any side of any upright

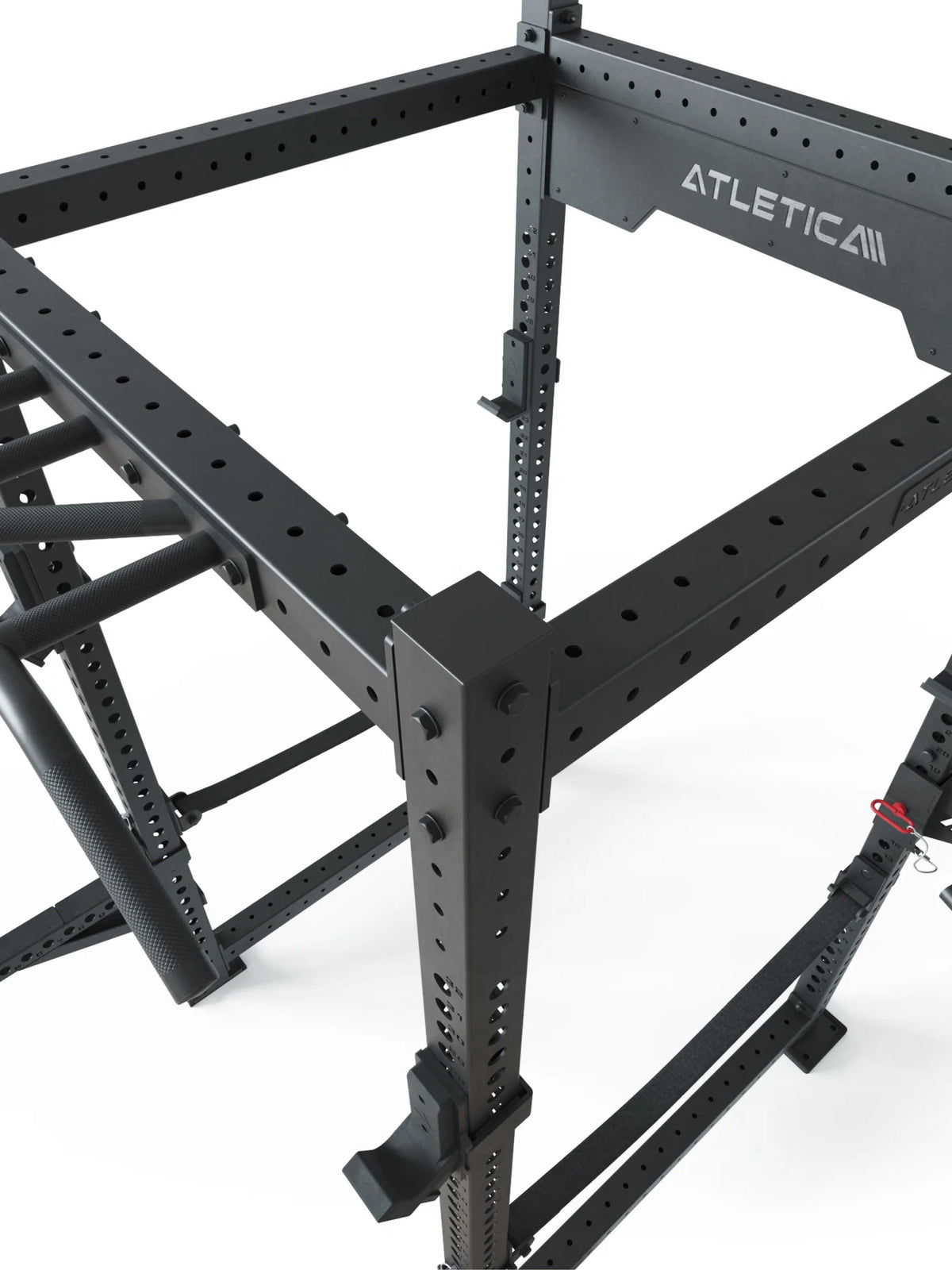

- The pull-up bar offers many grip options and widths, including slightly or fully supinated or pronated grips
- The 40 lb ATLETICA logo plate doubles as a counterweight for added stability
Power Rack Accessories
- A second, reinforced pair of J-hooks, rated up to 1,200 lb, lets you switch between two exercises without repositioning the barbell each time
- Two people can train simultaneously without getting in each other's way
- When training solo, the spotter arms catch the weight if you fail a rep, so you can push your limits
Item ID
| SKU | 555-1764 |
| EAN | 4260754391106 |
Load Limits
| Upright Posts and Crossbars | Up to 3,300 lb , tensile strength and PSI load tested |
|---|---|
| Pull-Up Bar | Up to 550 lb per grip side , tensile strength tested |
| J-Hooks Type 1 | Up to 990 lb per J-Hook , weight-drop tested |
| J-Hooks Type 2 | Up to 1,200 lb per J-Hook , weight-drop tested |
| Dip Bars | Up to 1,300 lb , tensile strength tested |
| Strap Safety System | Up to 1,200 lb per strap , elongation according to DIN maximum 2% |
| Safety Spotter Arms | Up to 1,200 lb per pair , weight-drop tested |

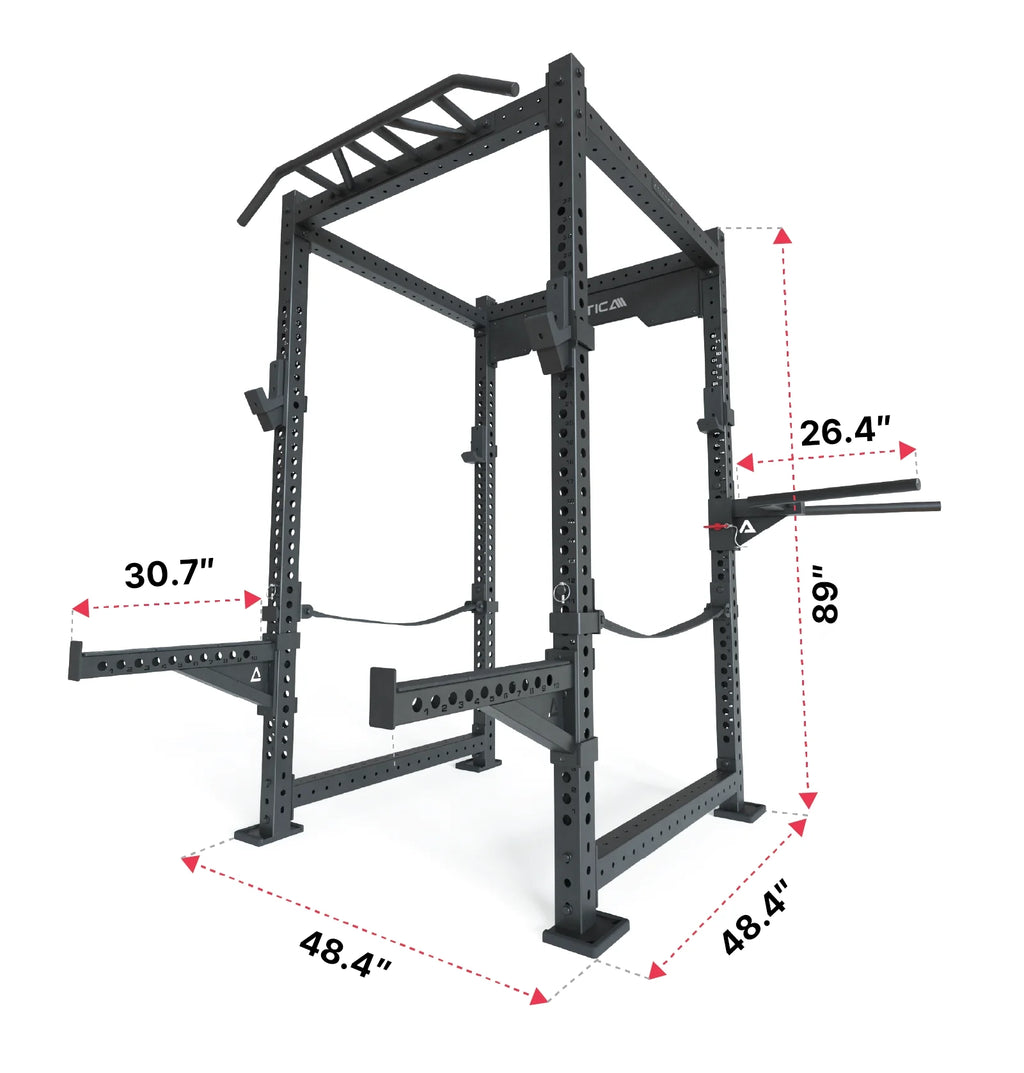

Dimensions & Footprint
| Height | 89" |
|---|---|
| Width | 48" |
| Depth | 48" (can be reduced to 37" by using 30.5" crossbars) |
| Net Weight | 435 lb |
Base Frame
| Steel type | Alloy Steel |
|---|---|
| Square tube | 3"x3" |
| Metal thickness | 11-gauge |
| Coating | Double powder coating |
| Corrosion resistance | Zinc Alloy |
Hole Pattern & Compatibility
| Hole grid | 2" (50 mm) |
|---|---|
| Hole (Pin) | 1" (25 mm) |
| Center distance of the hole | 2" (50 mm) |
| Numbering and scaling | 32-position laser engraved + 9-position Ultra-Fine Adjustment CrossBars |
| Weight plate compatibility | 2" (50 mm) |
| ATLETICA compatibility | All ATLETICA R8 attachments - modular concept |
Attachments/Accessories
| Image | Product | Description | Price |
|---|---|---|---|
|
R8 Colored Uprights 89" | Black | Pair | 2x pair | $478.00 |
|
R8 43-inch Crossbar | Pair | 2x pair | $318.00 |
|
R8 Reinforced Crossbar | 1x | $119.00 |
|
R8 Crossbar Connector | 43" | Single | 1x | $69.00 |
|
R8 Pull-Up Bar | 1x | $69.00 |
|
R8 J-Hooks | Type 1 | 1x pair | $89.00 |
|
R8 J-Hooks | Type 2 | 1x pair | $89.00 |
|
R8 Dip Bar | 1x | $199.00 |
|
R8 Safety Straps | 43" | 1x pair | $169.00 |
|
R8 Spotter Arms | 1x pair | $219.00 |
Total Price of Individual Units $1 818.00
Exclusive Set Price $1 635.00
You save $183.00
Warranty & Certification
| Basic frame guarantee | LifeTime |
|---|---|
| Attachment device guarantee | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
|---|---|
| Appointment | Email announcement with date selection |
| Assembly time | 1h, 2-Person |
| Tools required | 13 mm, 17 mm and 19 mm wrenches |
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Carrier pickup on preferred date |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
