R8 Duality | 380 lb | Short | Medium | Long | Plate loaded
- The R8 Duality combines a first-class Power Rack with a high-quality Cable Cross in one compact all-in-one solution
- Two people can complete their full-body workout at the same time
- Available as a full Power Cage (R8 Duality and R8 Duality PRO) in Short, Medium and Long depth, and as an R8 Nitro cable station in Stand-alone or Wall Mounted form

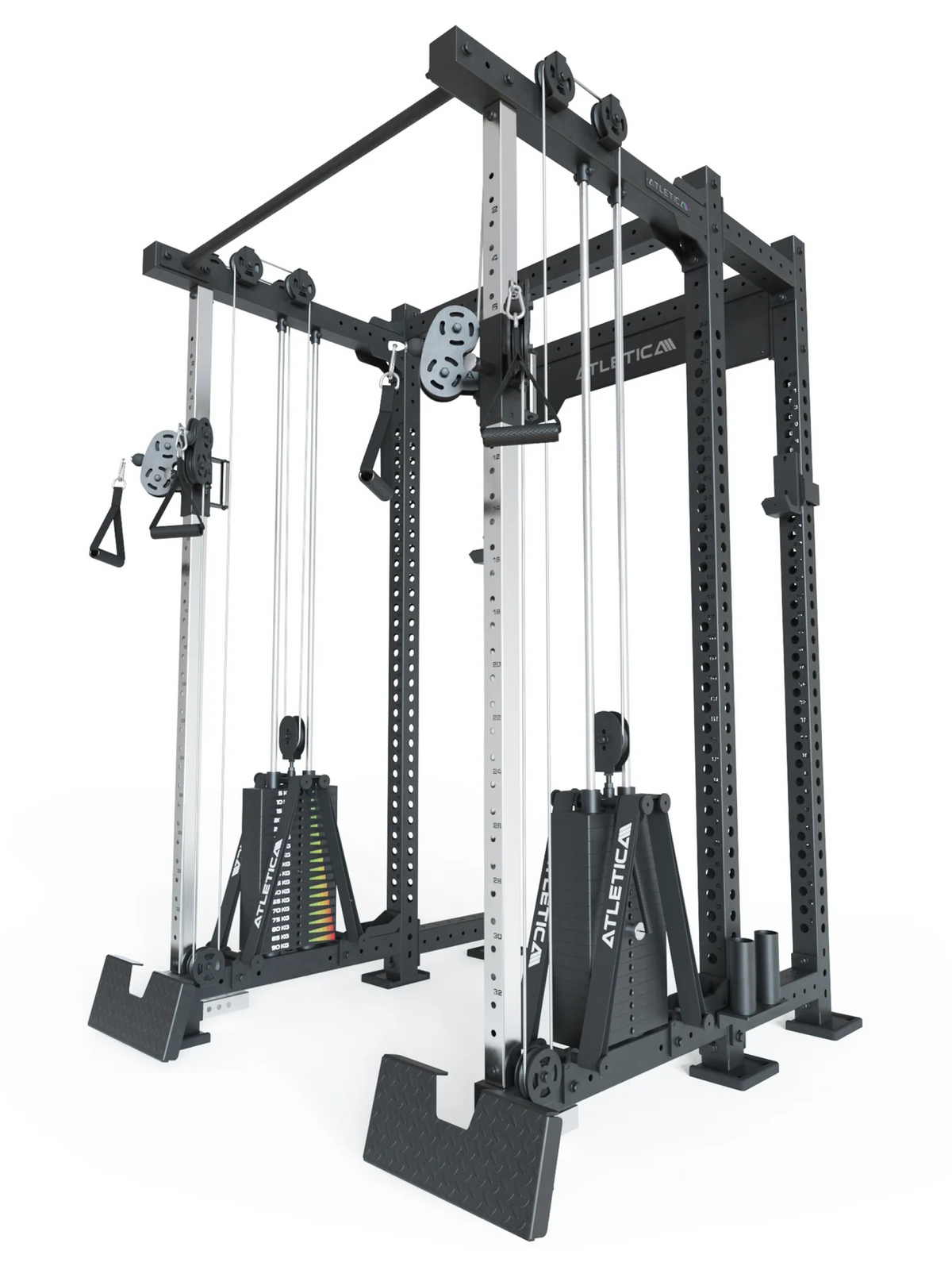

- Two weight systems: PRO and Nitro Cable Rack models use two integrated 190 lb weight stacks; the plate-loaded models are loaded with typical weight plates with a 2" (50 mm) bore diameter
- For the garage gym: numerous expansion options make this Squat Rack an all-rounder, continuously expandable with attachments from our R8 series
Versions & dimensions

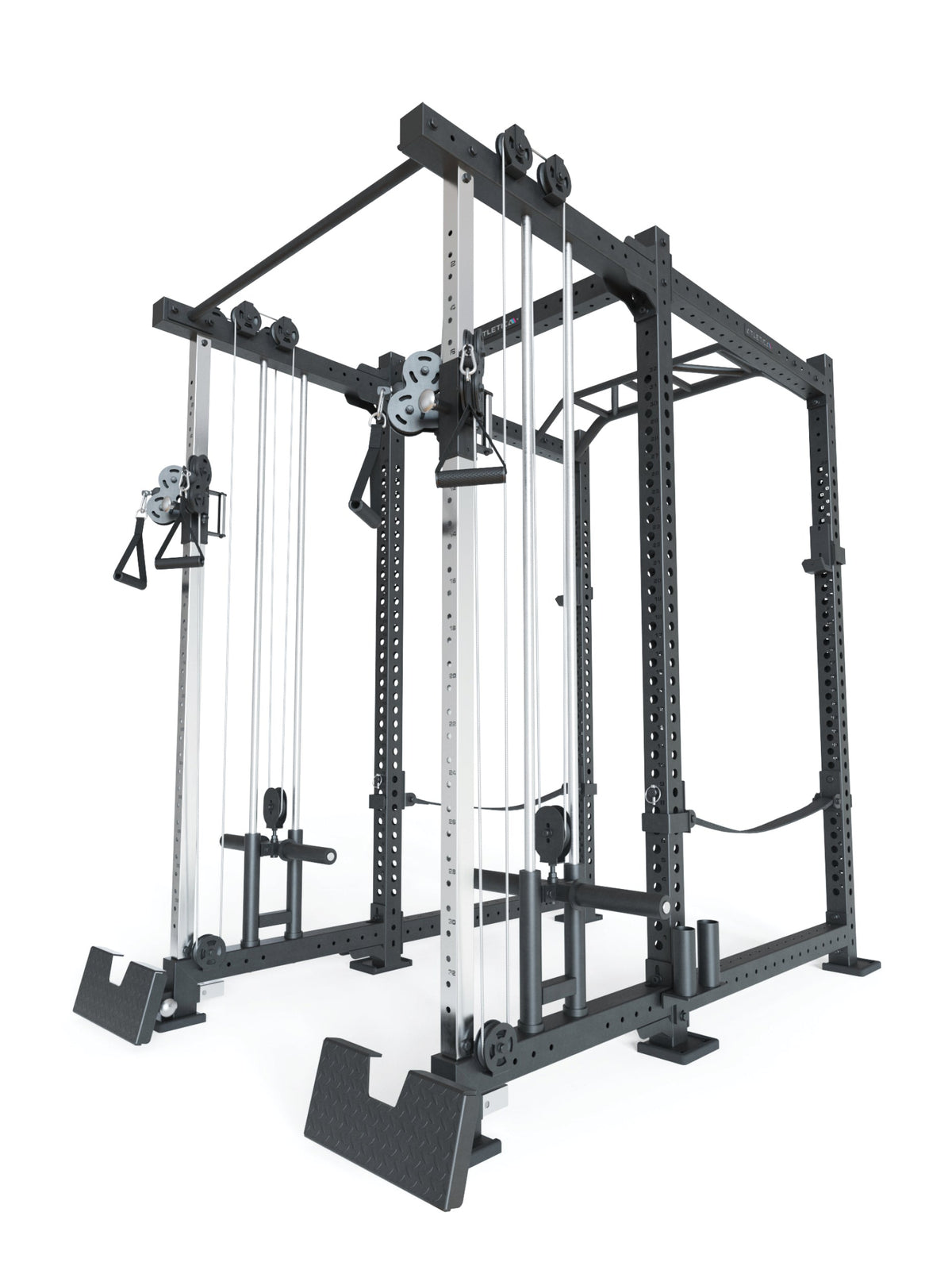

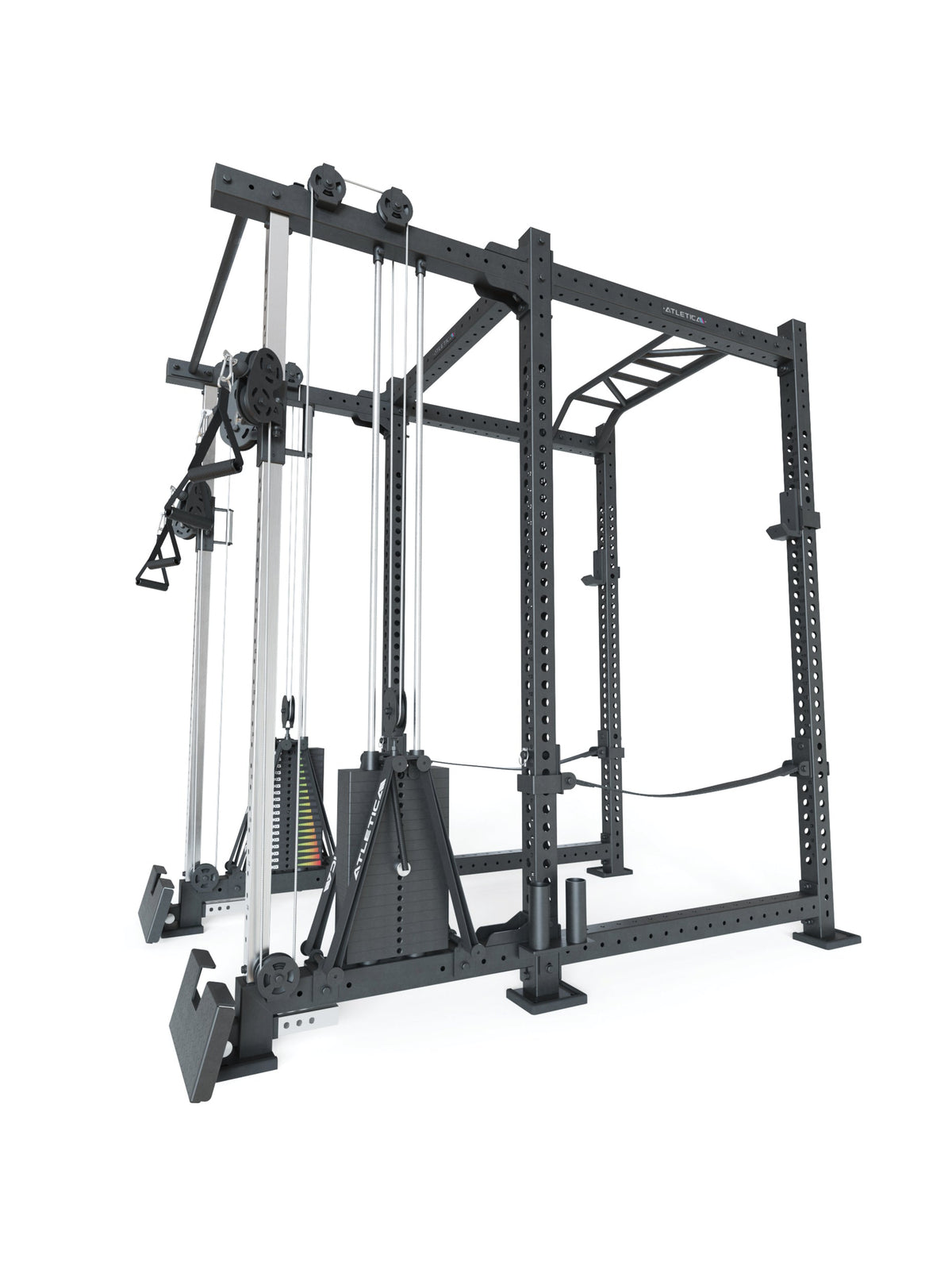

- Long: full depth of 93"

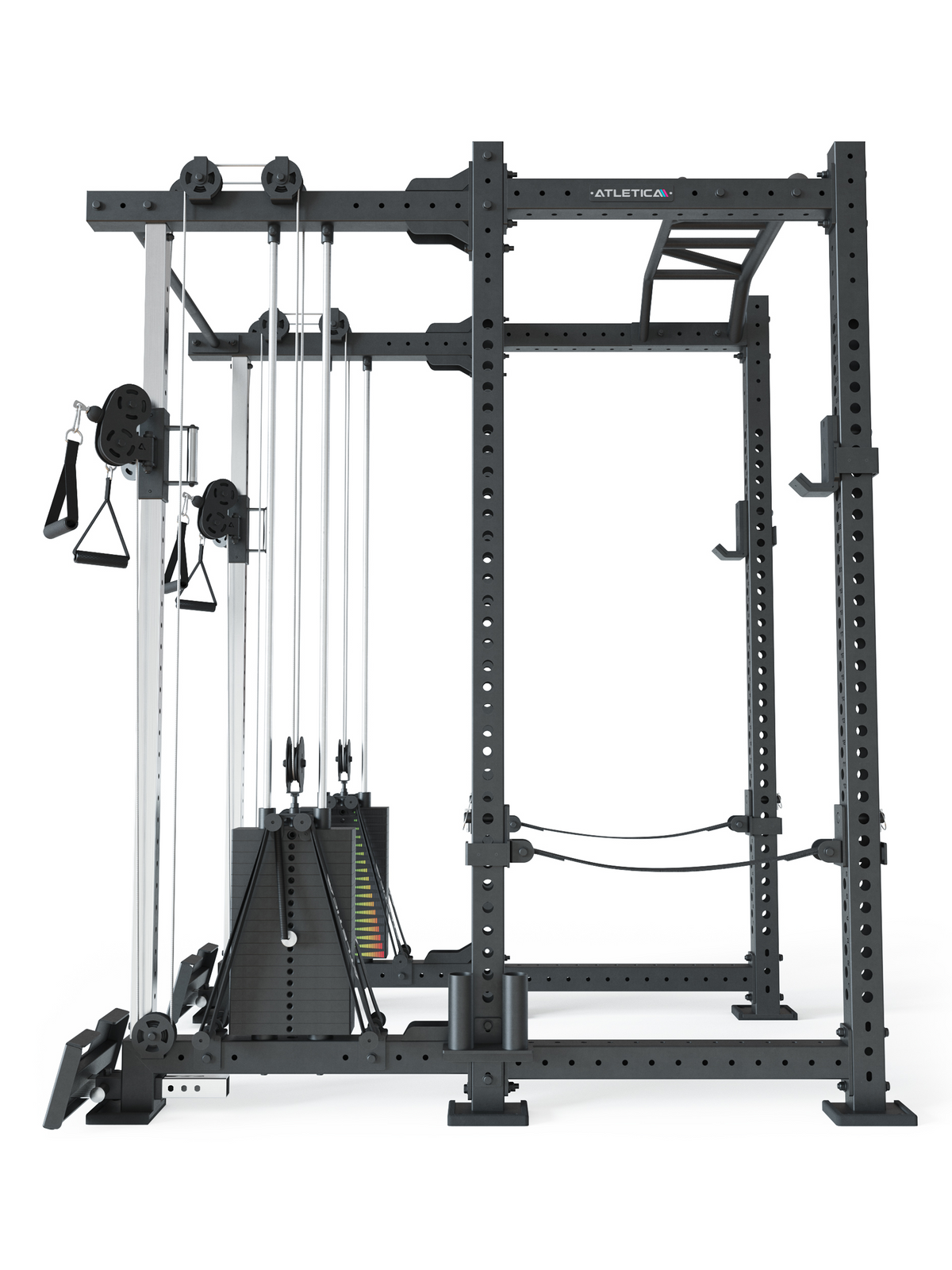

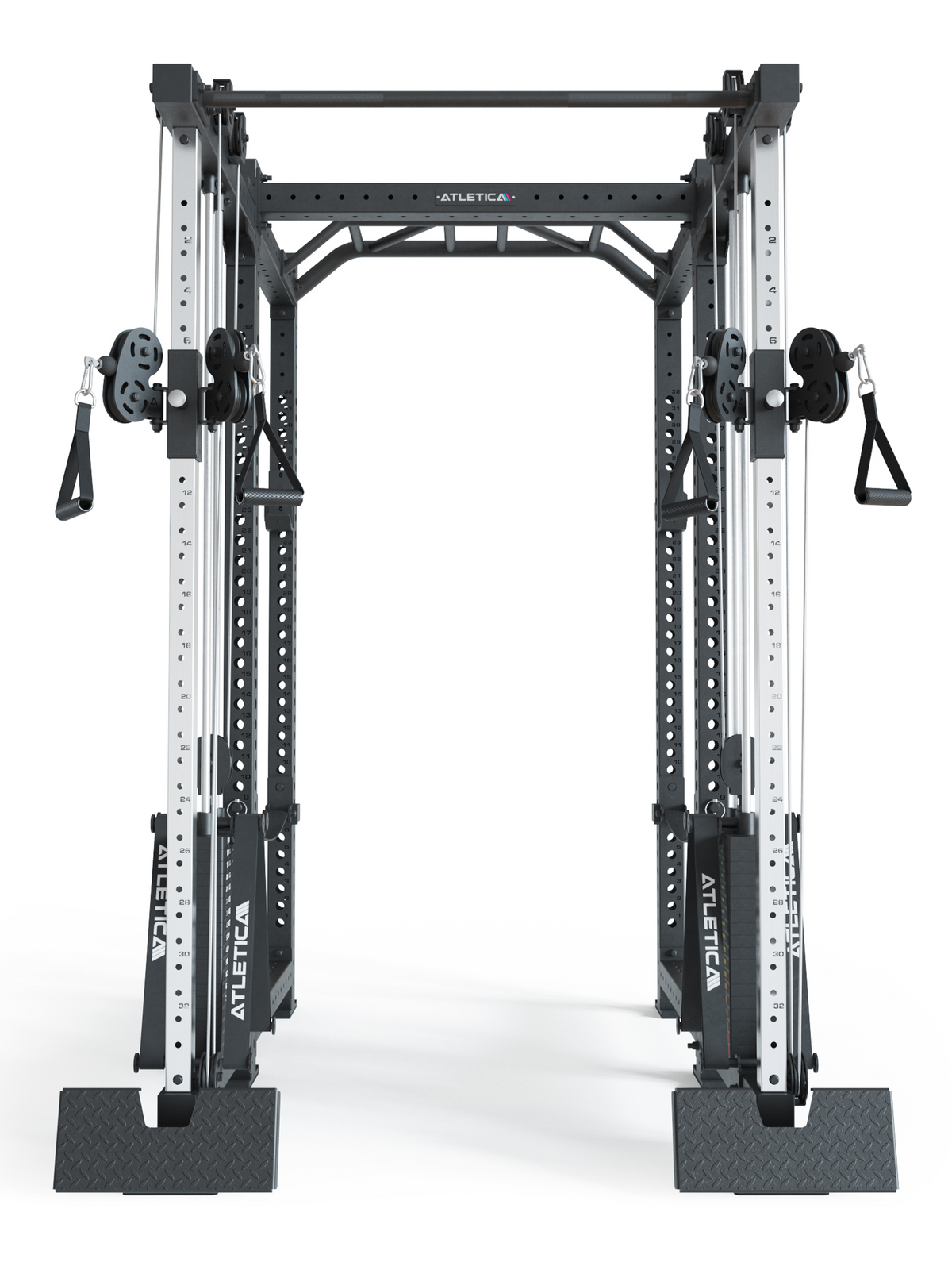

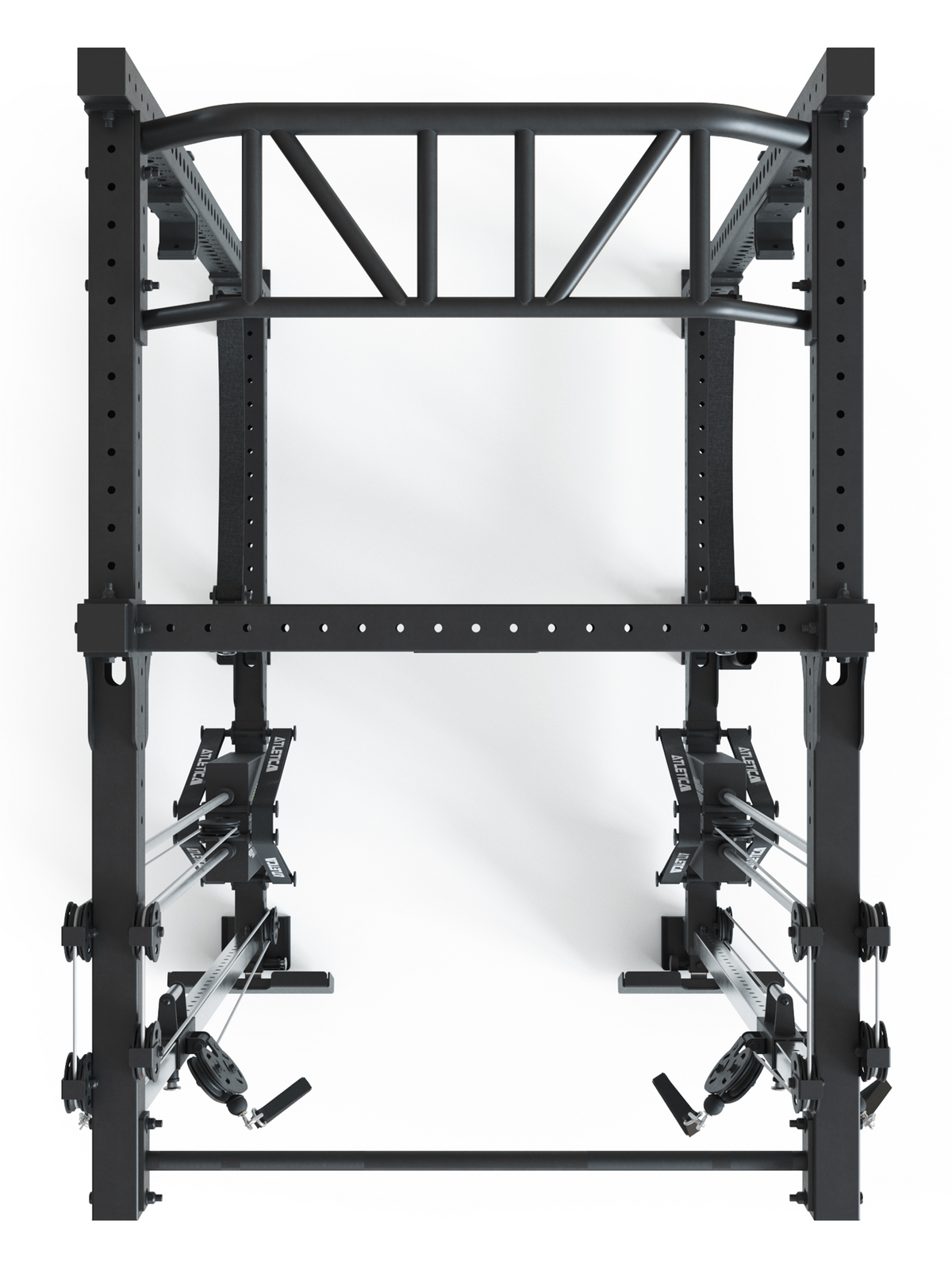

- Medium: crossmembers of 30.5" length reduce the overall depth from 93" to 81"

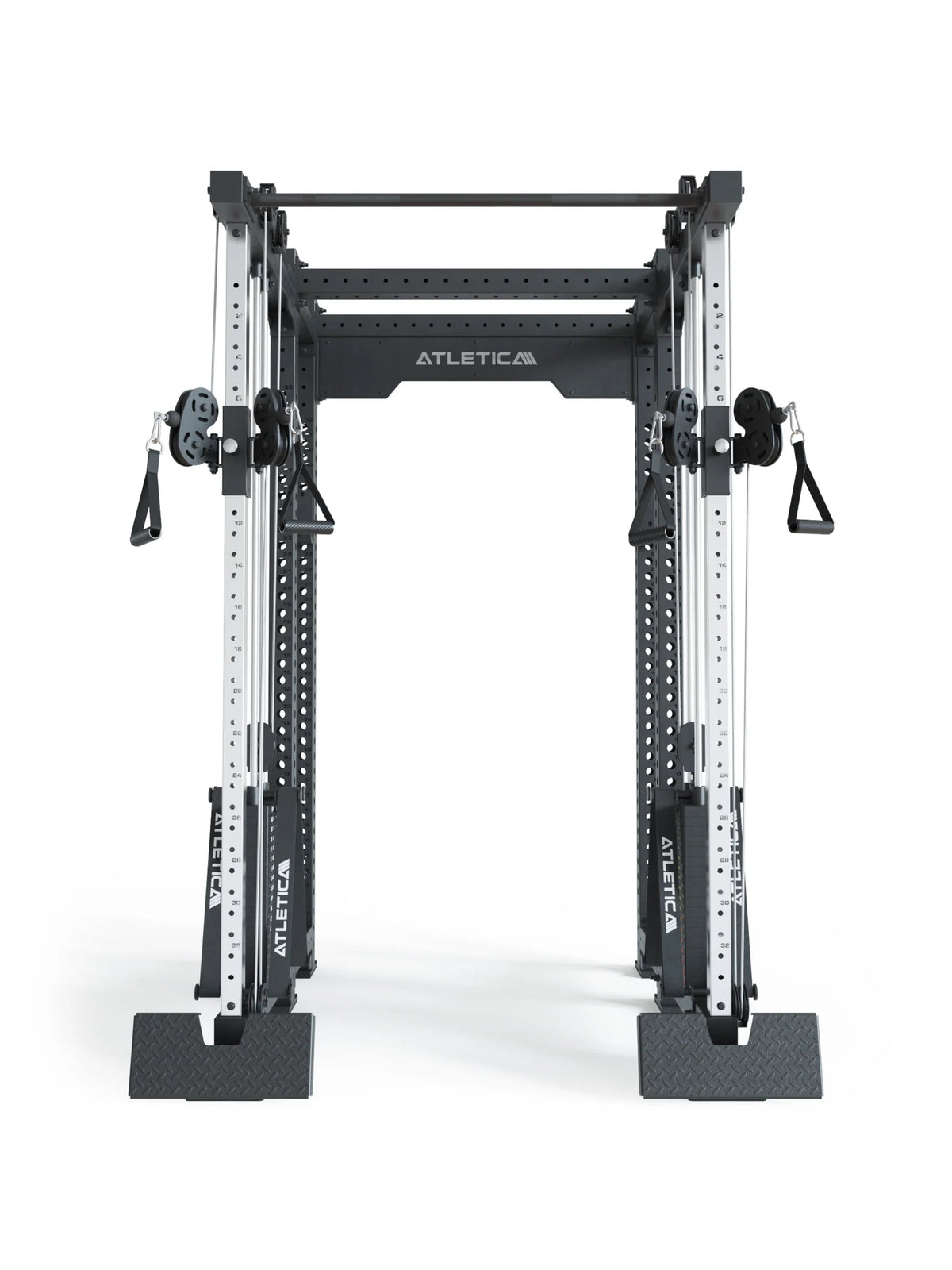

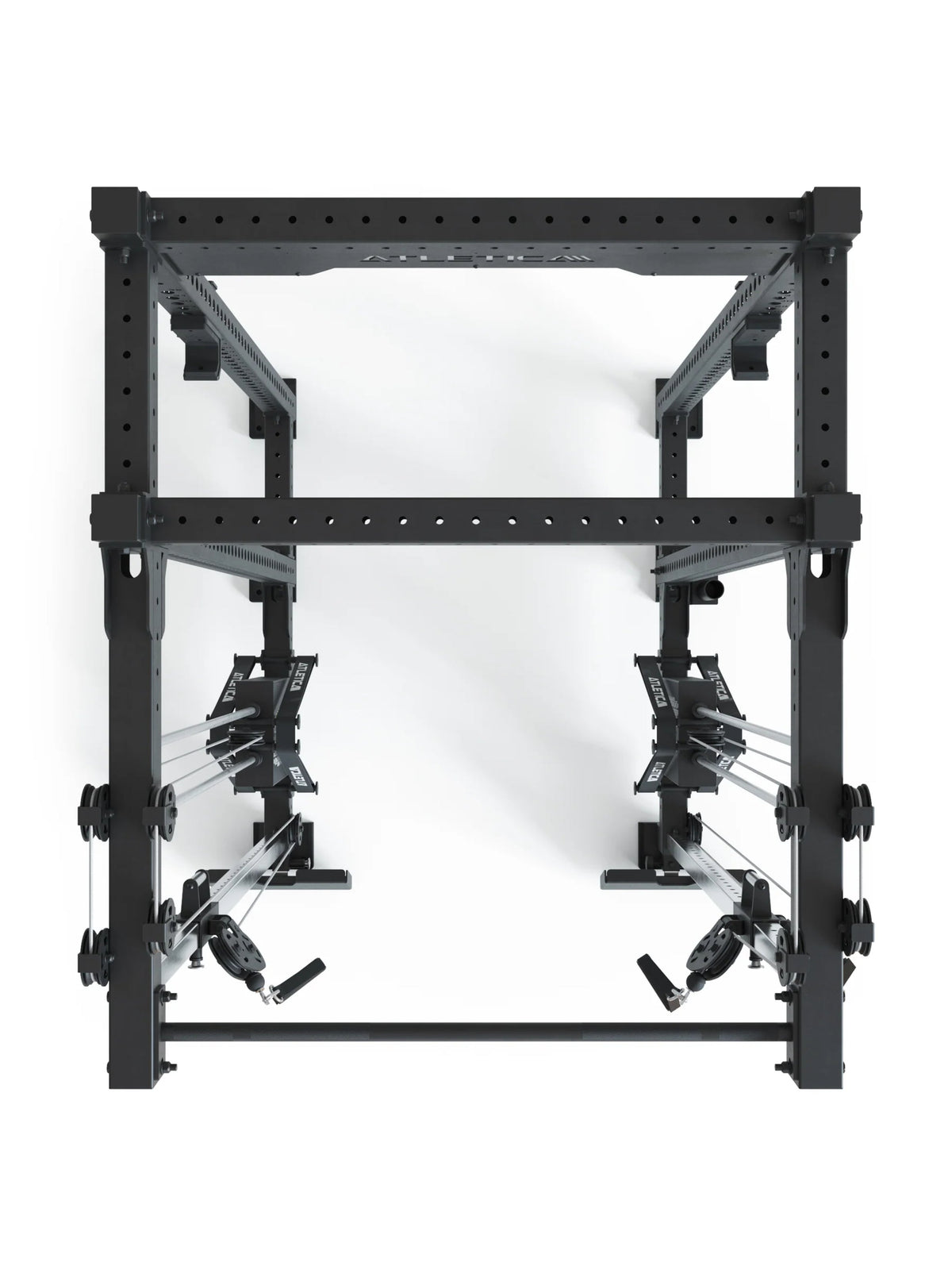

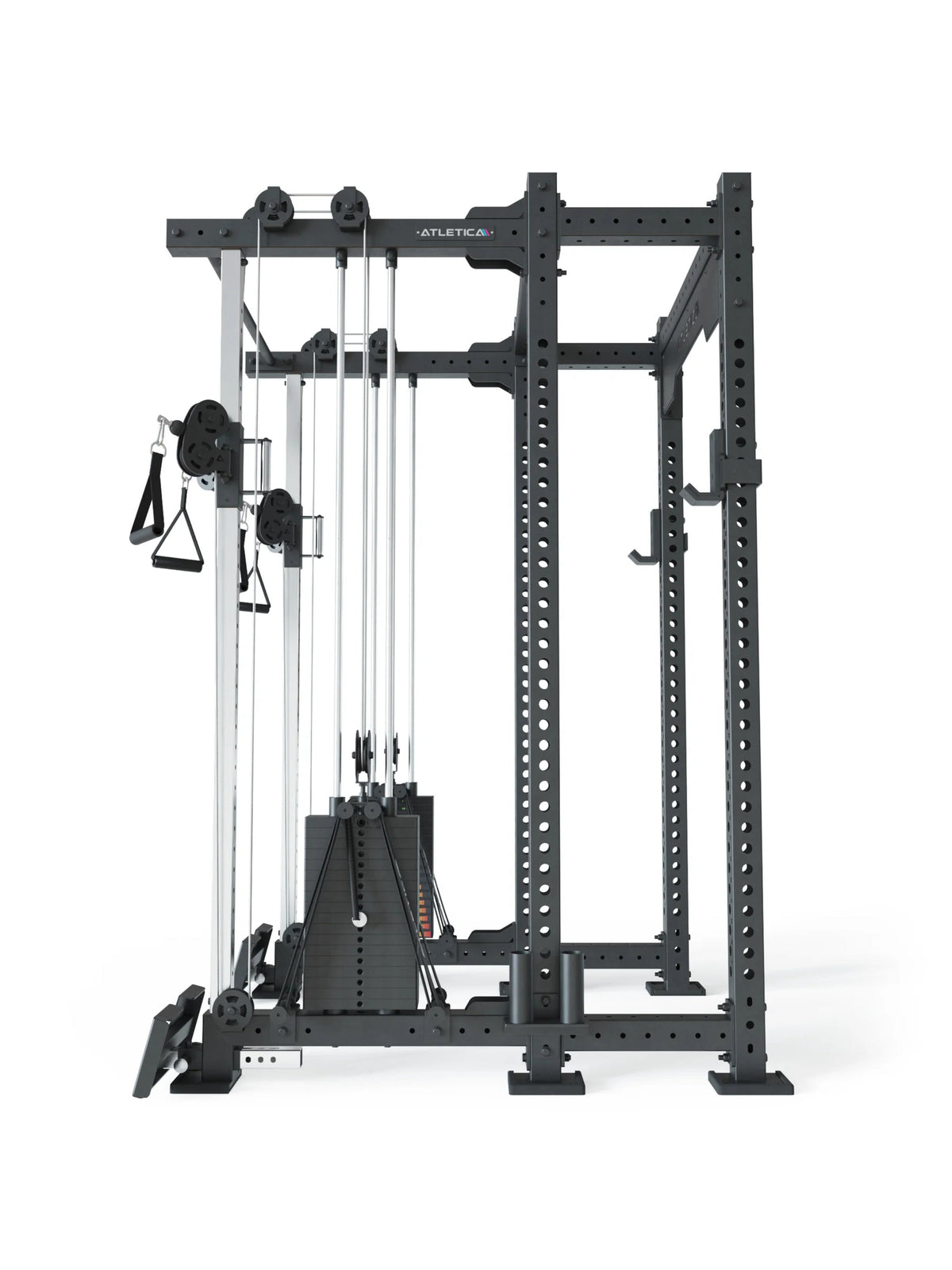

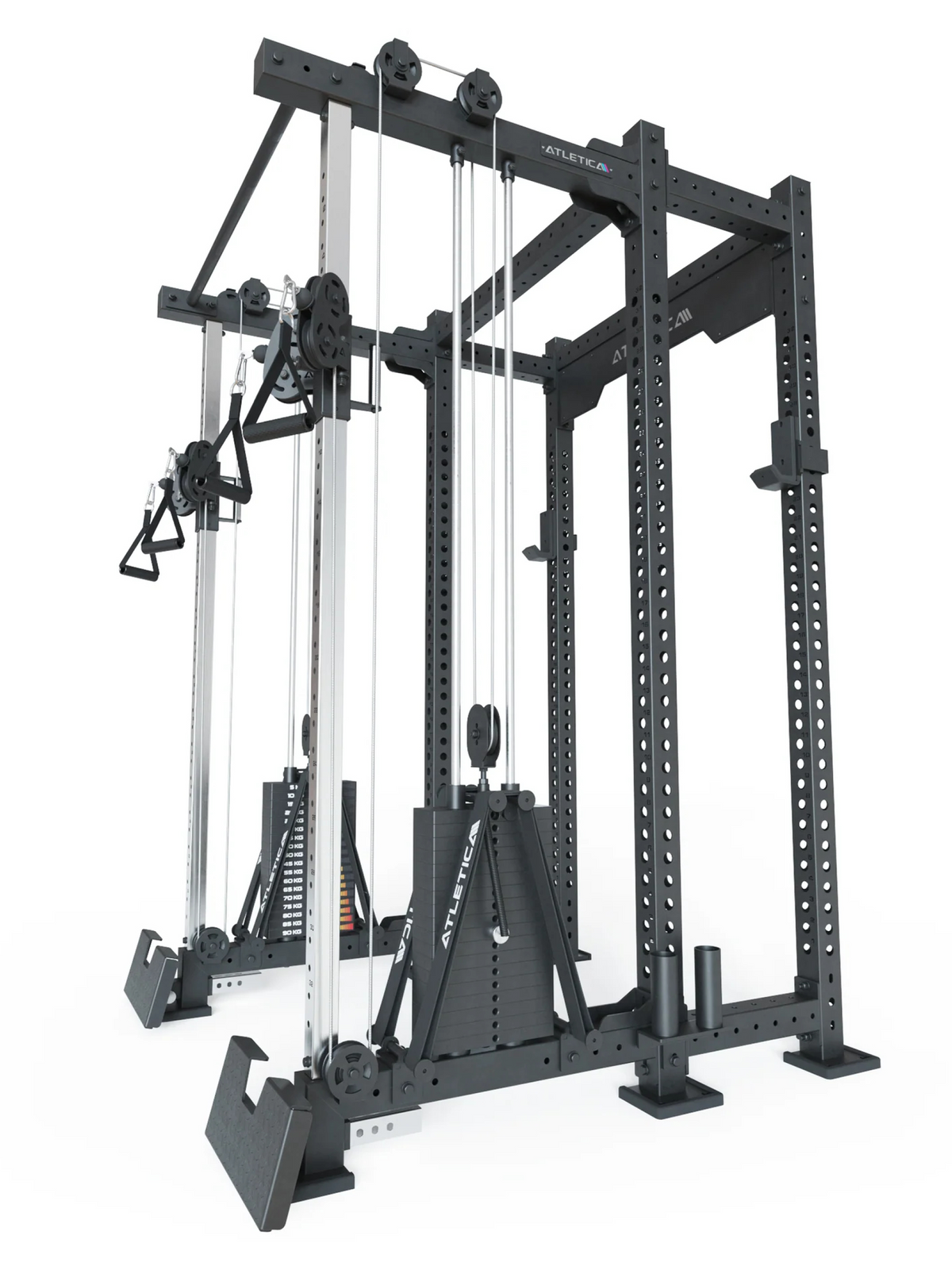

- Short: crossmembers of 16.5" length reduce the total depth from 93" to 67" – a great advantage in small training rooms

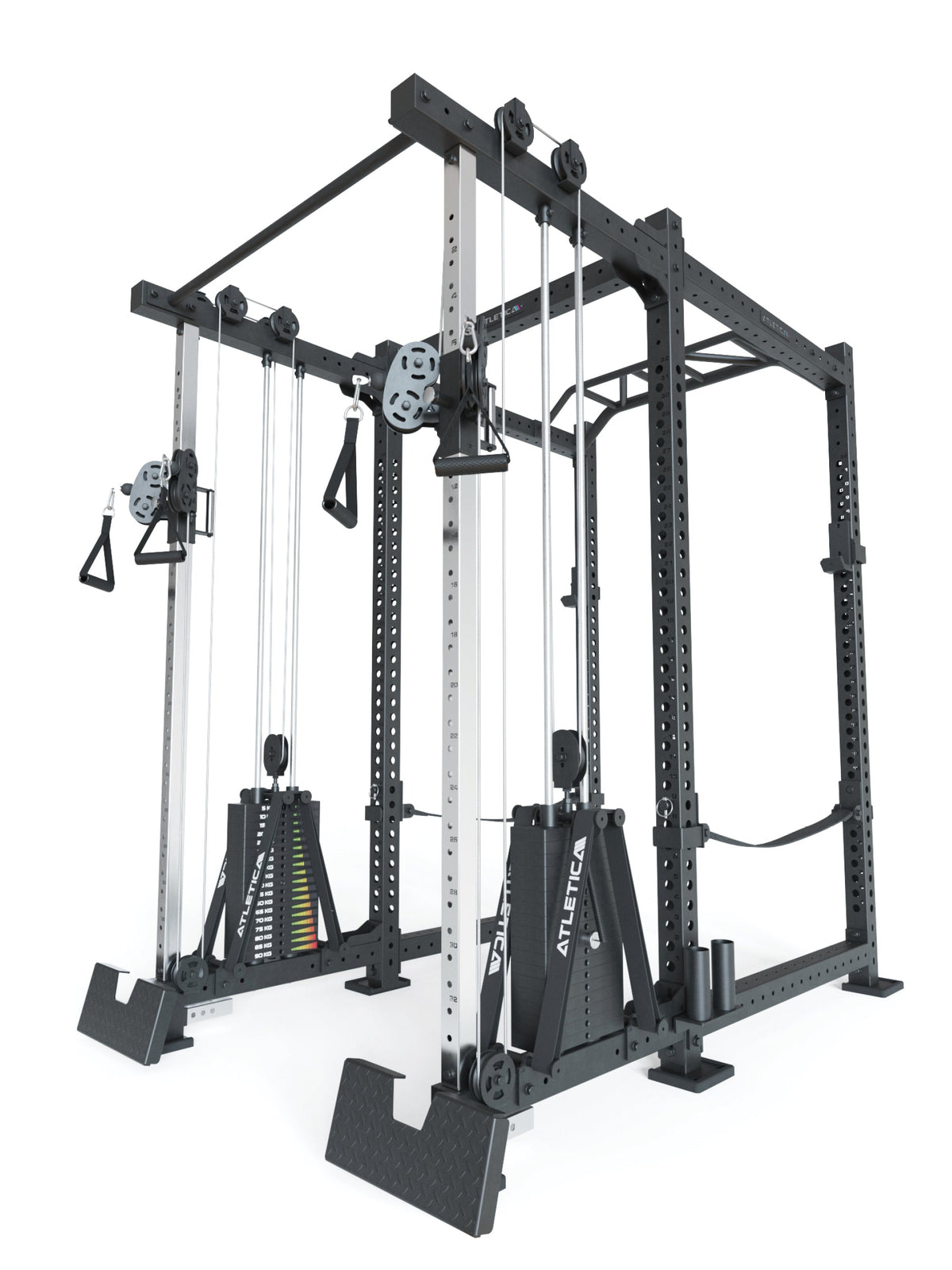

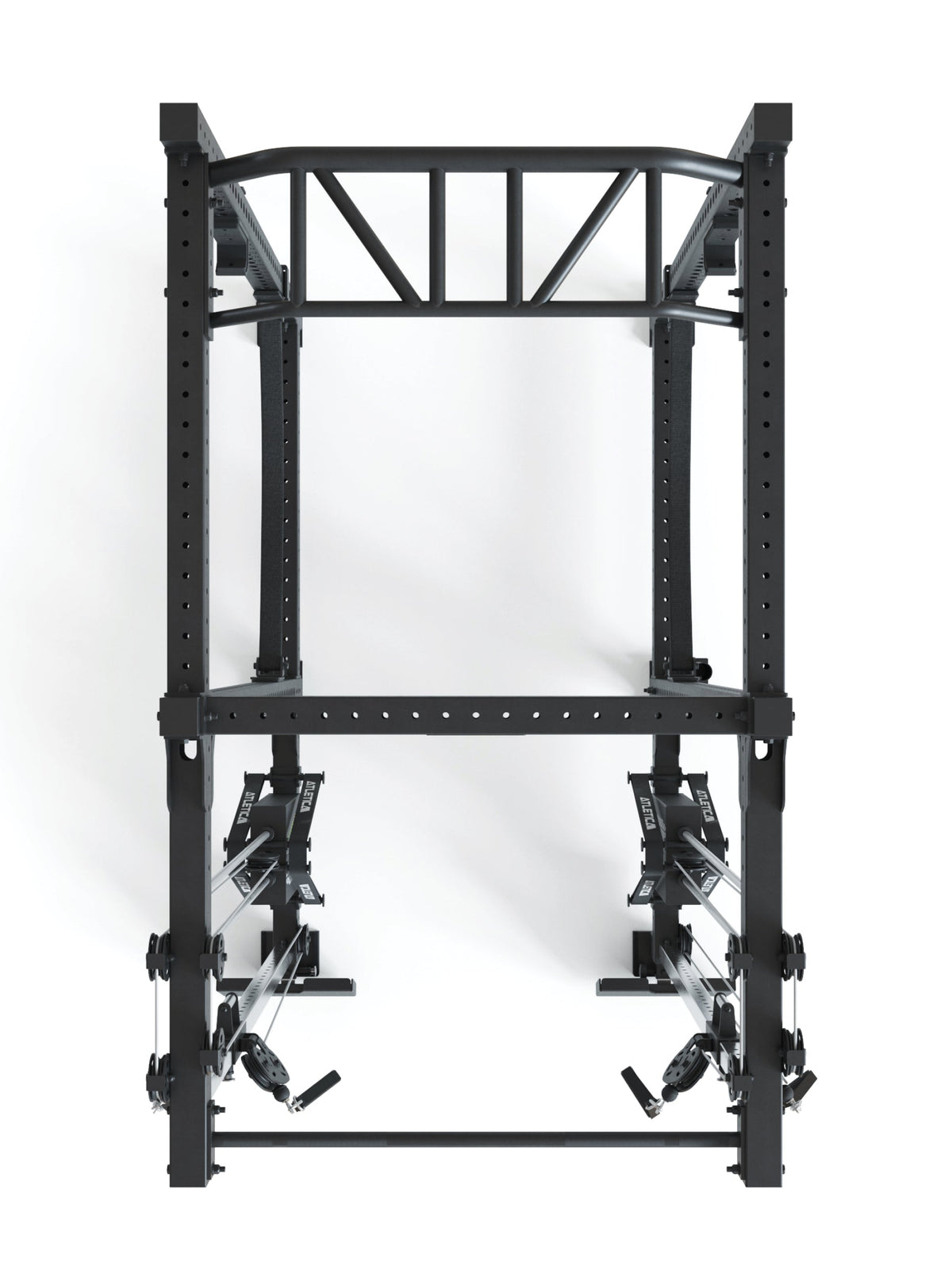

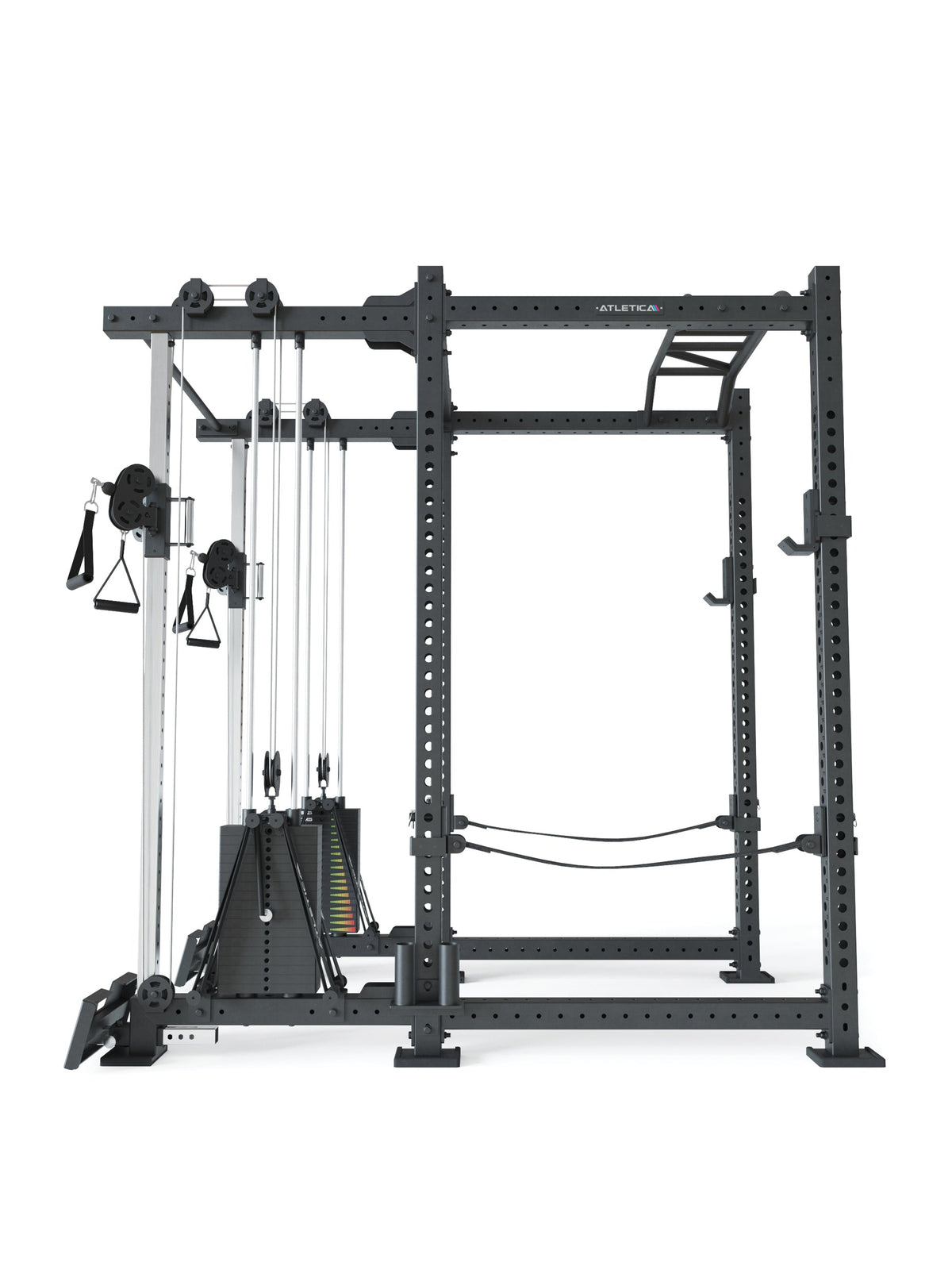

- R8 Duality PRO Long: 48" wide with an inner dimension of 52", designed for all common barbells; 3"x3" 11-gauge steel profile and a net weight of 980 lb for extremely high stability

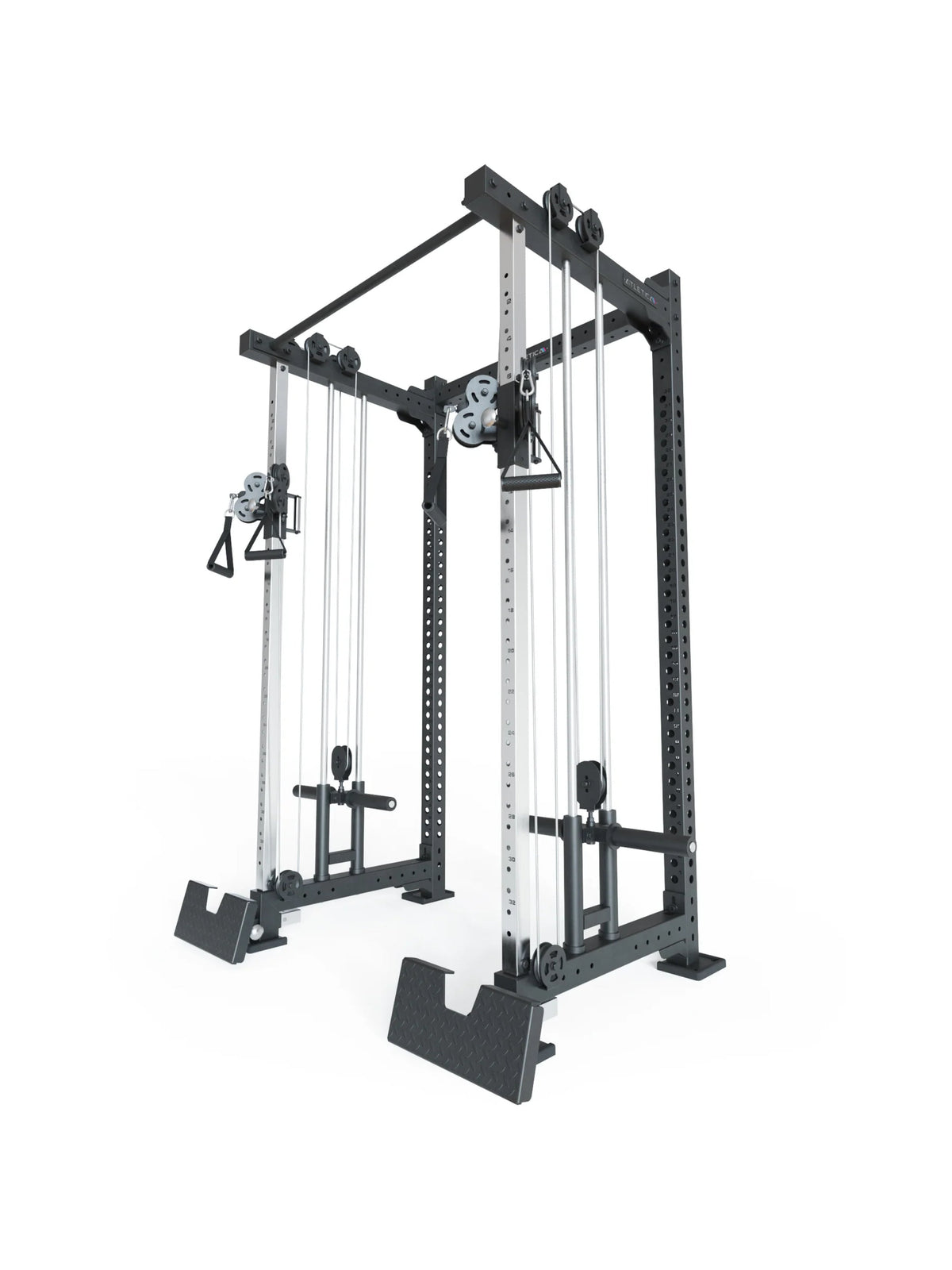

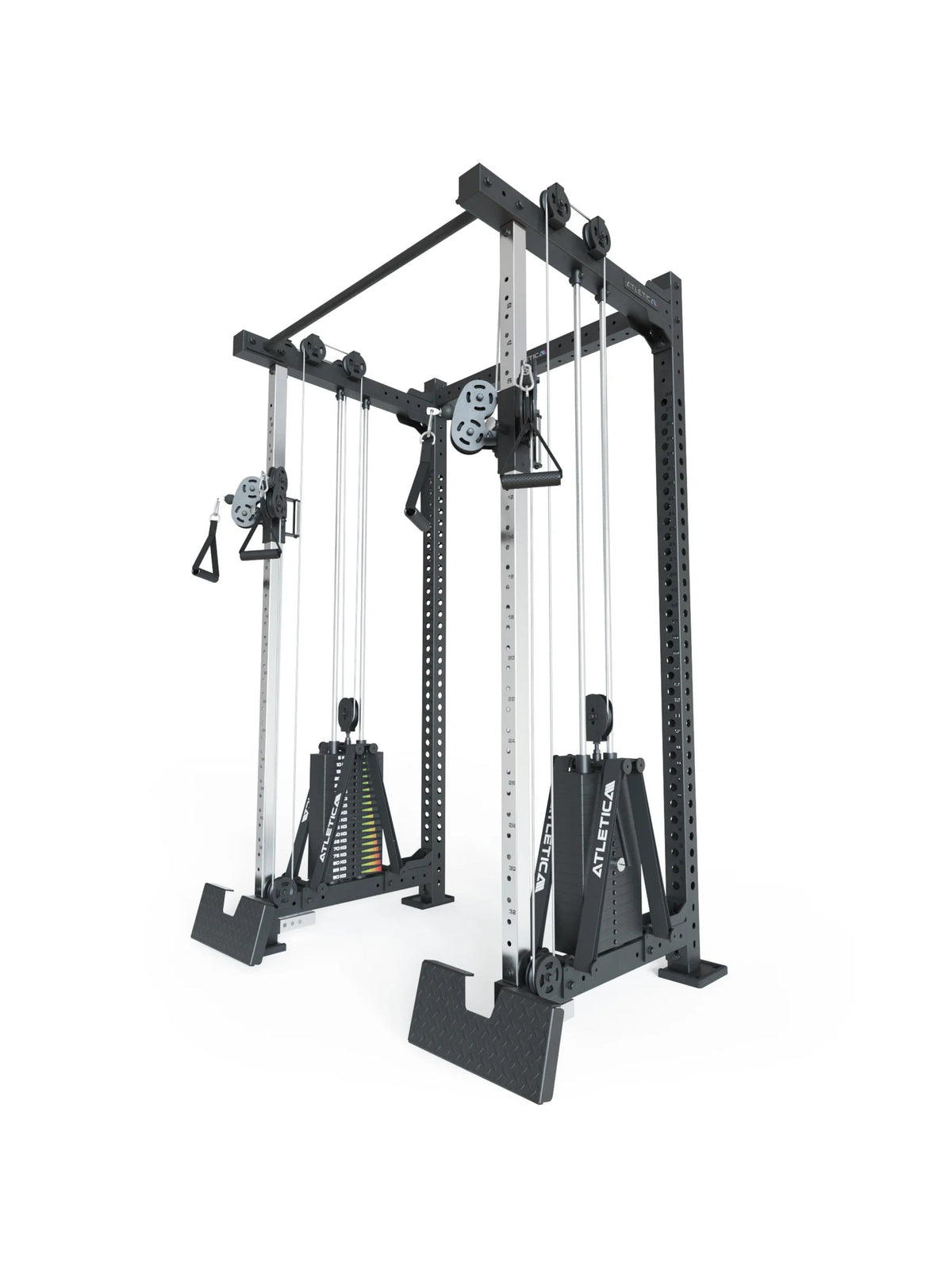

- R8 Nitro Stand-alone: freestanding, requires no wall mounting, and can be placed directly against the wall to save space

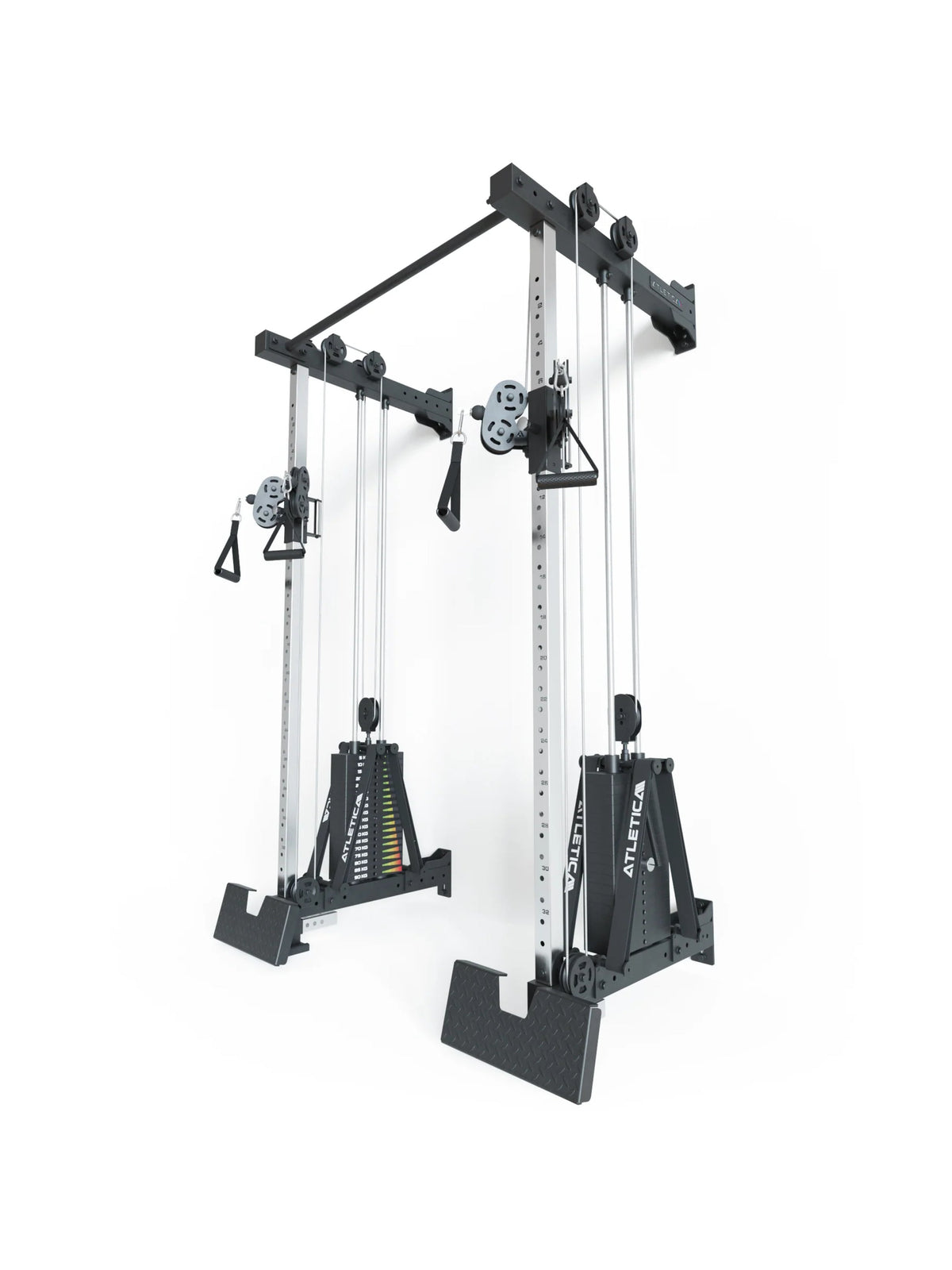

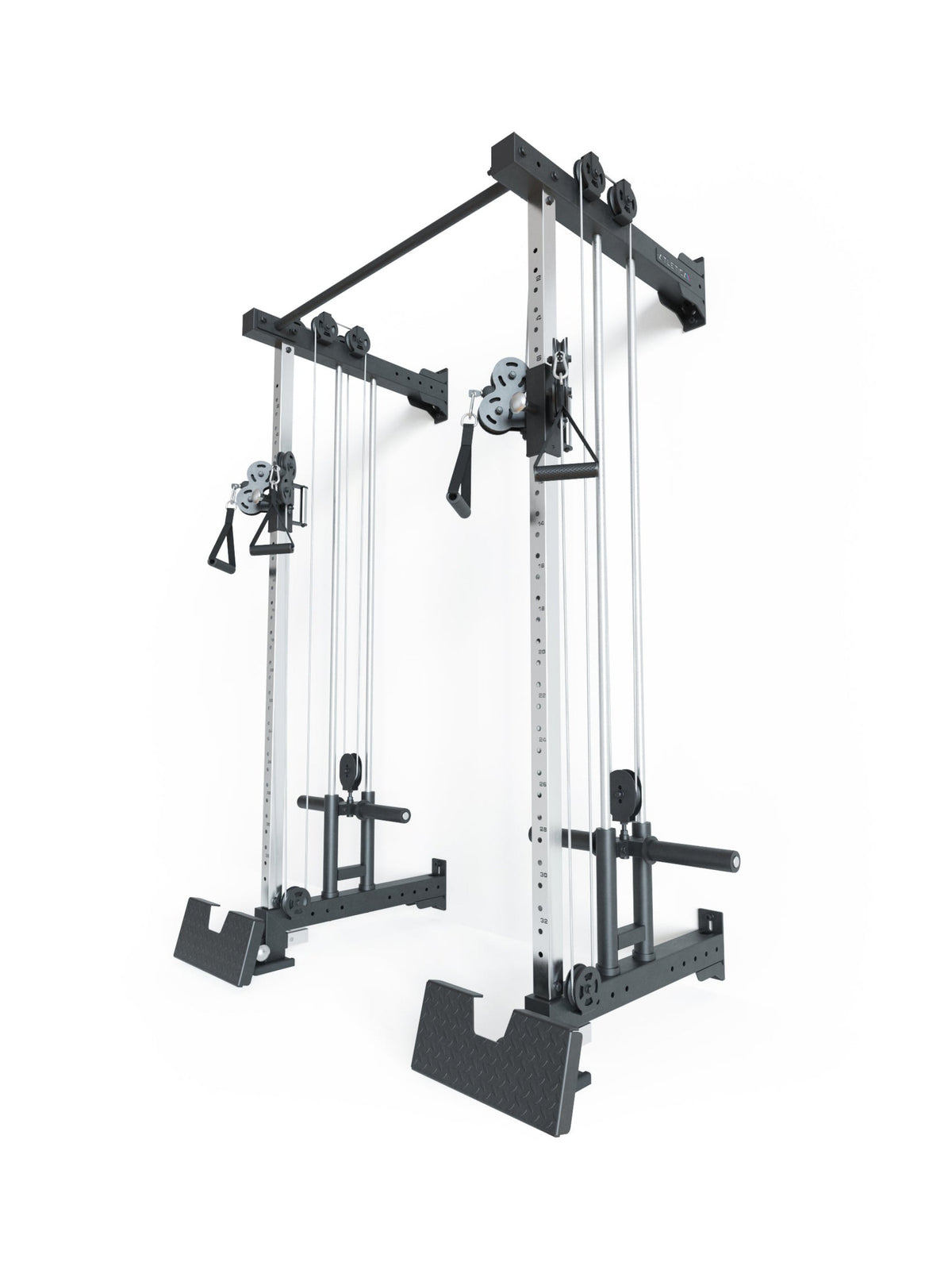

- R8 Nitro Wall Mounted: omitting the two rear uprights and the crossmember saves 3" in rack depth compared to the stand-alone version; bolted into a solid wall it becomes a rock in the surf
- Color: Matte Black
Basic equipment

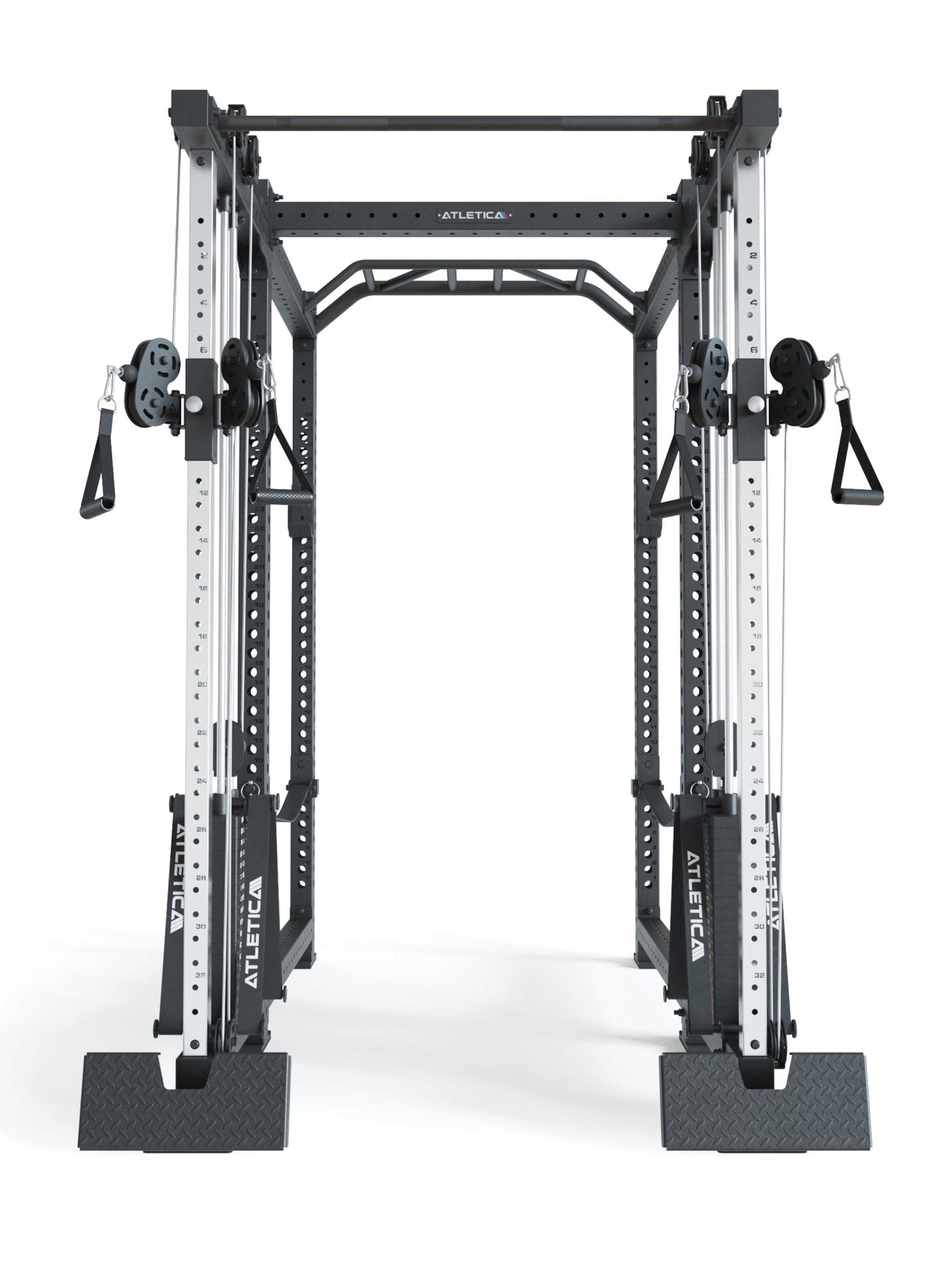

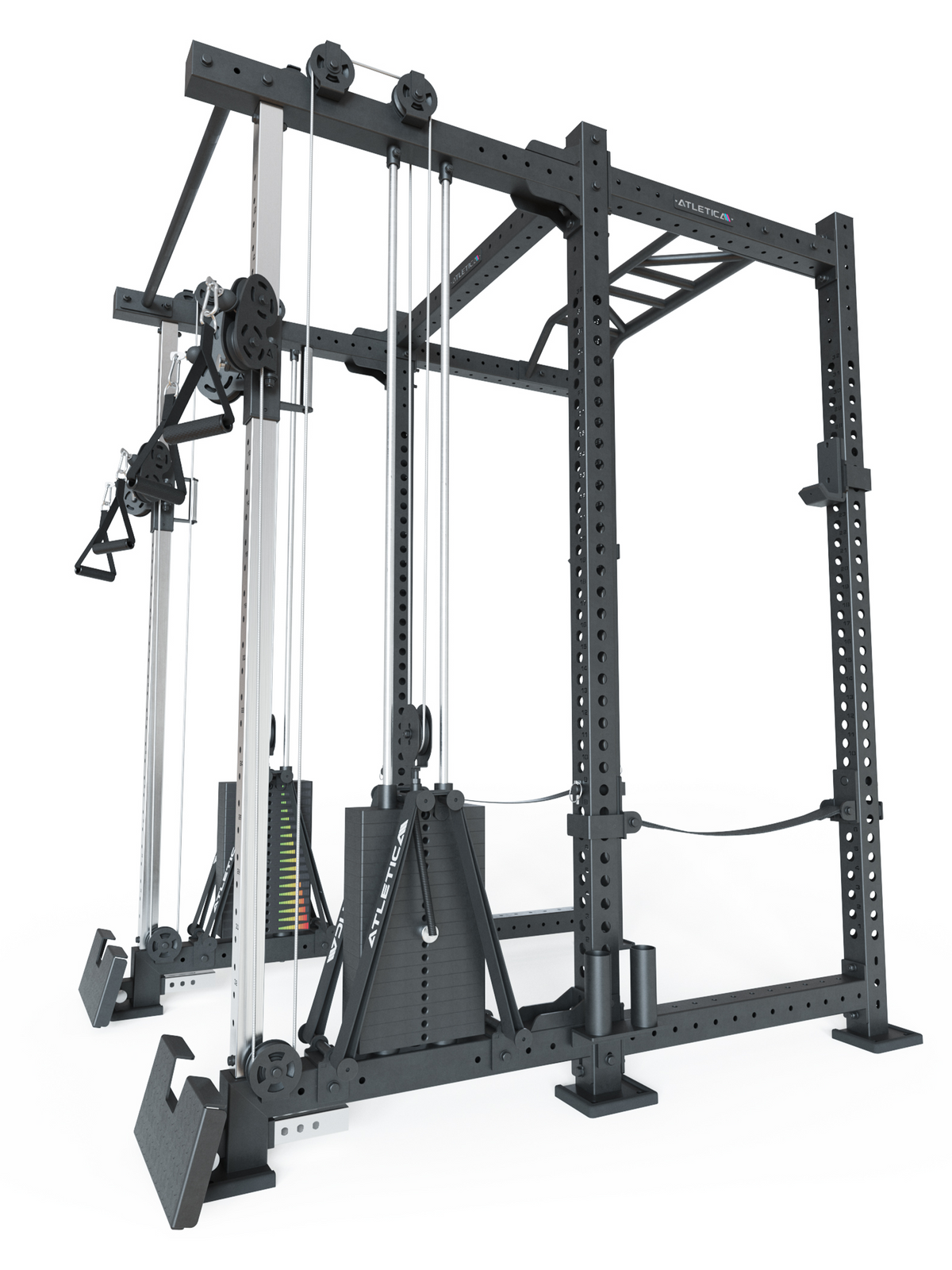

- Two functional trainers, each fitted with two handles, so two people can train at the same time
- Power Cage models: safety shelf with Safety Straps that protect you from injury during muscle failure, a Multi-Grip Pull-Up Bar for a wide range of grip variations in your back training, and a Double Bar Holder that stores up to two barbells space-savingly in an upright position
- A regular Pull-Up Bar with medium-sharp knurling and a pair of J-Hooks for your free-weight training come as standard
- R8 Nitro Stand-alone: J-Hooks and other attachments can be fitted to the rear to expand it into a full Power Rack for squats, (incline) bench press and more

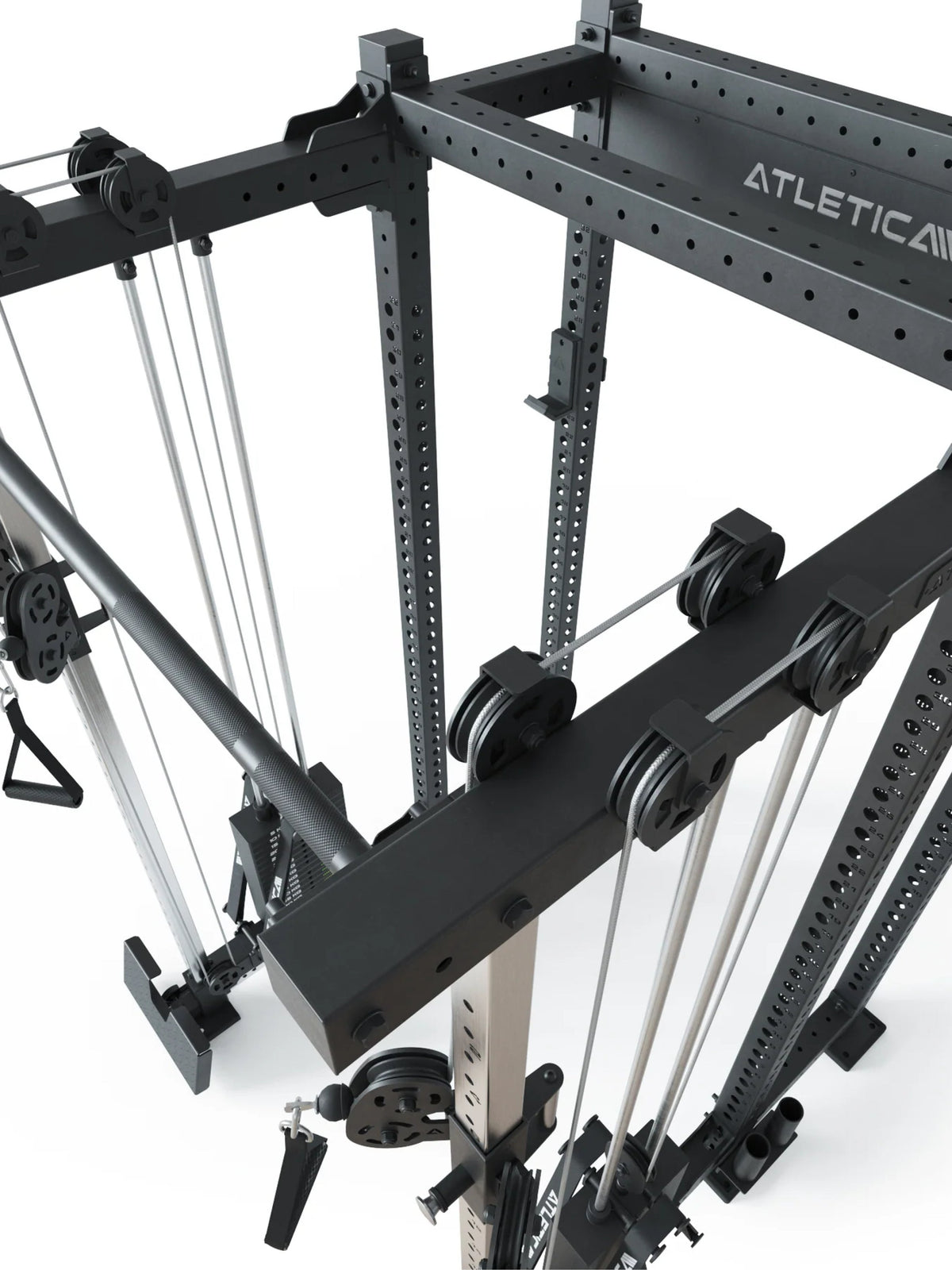

Cable pulley & adjustment

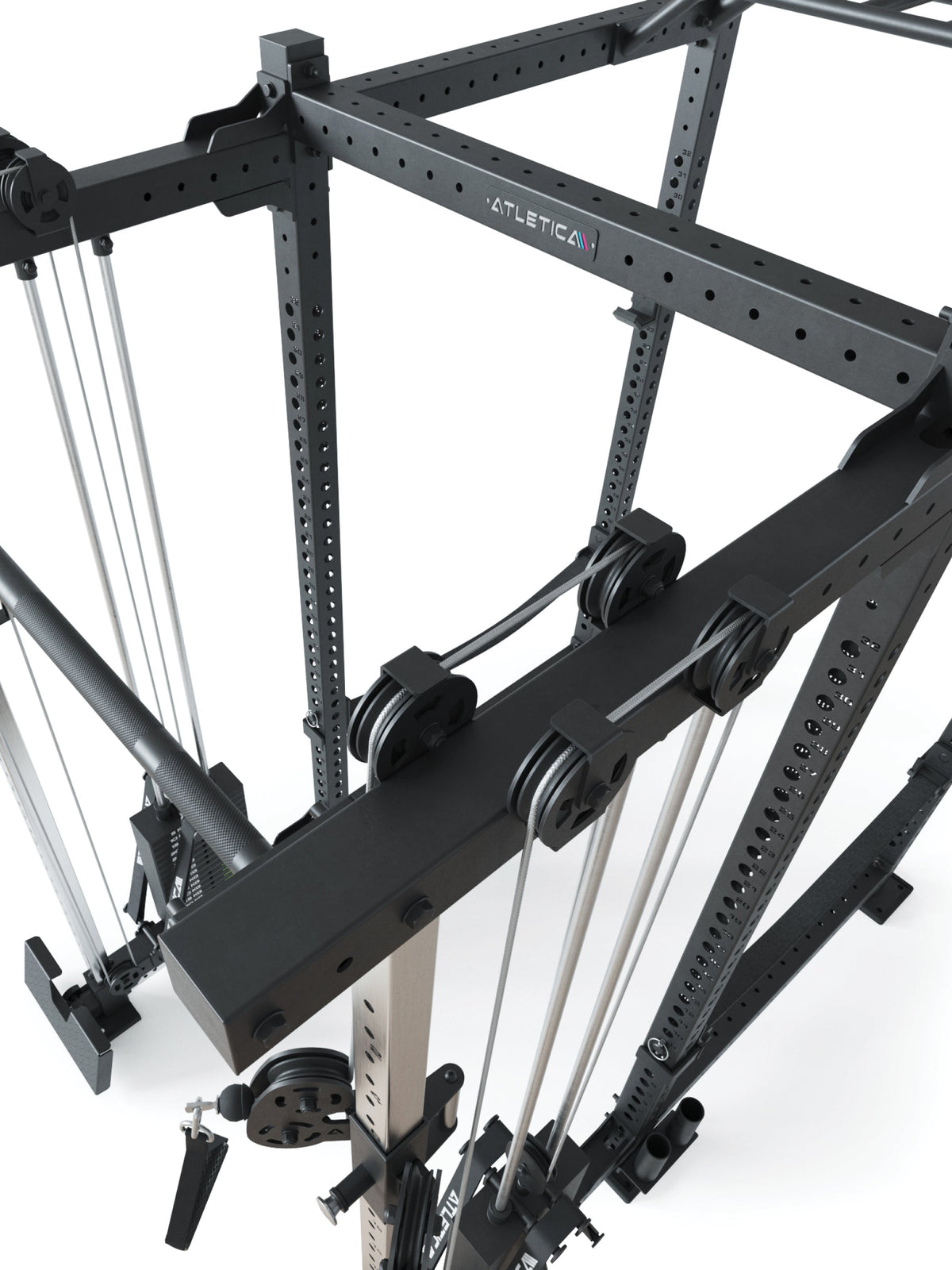

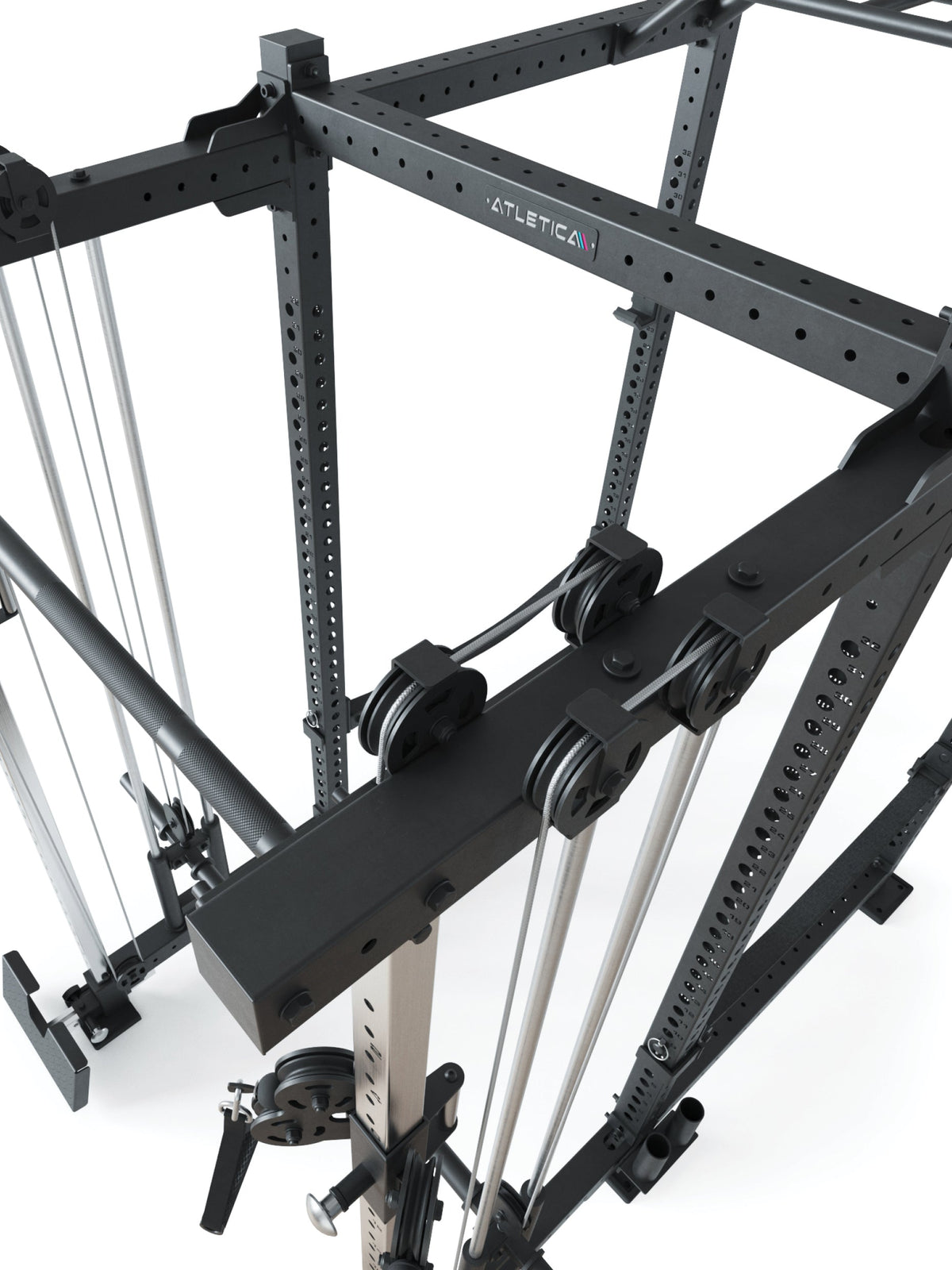

- The two pulleys work independently of each other, can be used for unilateral exercises and enrich your training with countless cable pulley exercises
- Each pulley is height-adjustable in 34 positions and swiveling; the lower settings are used for rowing exercises
- Footrests enable a stable seated position; the footrest of the low row is 6-way adjustable
- The cable ratio is 2:1 when you pull on one handle and 1:1 when you pull on both simultaneously

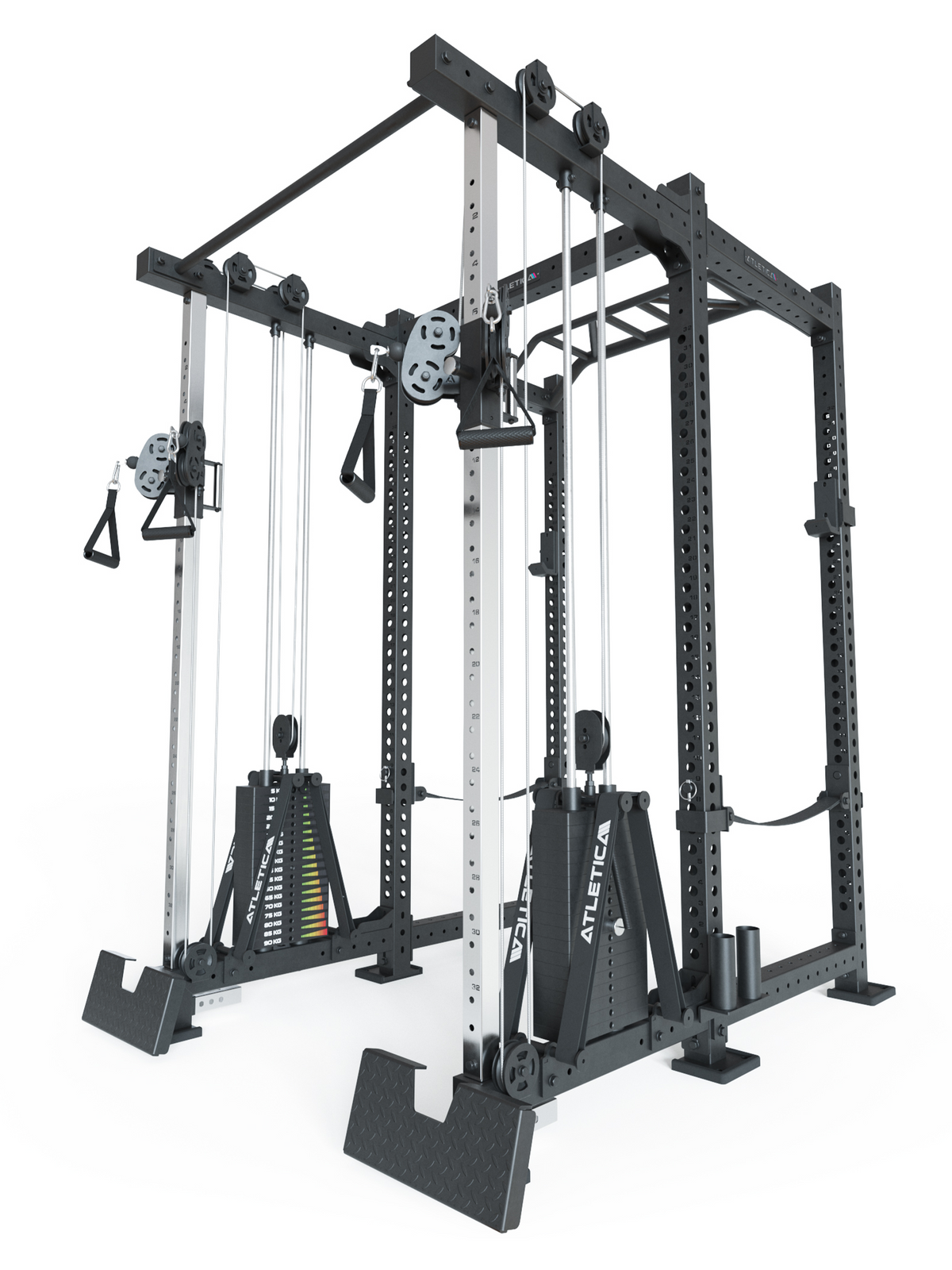

- Stack-weight models: the 190 lb stacks are divided into 19 plates of 10 lb each and allow small weight increments, adjusted in seconds using a pin

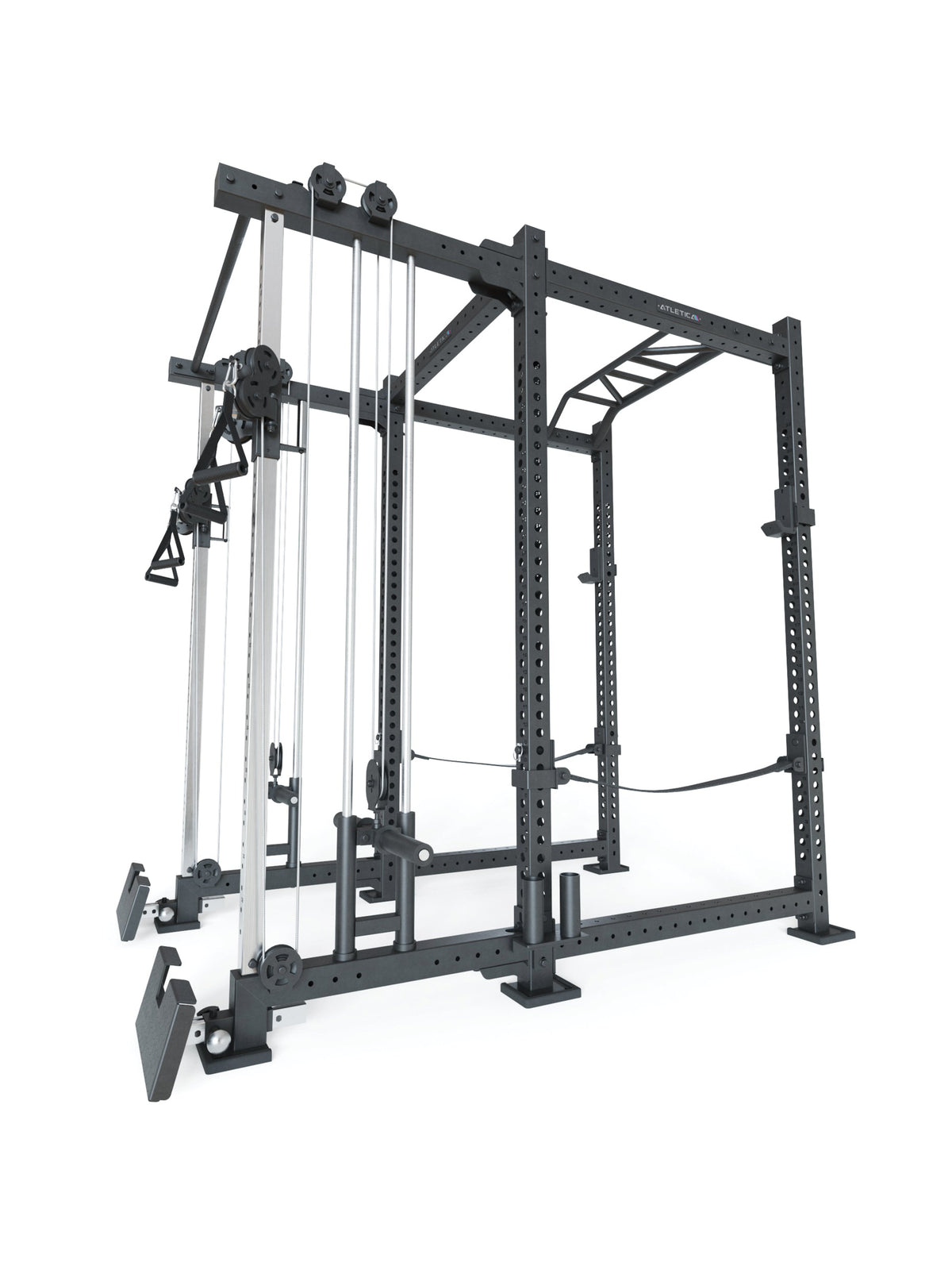

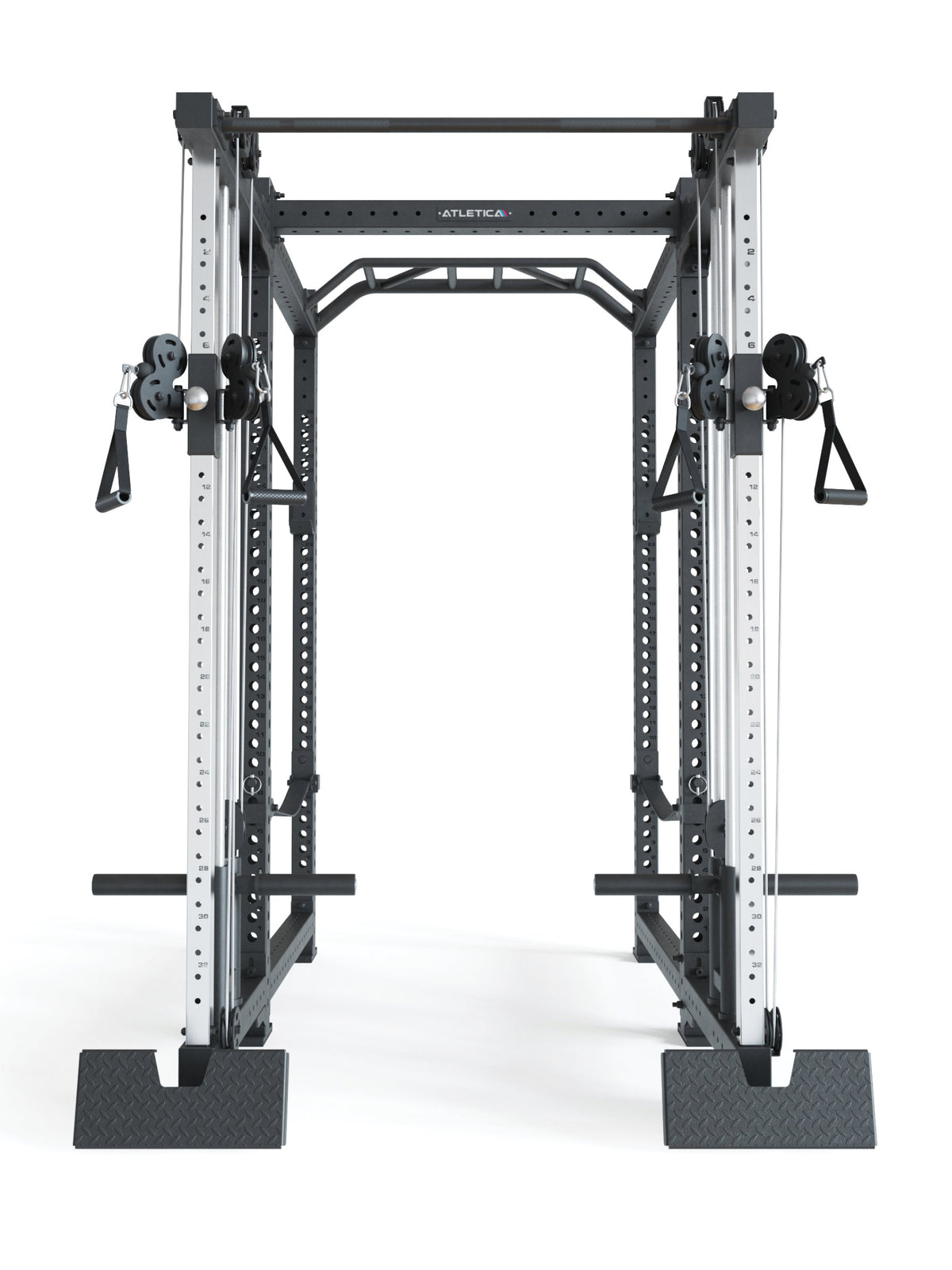

- Plate-loaded models: the plate sleeves of the weight carriages are each 8.5" long and 2" (50 mm) in diameter
Full-body training
- Both weight-intensive exercises such as heavy lat pulldowns and isolation exercises with less weight, such as triceps pushdowns or biceps curls, are possible at the two functional trainers
- Lat pulldowns and rows for the back, flys and chest press for the chest, goblet squats for the legs
- Crossover reverse flys for the shoulders, triceps presses for the triceps, curls for the biceps, crunches for the abs and kick-backs for the glutes
- Perform all basic exercises in the rack with a barbell, then round off your full-body workout at the cable cross with isolation exercises
- Pull-ups in different variations are also possible on the integrated Pull-Up Bar
Item ID
| SKU | 555-1743 | 111-1438 | 111-1440 | 111-1439 | 111-1442 | 111-1443 | 555-1756 | 555-1757 |
| EAN | 4260754390970 | 4262577714209 | 4262577714216 | 4262577714223 | 4262577714230 | 4262577714247 | 4260754394688 | 4260754394695 |
Base Frame
| Steel type | Alloy Steel |
|---|---|
| Square tube | front: 2"x2"; rear: 3"x3" |
| Metal thickness | 11-gauge |
| Coating | Double powder coating |
| Corrosion resistance | Zinc Alloy |
Hole Pattern & Compatibility
| Hole grid | 2" (50 mm) |
|---|---|
| Hole (Pin) | 1" (25 mm) |
| Center distance of the hole | 2" (50 mm) |
| Numbering and scaling | 32-position laser engraved + 9-position Ultra-Fine Adjustment CrossBars |
| ATLETICA compatibility | All ATLETICA R8 Attachments - Modular Concept |
Cable Pulley
| Weight loading | Weight Stack |
|---|---|
| Gradation | 10 lb |
| Weight block | 2 x 190 lb (380 lb total) |
| Gear ratio | 1:1 or 2:1 |
| Rollers | Plastic |
| Cable | Quadruple-sheathed steel cable |
| Cable pull rotation | 180° |
Warranty & Certification
| Basic frame guarantee | LifeTime |
|---|---|
| Attachment device guarantee | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
|---|---|
| Appointment | Email announcement with date selection |
| Assembly time | 2h, 2-Person |
| Tools required | Wrench Set 13, 17, 19 |
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Carrier pickup on preferred date |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
