R8 Smith Machine Attachment
Compatible with all R8 Power Rack depths | Smith Machine attachment kit | Linear bearing | Integrated 50 mm solid-metal Barbell
R8 Smith Machine Attachment
Sale Price$889.00
Product Features
The R8 Smith Machine From Atletica
- The attachment gives your Squat Rack more stability across a variety of exercises
- It turns your R8 Power Rack into a high-quality Smith Machine

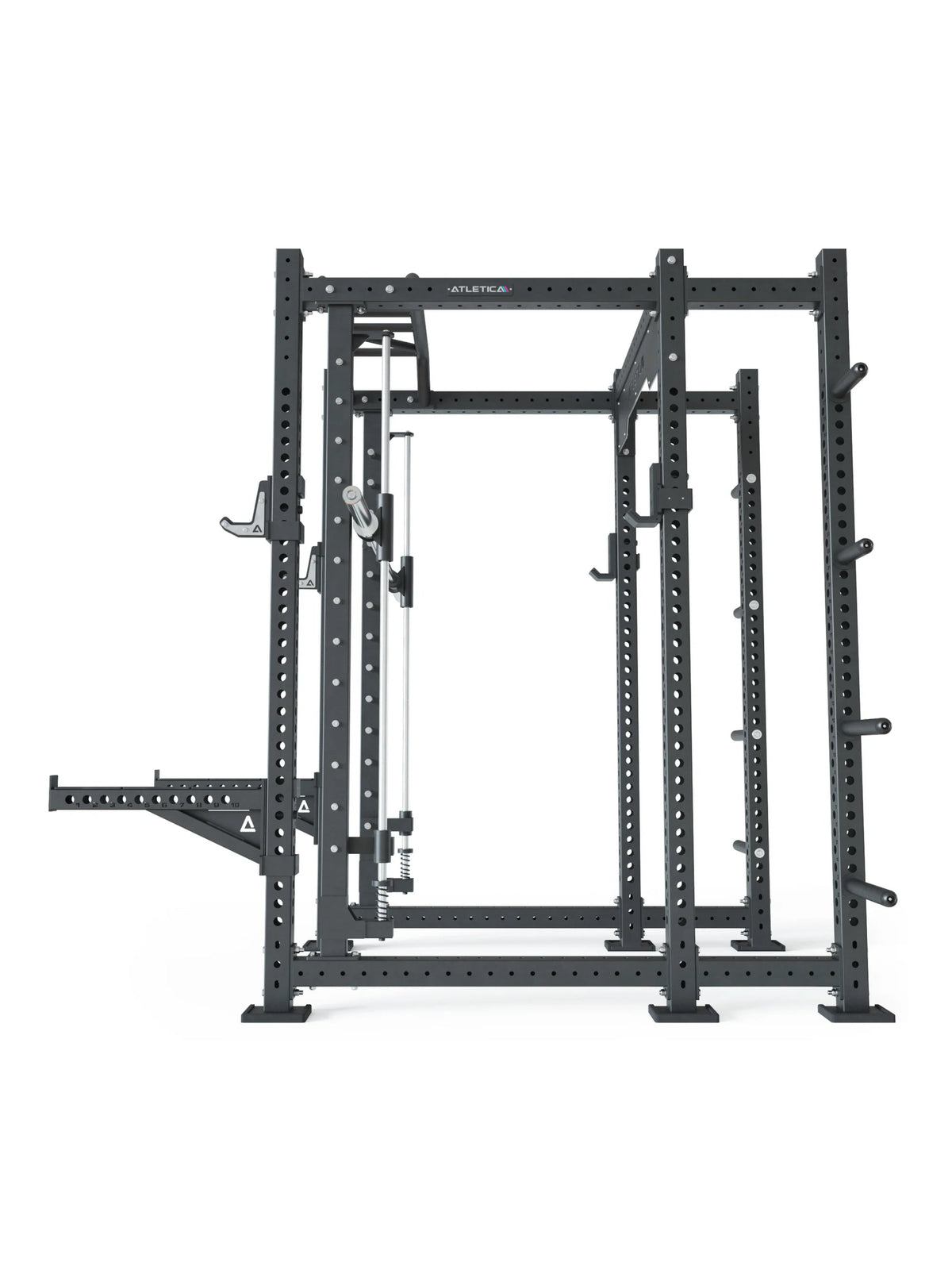

- The Smith Machine can be mounted anywhere on an R8 Power Rack upright (front or back), with a cross bar as the base
- You can install it on all R8 models, no matter the size 43", 30.5", and 16.5"
R8 Smith Machine Equipment

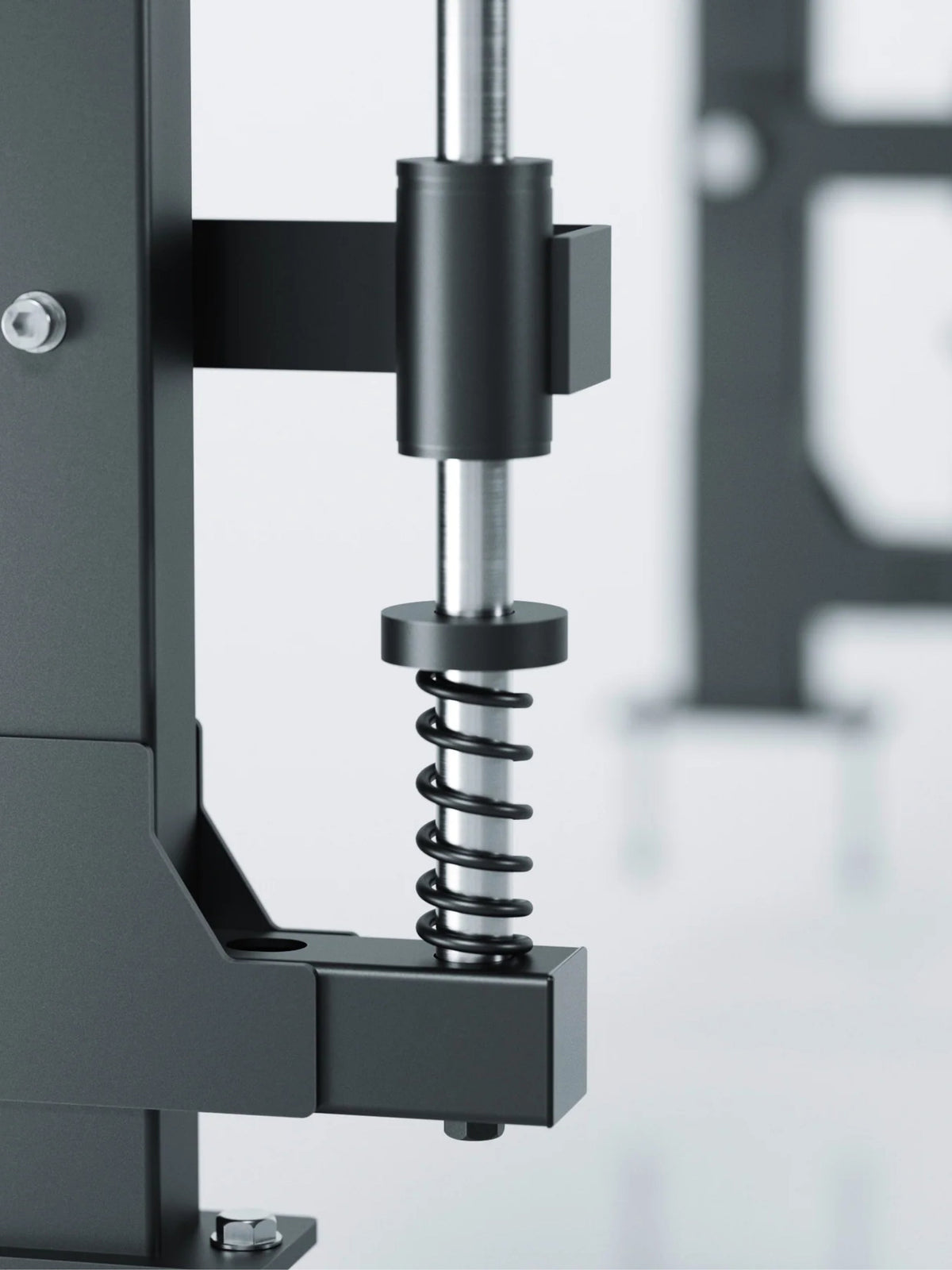

- It's linear ball-bearing mounted, which is the highest bearing grade in the fitness field
- You can use the 13 hook pins for safely hooking and racking the integrated barbell, e.g. at low heights (bench press), in the middle (squats), or high up (overhead military press exercises)
- Deadlifts are cushioned by the suspension at the floor, which reduces noise and impact shocks on the floor
Buy the Atletica R8 Smith Machine
- The integrated bar is made of solid metal (no hollow cavity) and, at 42 lb (19 kg), is comparable in weight to a 50 mm Olympic barbell
- Turn your Power Rack into a multifunctional Smith Machine – with your R8 Smith Machine from Atletica
Item ID
| SKU | 555-1560 |
| EAN | 4260754396514 |
Specifications
| Height | 76" |
| Width | 9.5" |
| Depth | 9.5" |
| Net Weight | 185 lb |
| Length | 82" |

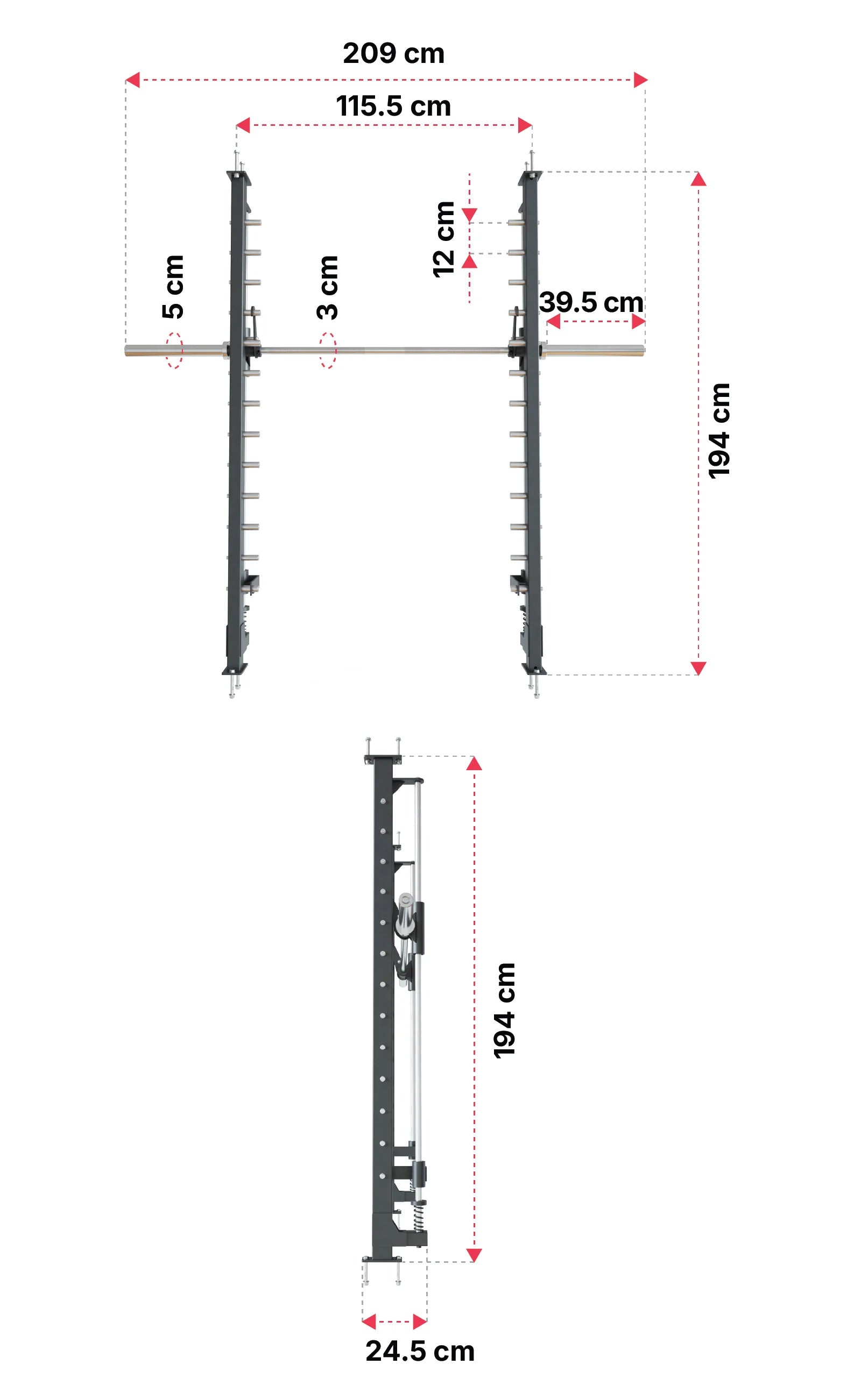

Dimensions
| Length | 9.5" |
| Width | 46" (with sleeves 82") |
| Height | 76" |
| Net Weight | 185 lb |
| Color | Graphite Black |
Features
| Steel Type | Alloy Steel |
| Square Tube | 3"x3" |
| Hole Spacing | 50mm |
| Bore (Pin) | 25mm |
| Metal Thickness | 11-gauge |
| Pin Spacing | 4.5" |
| Number of Pins | 13x |
| Bearing | Linear bearing |
| Coating | Double Powder Coating |
| Corrosion Resistance | Zinc Alloy |
| Connecting Bolts (included) | M12 |
| Compatibility ATLETICA | Suitable for weight plates with 50mm hole diameter |
Policies & What's Included
Attachments/Accessories
| R8 Smith Station | 1x |
Warranty & Certification
| Basic Frame Warranty | LifeTime |
| Attachment Warranty | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
| Scheduled Freight Delivery | Email announcement with date selection |
| Assembly Time | 1h |
| Tools Required | Wrench set 13, 17, 19 |
Service & Return Policy
| Return Policy | 100 days after purchase |
| Return Process | Carrier pickup on preferred date |
Service Included
| Training Plan and Equipment Support | 1h Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
Customer Reviews
The R8 Smith Machine From Atletica
- The attachment gives your Squat Rack more stability across a variety of exercises
- It turns your R8 Power Rack into a high-quality Smith Machine
- The Smith Machine can be mounted anywhere on an R8 Power Rack upright (front or back), with a cross bar as the base
- You can install it on all R8 models, no matter the size 43", 30.5", and 16.5"
R8 Smith Machine Equipment
- It's linear ball-bearing mounted, which is the highest bearing grade in the fitness field
- You can use the 13 hook pins for safely hooking and racking the integrated barbell, e.g. at low heights (bench press), in the middle (squats), or high up (overhead military press exercises)
- Deadlifts are cushioned by the suspension at the floor, which reduces noise and impact shocks on the floor
Buy the Atletica R8 Smith Machine
- The integrated bar is made of solid metal (no hollow cavity) and, at 42 lb (19 kg), is comparable in weight to a 50 mm Olympic barbell
- Turn your Power Rack into a multifunctional Smith Machine – with your R8 Smith Machine from Atletica
Item ID
| SKU | 555-1560 |
| EAN | 4260754396514 |
| Height | 76" |
| Width | 9.5" |
| Depth | 9.5" |
| Net Weight | 185 lb |
| Length | 82" |
Dimensions
| Length | 9.5" |
| Width | 46" (with sleeves 82") |
| Height | 76" |
| Net Weight | 185 lb |
| Color | Graphite Black |
Features
| Steel Type | Alloy Steel |
| Square Tube | 3"x3" |
| Hole Spacing | 50mm |
| Bore (Pin) | 25mm |
| Metal Thickness | 11-gauge |
| Pin Spacing | 4.5" |
| Number of Pins | 13x |
| Bearing | Linear bearing |
| Coating | Double Powder Coating |
| Corrosion Resistance | Zinc Alloy |
| Connecting Bolts (included) | M12 |
| Compatibility ATLETICA | Suitable for weight plates with 50mm hole diameter |
Attachments/Accessories
| R8 Smith Station | 1x |
Warranty & Certification 5
| Warranty | 5 years |
| Approval | EN ISO 20957-1:2013 | EN ISO 20957-4:2016 |
| Application | Fitness commercial gym & garage gym |
Warranty & Certification
| Basic Frame Warranty | LifeTime |
| Attachment Warranty | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
| Scheduled Freight Delivery | Email announcement with date selection |
| Assembly Time | 1h |
| Tools Required | Wrench set 13, 17, 19 |
Service & Return Policy
| Return Policy | 100 days after purchase |
| Return Process | Carrier pickup on preferred date |
Service Included
| Training Plan and Equipment Support | 1h Online Consultation Included |
| Quick Troubleshooting Service | 7-Day Remote Help Service |
