Hybrid functionality
The R8-Bradley combines the stability of a Power Rack with the flexibility of a cable-cross power rack.
Skip to product information
R8 Bradley Long | 380 lb Weight Stacks | Electric Green
Dual Cable Pulley with 380 lb lateral weight stacks | Very stable | Modularly expandable with attachments like Smith Machine and Jammer Arms
$3 289.00
Sale price
$3 289.00
Regular price
100-Days return policy
Free Training App
3289
Loyalty Points
R8
Bradley Long
Modular Design
Based on the R8 Modular Principle, expandable to six posts for maximum adaptability.
Integrated weight stacks
Two side-mounted 190 lb weight stacks (380 lb total) can be flexibly installed in all three R8 Power Rack depths.
Improved stability
The side installation of the weight stacks increases stability, especially during explosive exercises.
Seamless integration
Complete pass-through allows flexible positioning of a weight bench and integration with the R8 Smith Machine.
Tested Quality
TÜV- and GS-certified according to EN 20957:
The Atletica R8 Power Racks meet the highest European safety standards and are suitable for use in commercial gyms.
Dual weight stacks – 2 × 190 lb (380 lb total). Each stack: three 60 lb blocks (6 × 10 lb plates) plus a 10 lb top plate with selector bar. Upgradable to 2 × 250 lb (500 lb total) with one additional 60 lb block per stack (available as an upgrade).

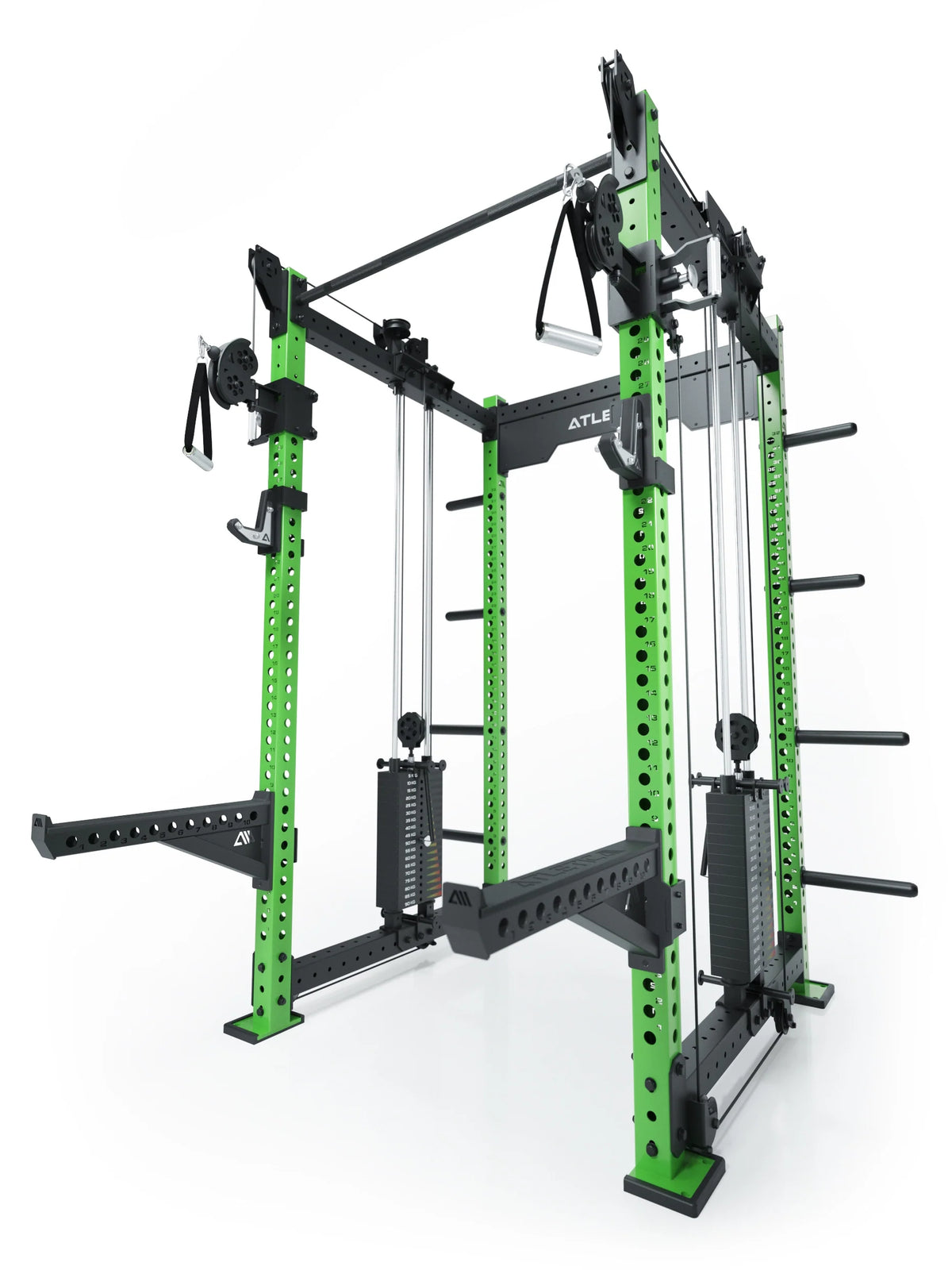

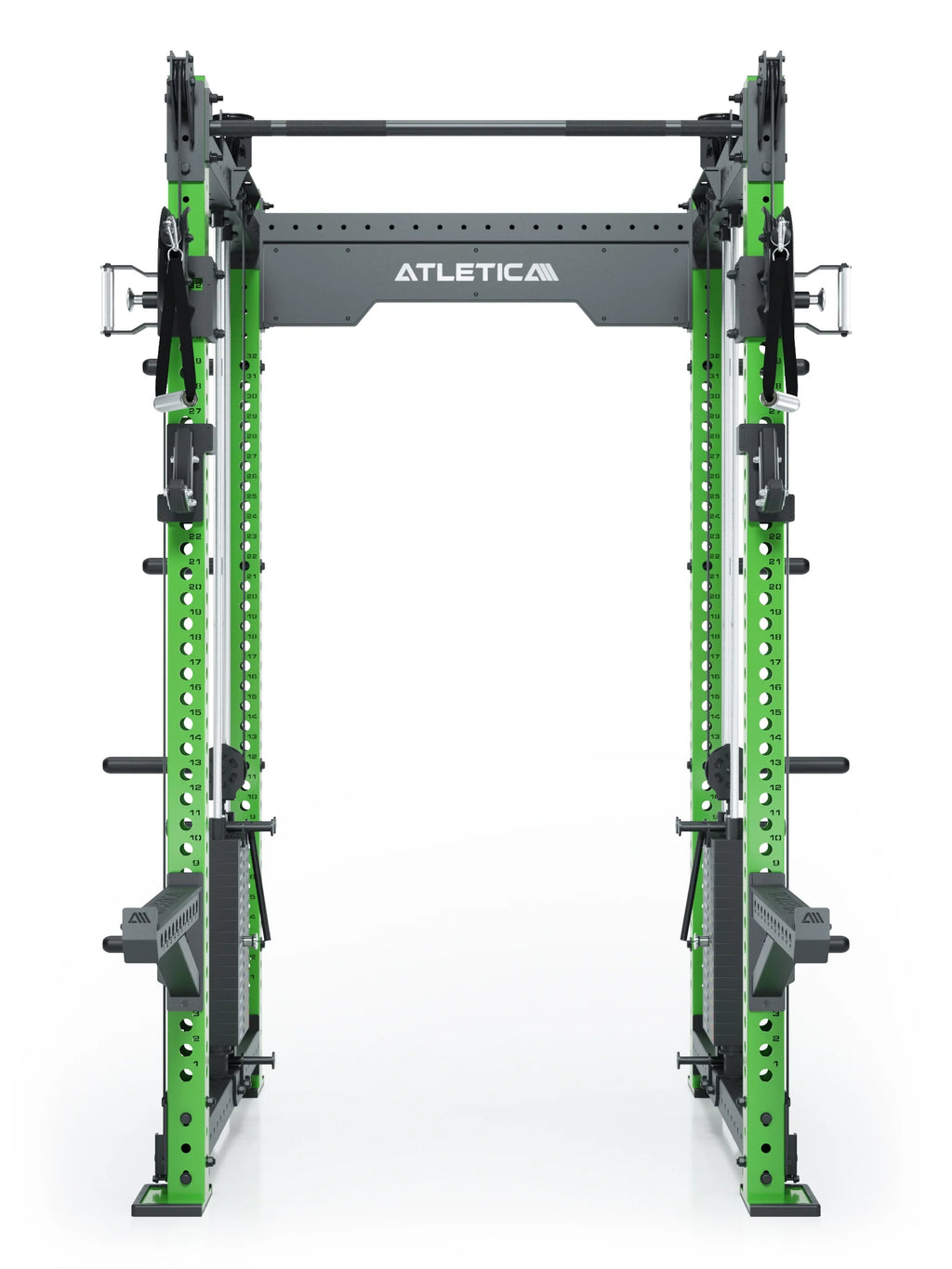

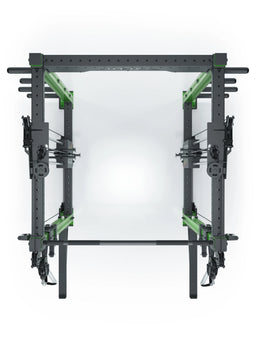

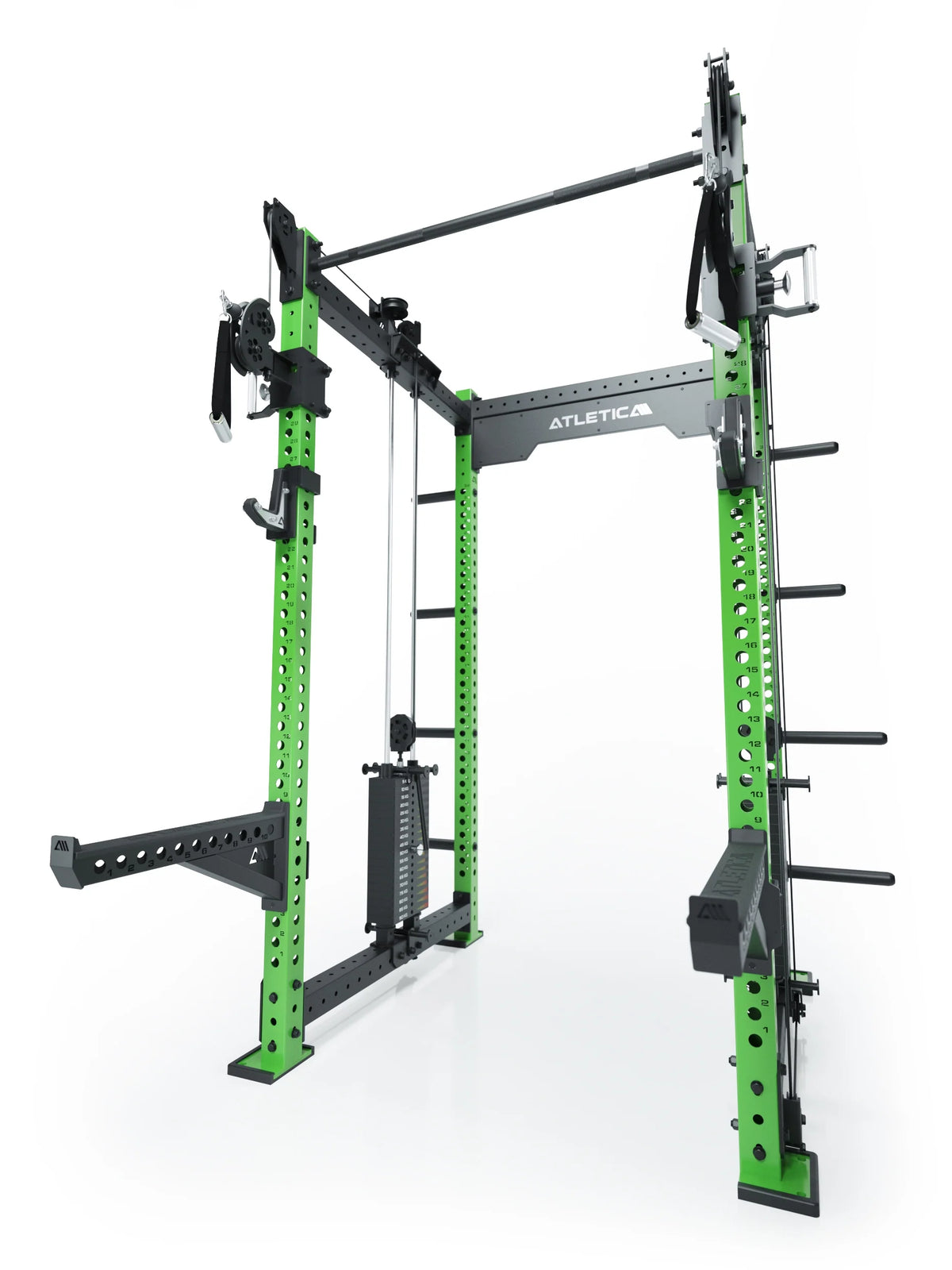

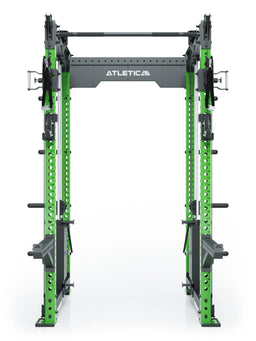

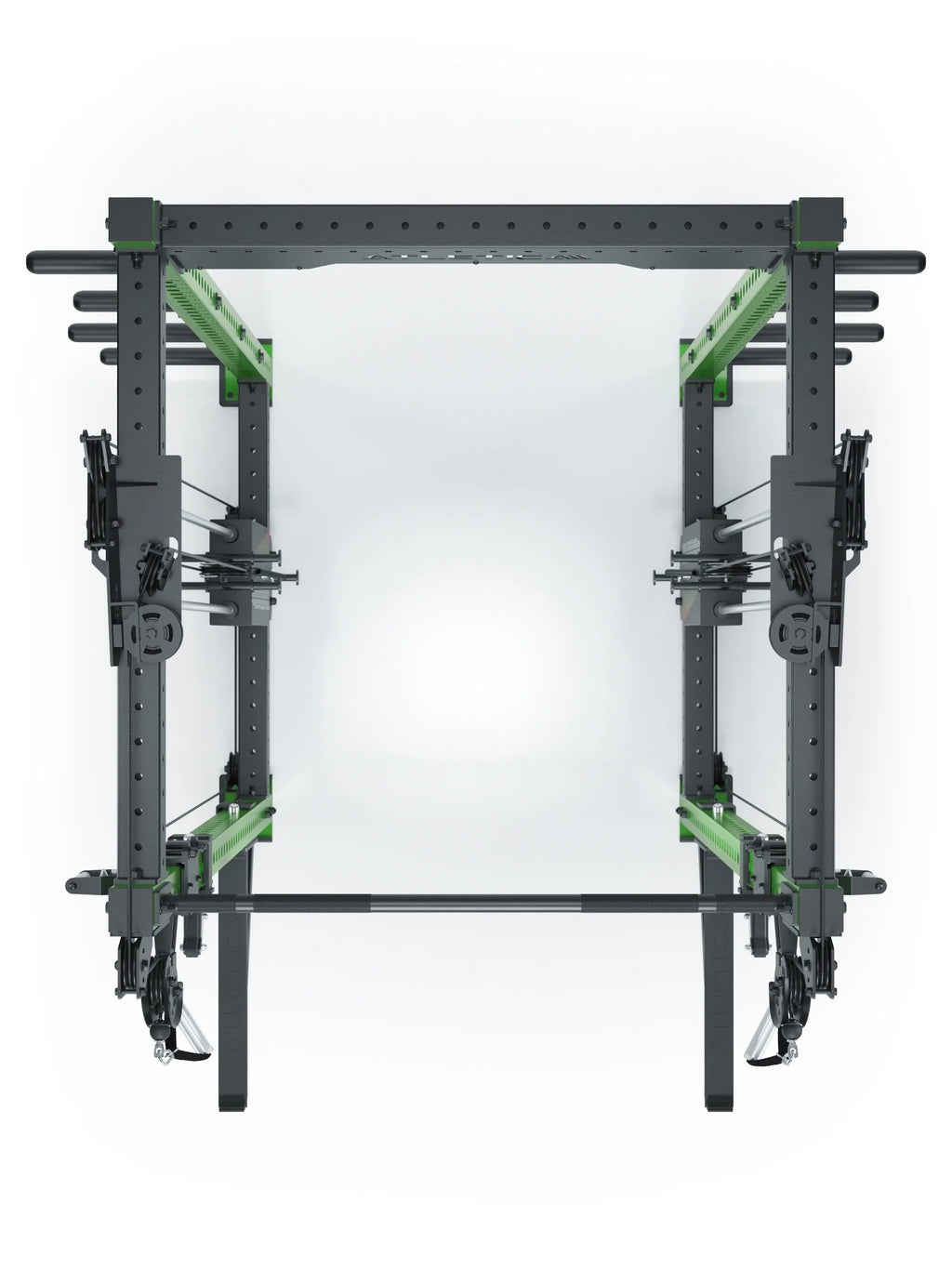

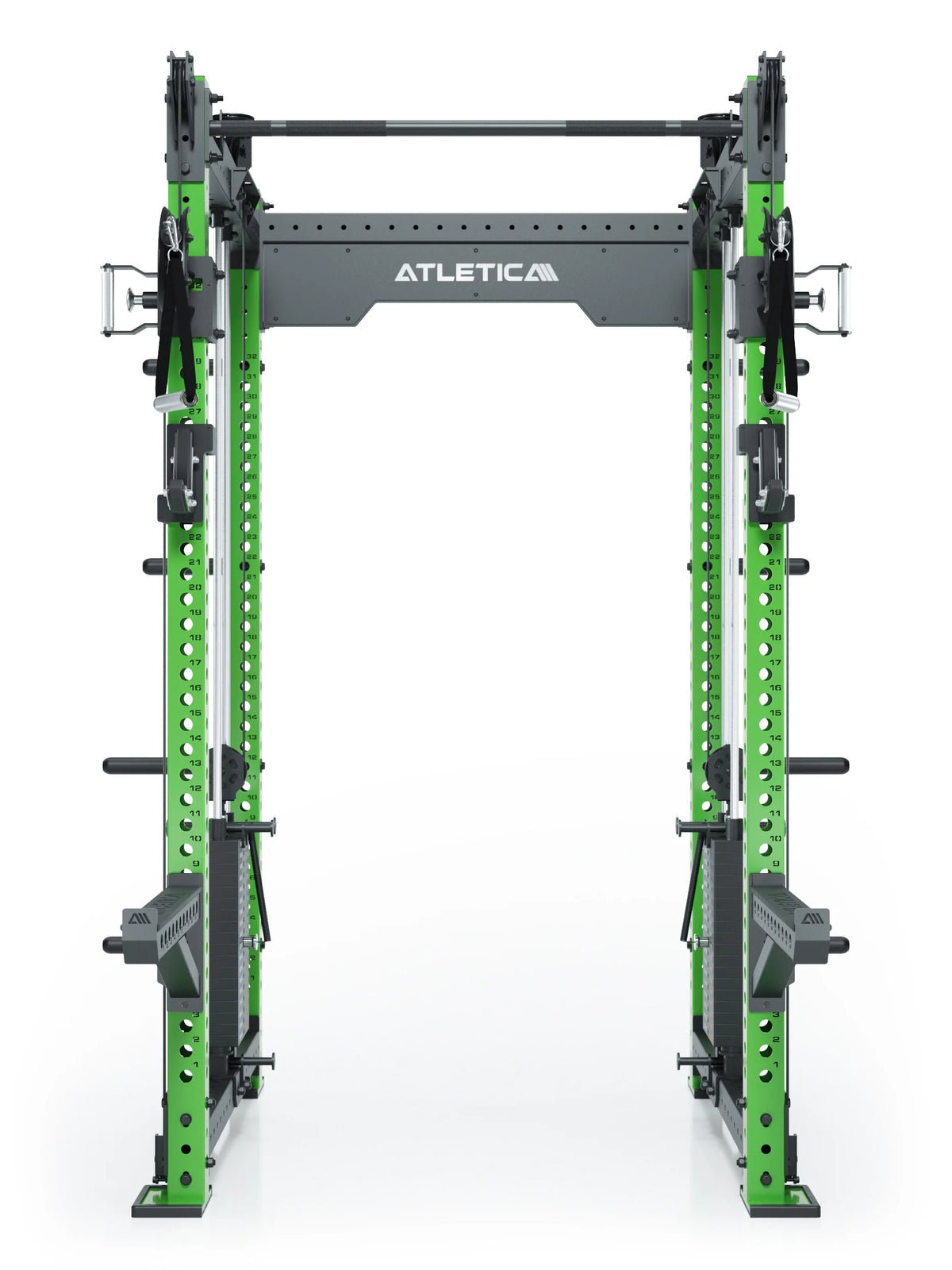

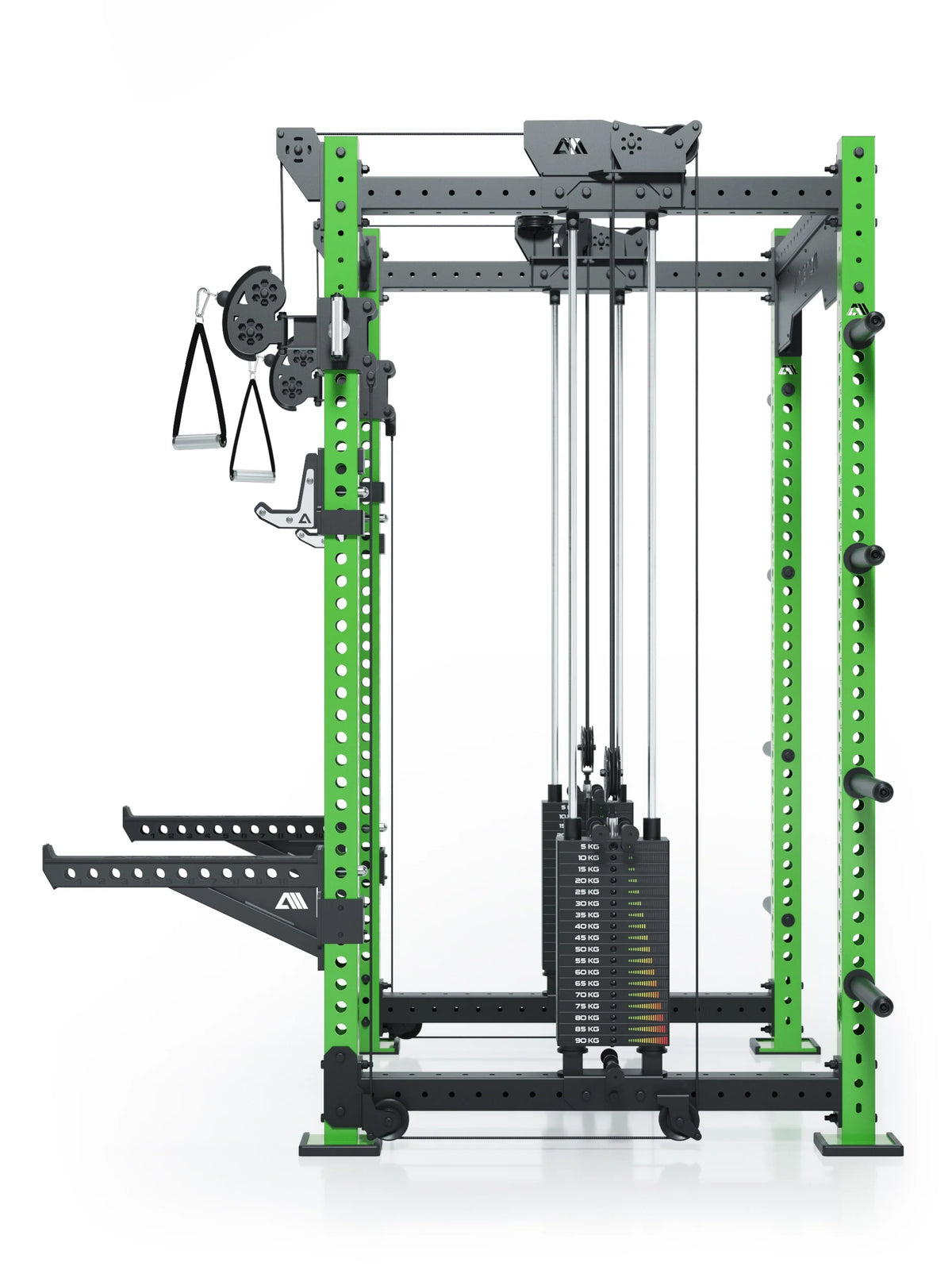

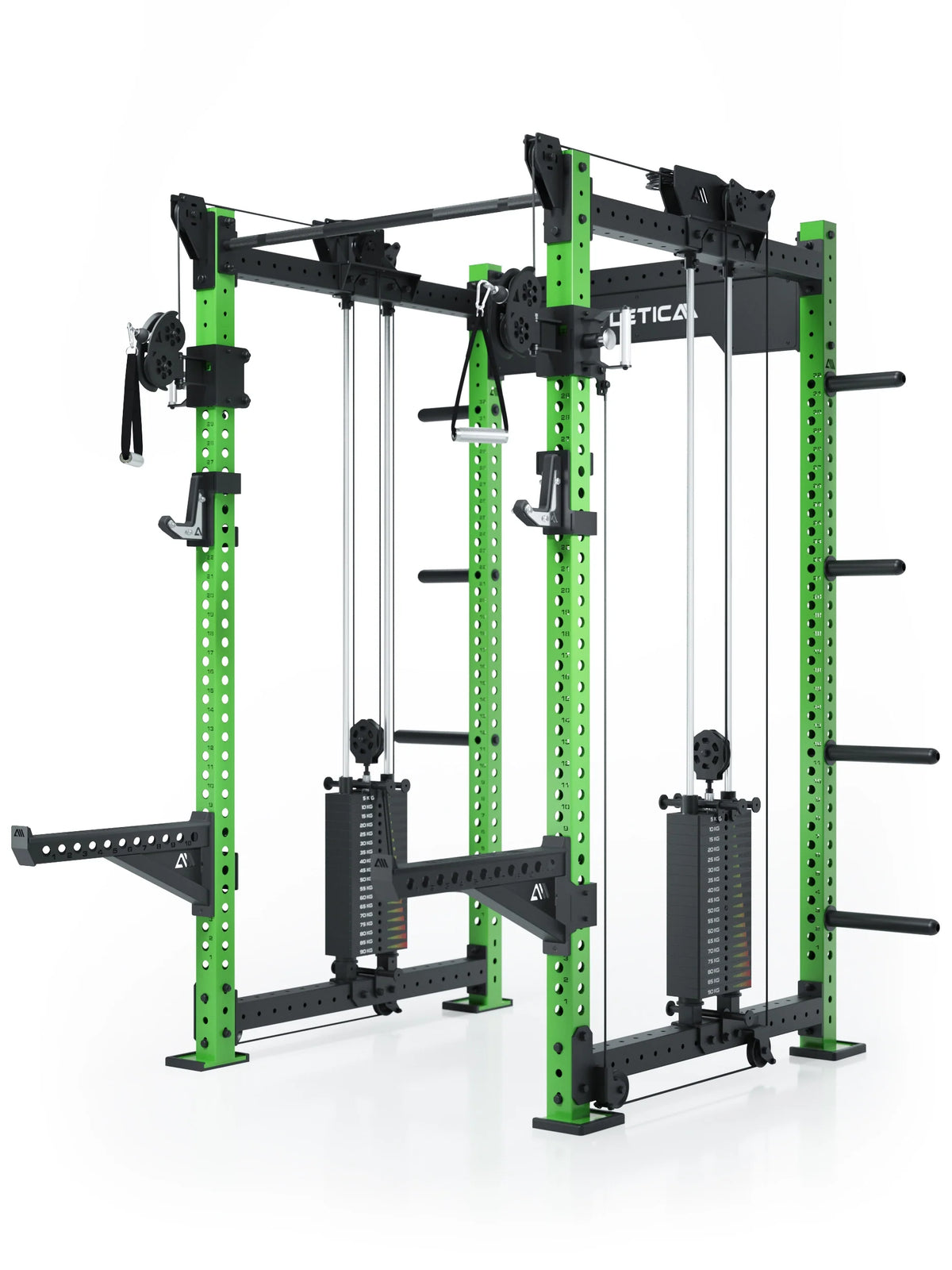

R8-Bradley Long in Electric Green with 380 lb weight stacks
- also available with uprights in Black, Military Green, Sportscar Red, White and Stainless Steel
- The R8-Bradley cable pulley series combines the stability of a Power Rack with the flexibility of a cable-cross functional trainer
- Only at Atletica: Bradley is based on the modular principle of R8 and can, for example, be modularly expanded with uprights to six posts (without front stabilizers)
- In the middle is the core of the R8 Bradley cable pulley series: two lateral weight stacks 380 lb
R8-Bradley basic equipment
- The weight stacks can be installed as desired on all three Power Rack depths of the R8 series (16.5", 30.5", 43")

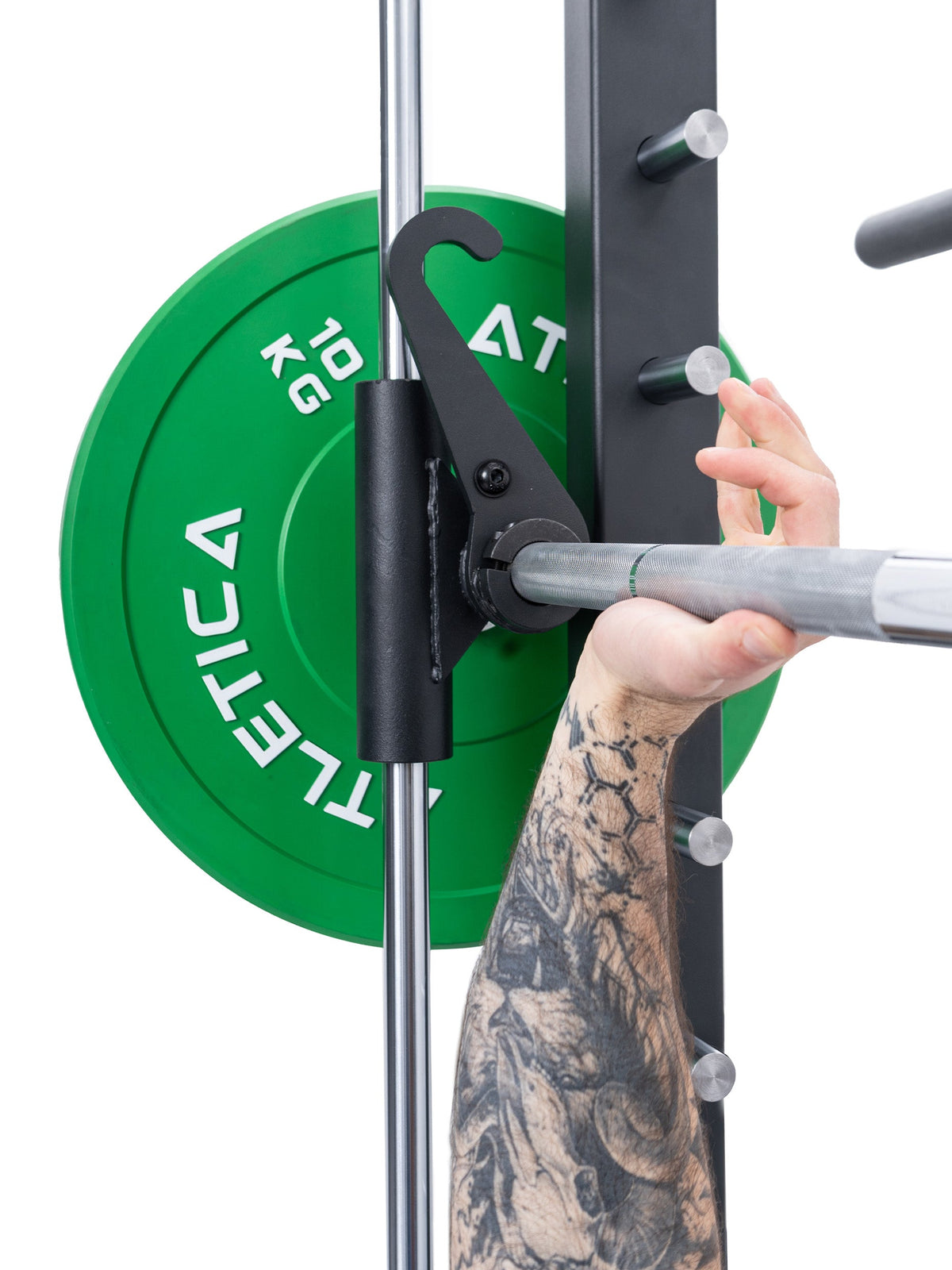

- Also ideally combinable with a downstream R8 Smith Machine, at depths from 30.5"
- The lateral installation of the weight stacks makes the functional trainer more stable, especially during explosive exercises
- With the lateral weights, the R8-Bradley Cable Cross is also completely open, which enables flexible positioning of a weight bench
Cable Cross exercises with countless accessories
- The uprights at the front of the Cable Cross can also be expanded with all attachments of the R8 series: Jammer Arms, J-Hooks, jump platforms, box holders

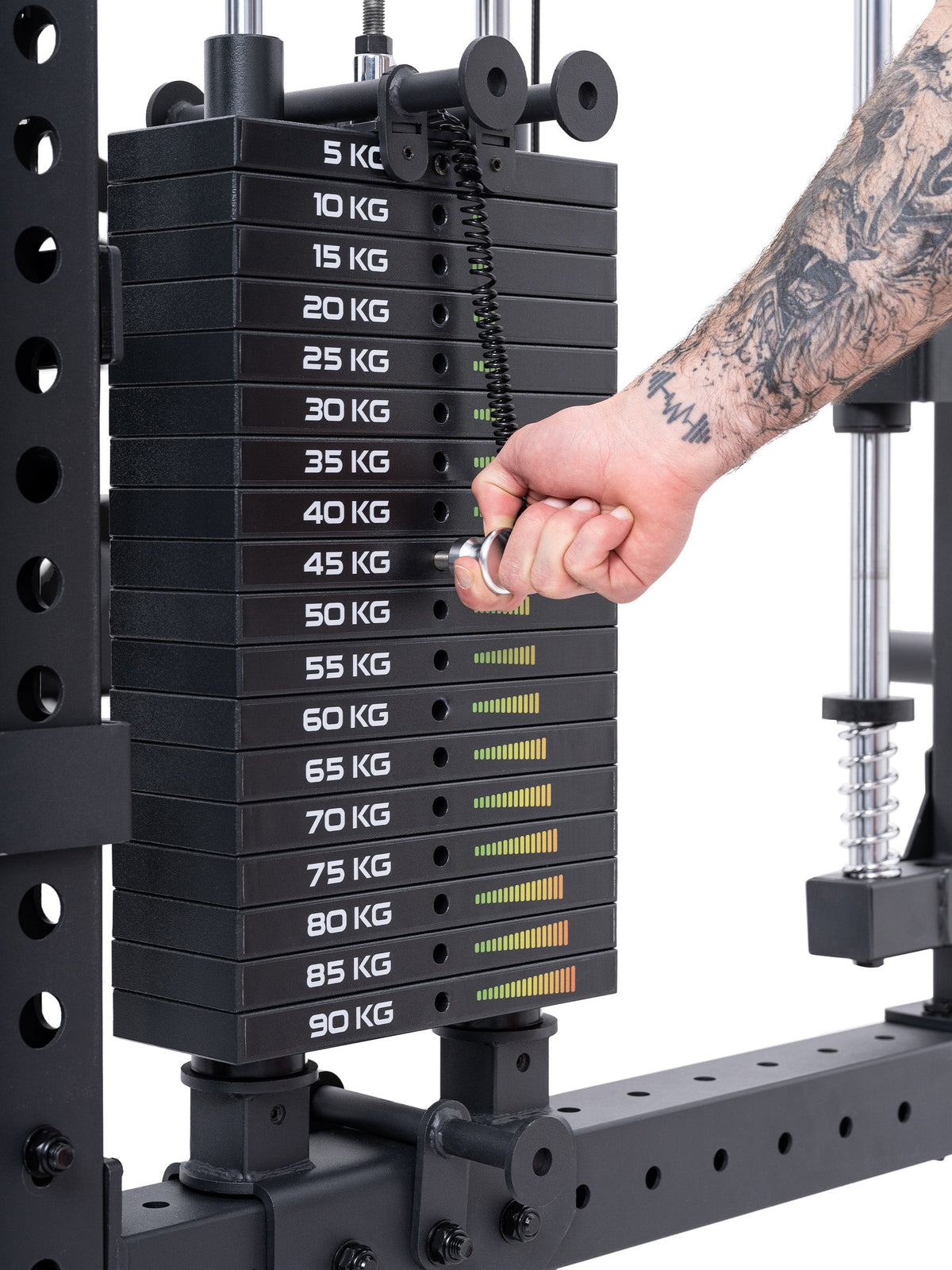

- The weight stacks are accessible and quick to adjust thanks to the magnetic metal pin
- Cable routing and roller mechanism are equivalent to our R8 Alpha as well as our other cable pulley systems
- The R8 Bradley series offers several predefined Power Rack sets and can also be individualized with further attachments
Buy the Atletica R8-Bradley cable pulley – absolute power and more!
- As a versatile machine with countless fitness options in the garage gym, our Cable Cross machine is versatile in use
- Can be integrated easily into our R8 series Power Racks
- Secure your R8-Bradley cable pulley and take your muscles to the next fitness level – with Atletica
Load Limits R8 Bradley
| Upright posts and crossbars | Up to 3,300 lb, tensile strength and PSI load tested |
|---|---|
| Monkey Bar | Up to 880 lb, tensile strength tested |
| Cable Pulley | Up to 990 lb load capacity each |
| Safety Spotter Arms | Up to 1,200 lb per pair, Weight-Drop tested |
| J-Hooks Type 4 | Up to 1,200 lb per J-Hook, Weight-Drop tested |
Dimensions & Footprint
| Height | 91" |
|---|---|
| Width | 48" (without side pins) |
| Depth | 48" Power Rack + 24" Spotter Arms |
| Net Weight | 1,035 lb |

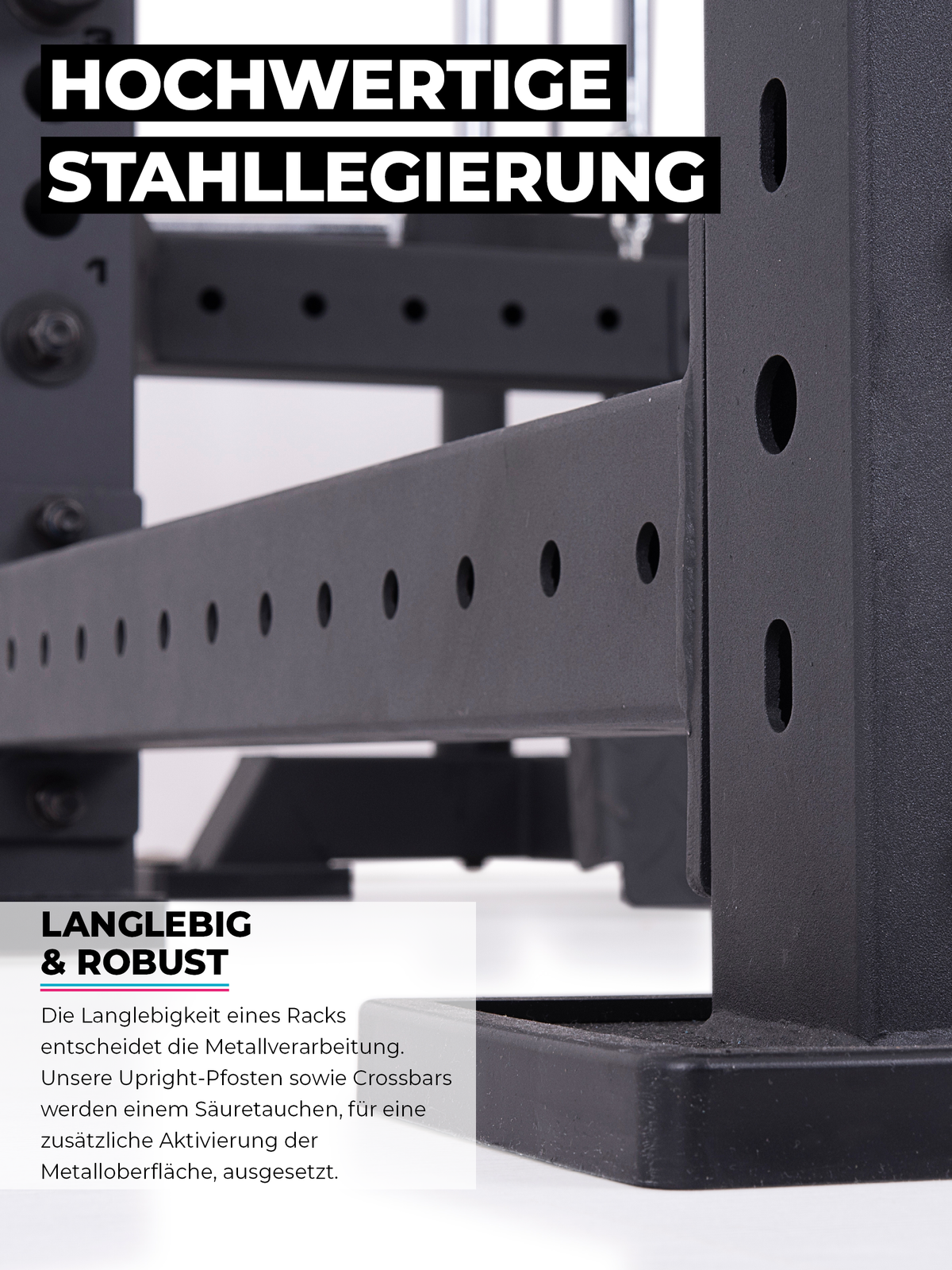

Base Frame
| Steel type | Alloy Steel |
|---|---|
| Square tube | 3"x3" |
| Metal thickness | 11-gauge |
| Coating | Double powder coating or stainless steel (depending on choice) |
| Corrosion resistance | Zinc alloy or stainless steel (depending on choice) |
Hole Pattern & Compatibility
| Hole grid | 2" (50 mm) |
|---|---|
| Hole (Pin) | 1" (25 mm) |
| Center distance of the hole | 2" (50 mm) |
| Numbering and scaling | 32-position laser engraved + 9-position Ultra-Fine Adjustment CrossBars |
| Weight plate compatibility | 2" (50 mm) |
| ATLETICA compatibility | ATLETICA R8 Attachments - Modular Concept |

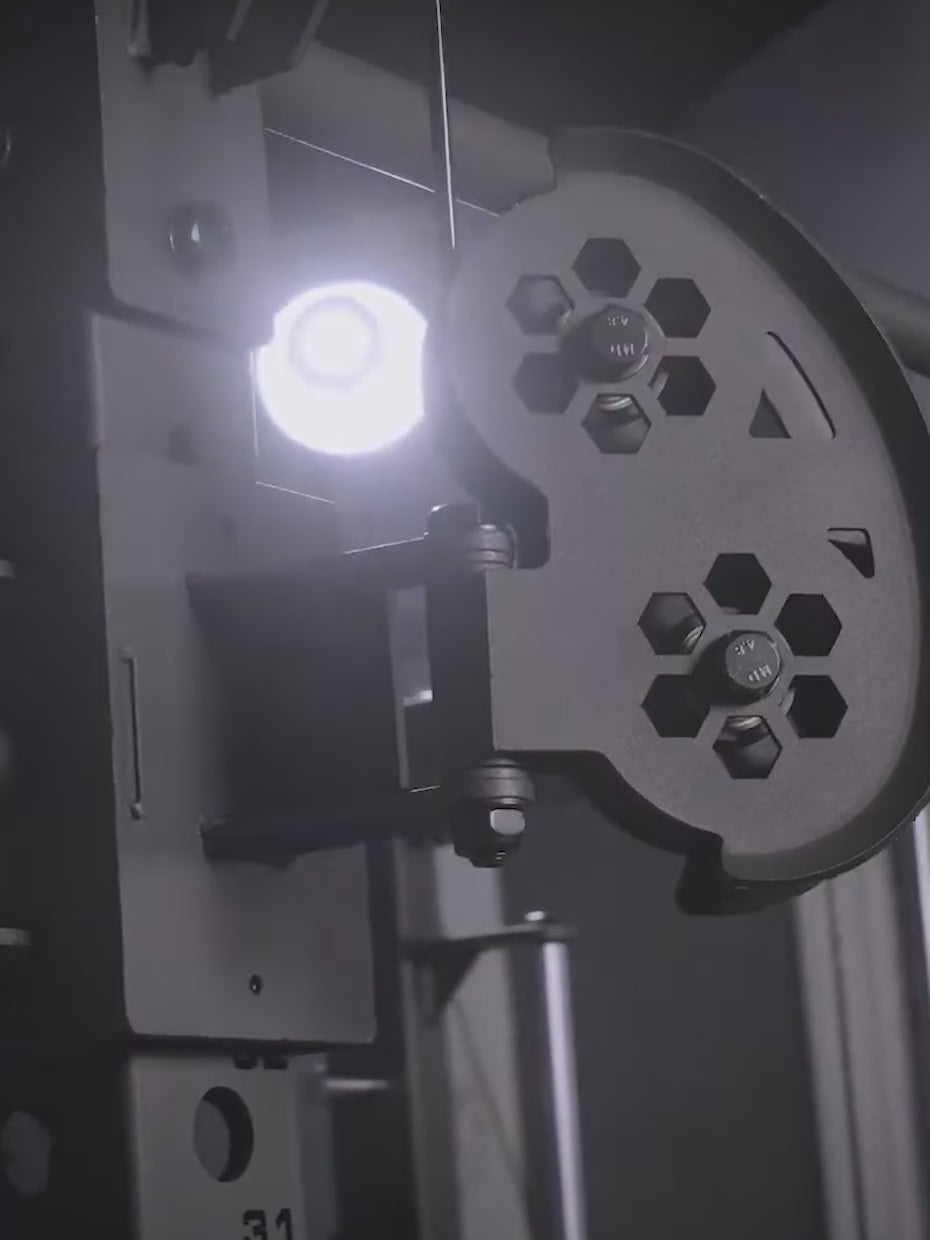

Cable Pulley
| Weight loading | Weight Stack |
|---|---|
| Gradation | 10 lb |
| Weight block | 2 x 190 lb (380 lb total) |
| Gear ratio | 2:1 |
| Rollers | Plastic |
| Roller bearing | Ball Bearing |
| Cable | Quadruple-sheathed steel cable |
| Cable pull rotation | 180° |
Attachments/Accessories
| Image | Product | Description | Price |
|---|---|---|---|
| R8 Bradley | 380 lb Cable Pulley Attachment | Dual | 43-inch Crossbar | Position 3 | 1x | ||
| R8 Colored Uprights 89" | Electric Green | Pair | 2x Pair | ||
| R8 43-inch Crossbar | Pair | 2x Pair | ||
| R8 Reinforced Crossbar | 1x | ||
| R8 Monkey Bar | Pull-Up Bar | 1x | ||
| R8 Plate Holders 12" | 2x Pair | ||
| R8 Weight Pins 8" | 2x Pair | ||
| R8 J-Hooks | Type 4 | 1x Pair | ||
| R8 Spotter Arms | 1x Pair |
Warranty & Certification
| Basic frame guarantee | LifeTime |
|---|---|
| Attachment device guarantee | 5 Years |
| Approval | EN ISO 20957 Class S, suitable for gym and commercial use |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
|---|---|
| Appointment | Email announcement with date selection |
| Assembly time | 3h |
| Tools required | 17 mm and 19 mm wrenches, ratchet, Allen key set |
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Carrier pickup on preferred date |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
