R8 Bradley EXO 380 lb | Power Rack | 16.5" | Black
The R8 Power Rack with EXO Arms – modularly expandable, retrofittable and compatible with R8 Attachments
R8
Bradley EXO 380 lb
Solid 3"x3" 11-gauge steel for high stability
Laterally integrated cable pulleys for a secure stance during every exercise
R8 Modular Principle
Seamless integration
Tested Quality
Dual weight stacks – 2 × 190 lb (380 lb total). Each stack: three 60 lb blocks (6 × 10 lb plates) plus a 10 lb top plate with selector bar. Upgradable to 2 × 250 lb (500 lb total) with one additional 60 lb block per stack (available as an upgrade).

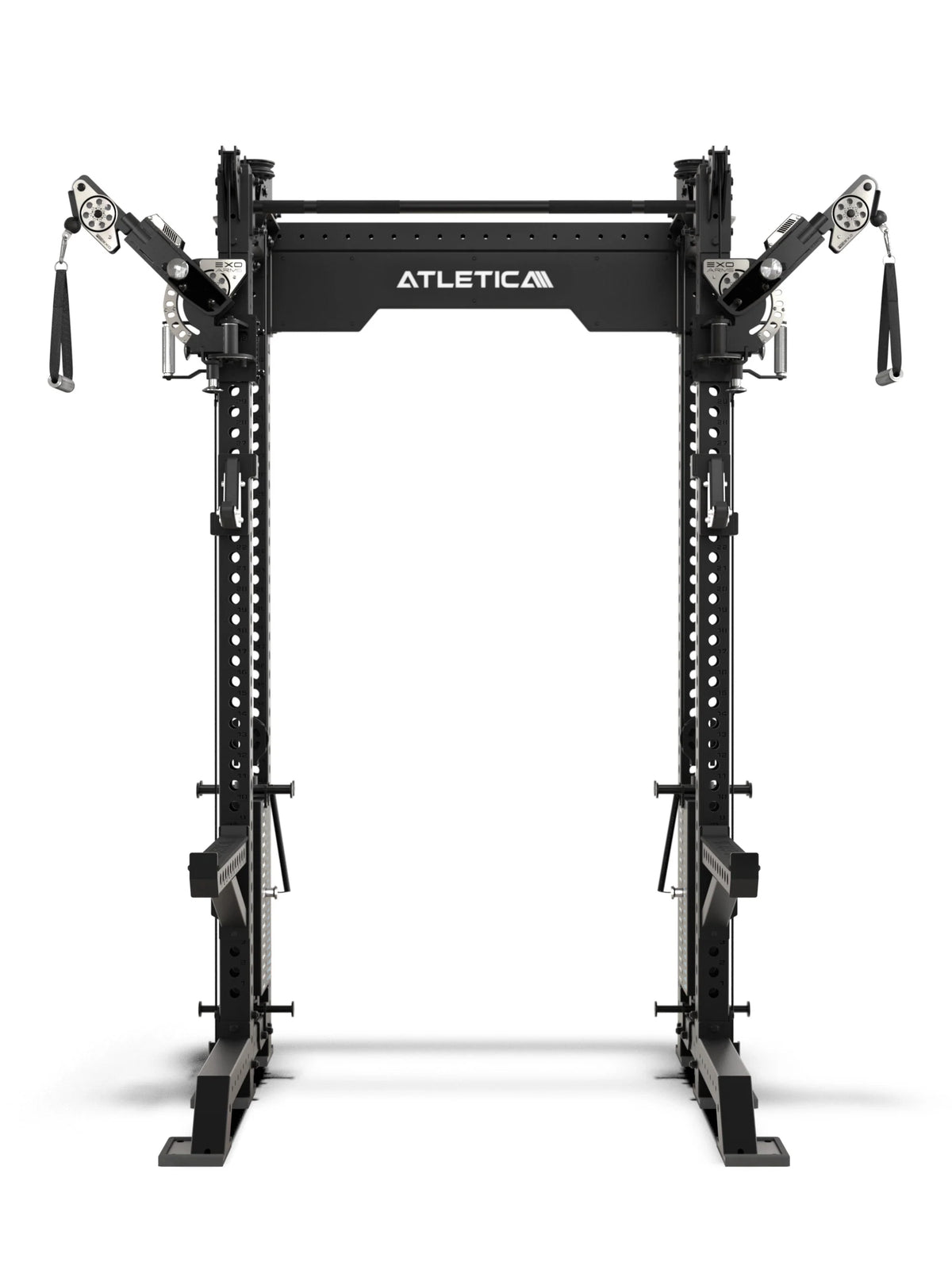

R8 Bradley EXO 380 lb | Power Rack | 16.5" | Black
- 16.5" crossbar depth for an especially compact R8 setup with a small footprint
- Integrated EXO Arms for maximum cable pulley freedom despite the short rack depth
- 380 lb weight stacks for comfortable, fast adjustment without weight plates
- Ideal for efficient exercise changes in strength training and functional training
- Fixed weight stacks for clean, tidy training in the garage gym and commercial gym

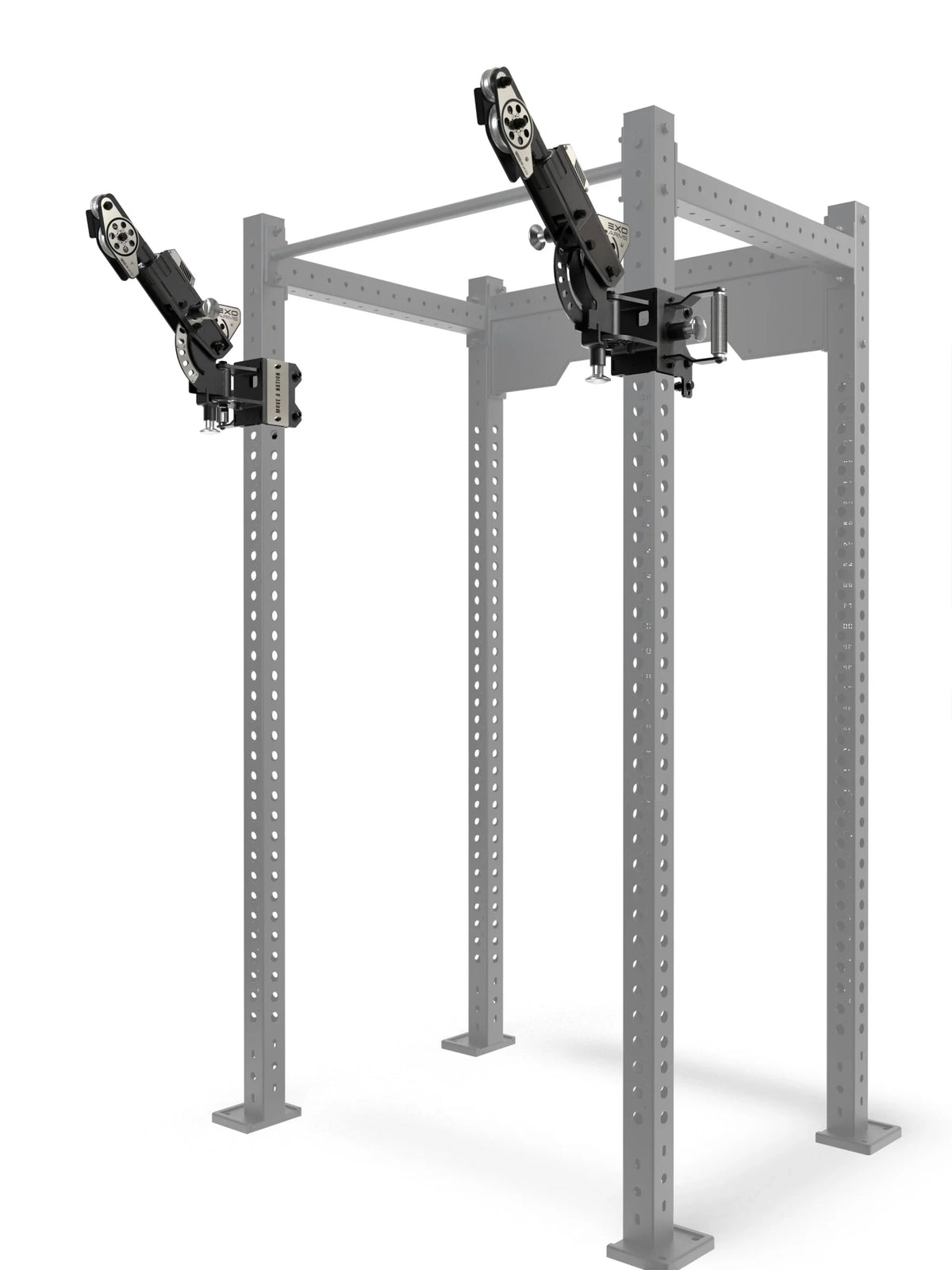

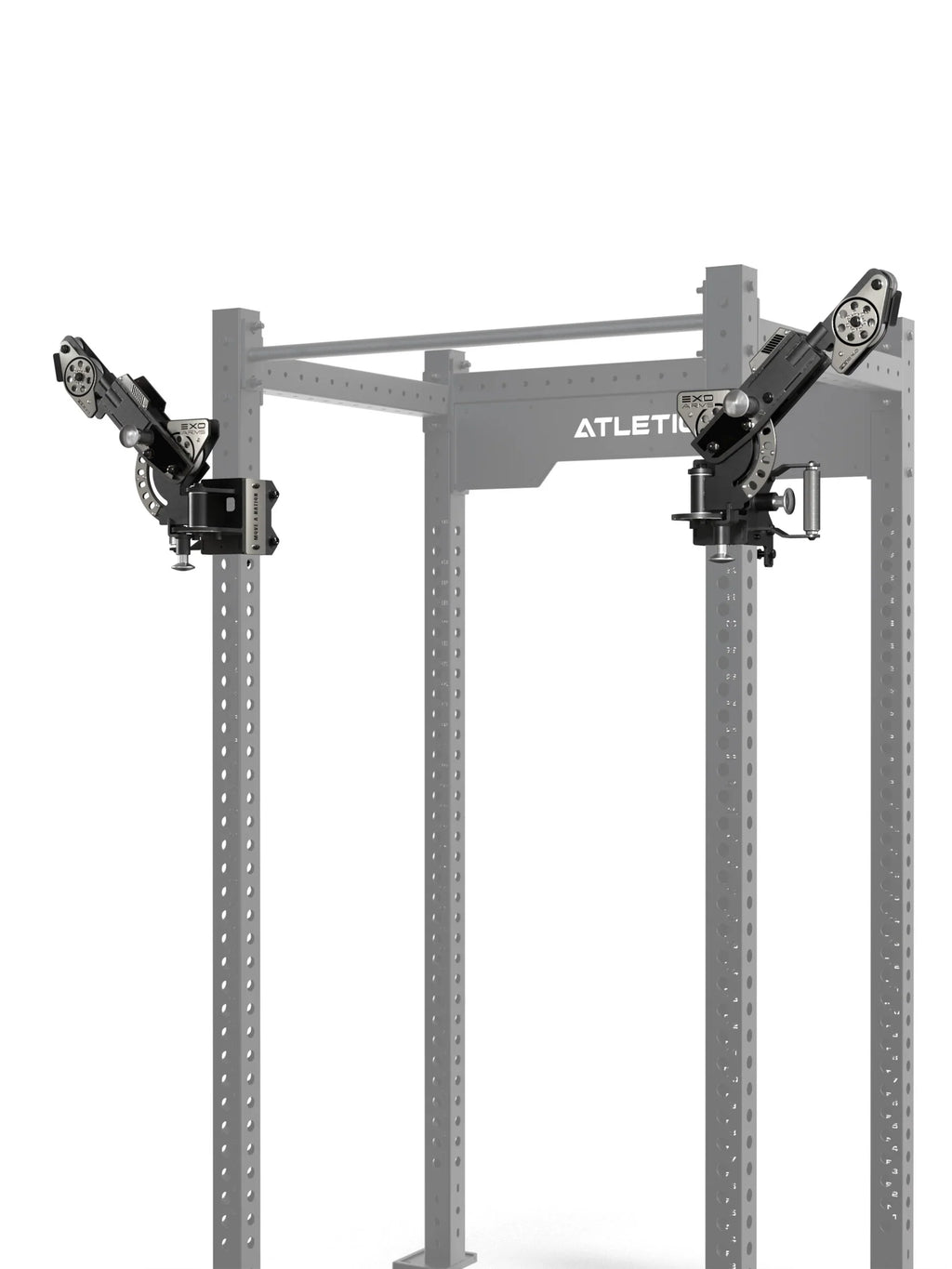

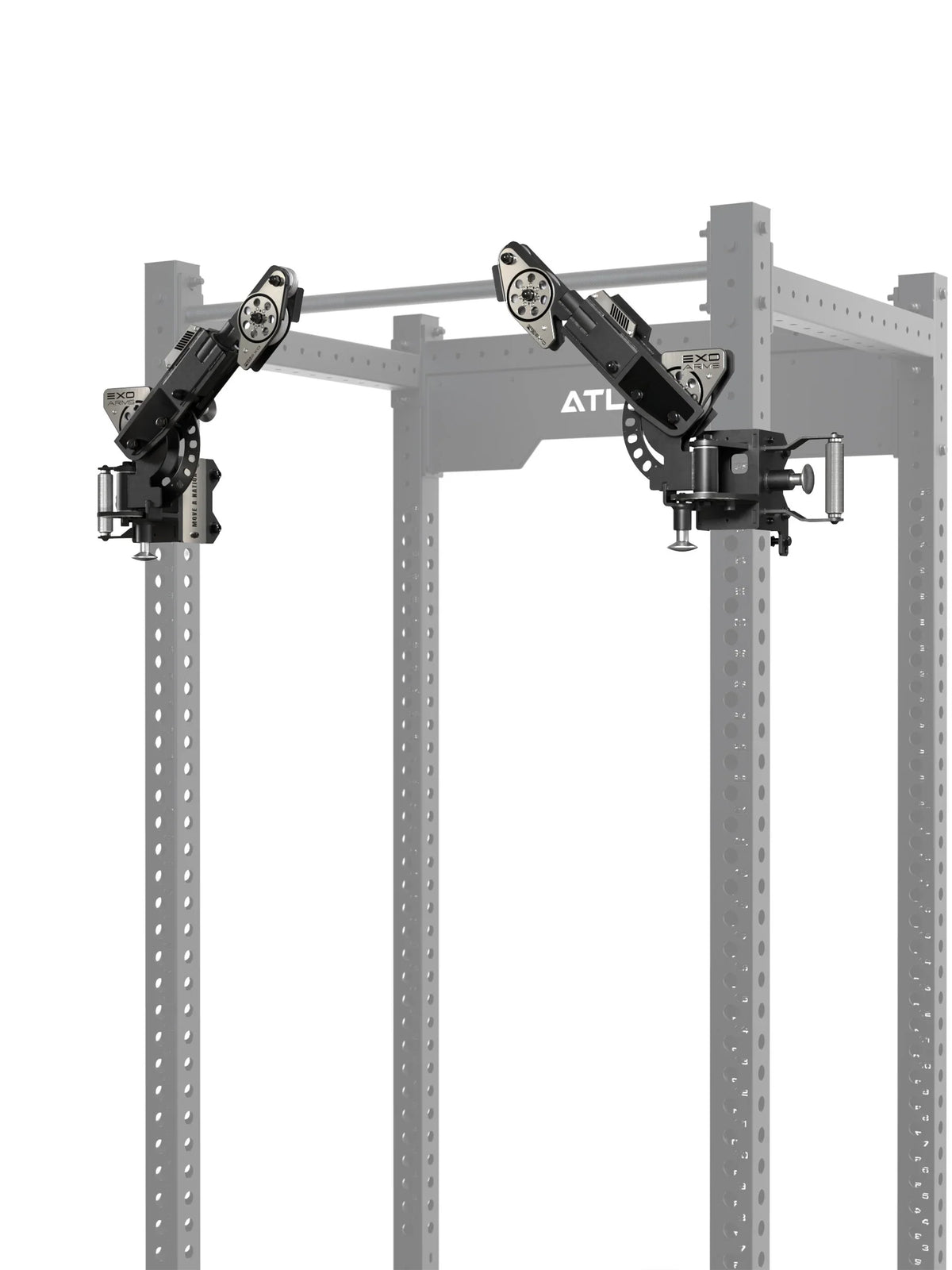

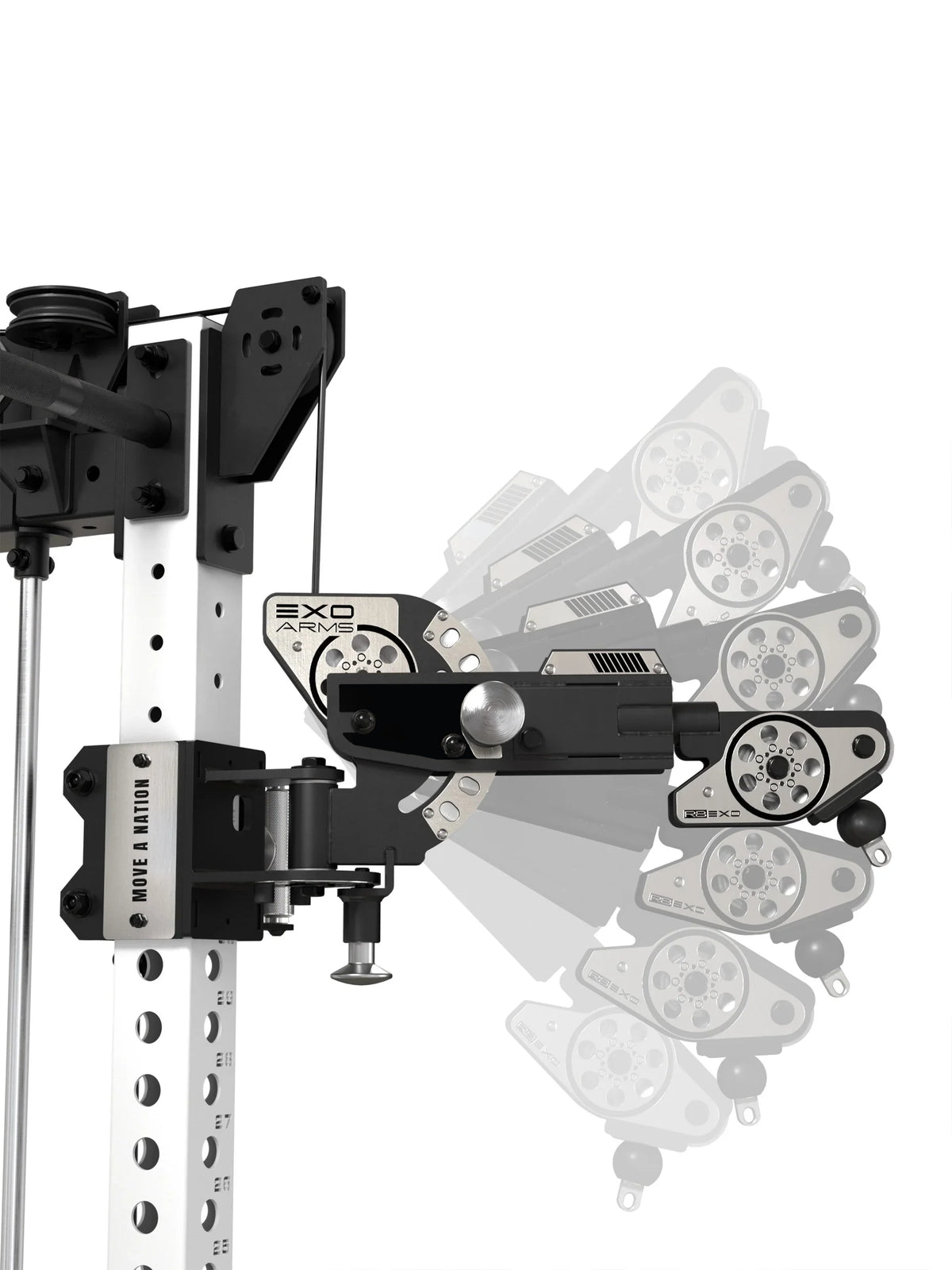

Two EXO Arms. 49 angles. No limits.
- Horizontal adjustment: 180° in 7 positions

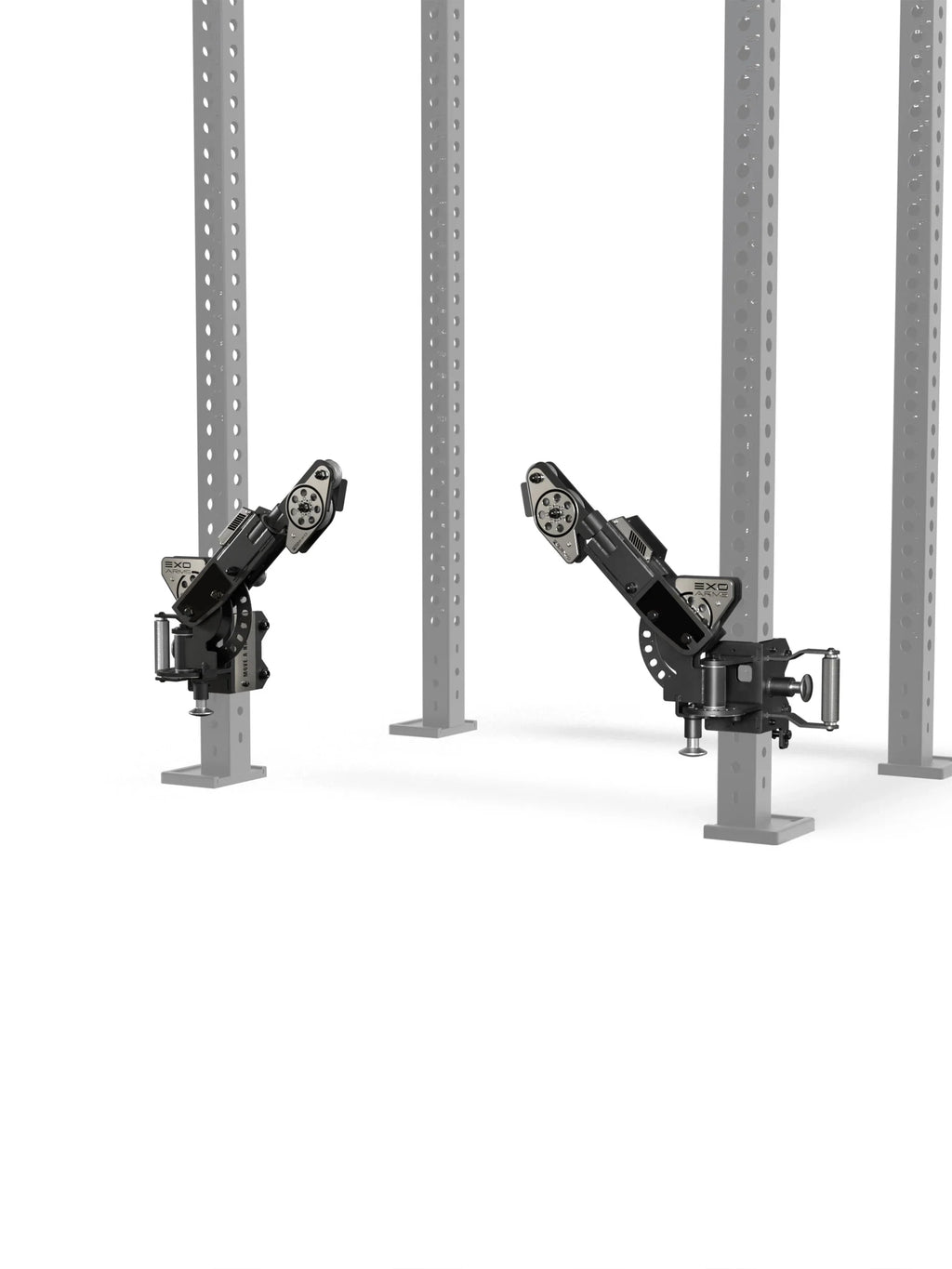

- Vertical adjustment: 90° in 7 positions
- A total of 49 angle combinations per side
- Ideal for Cable Flys, rowing, lat pulldown, Face Pulls, curls, triceps presses, and functional training
- Training from inside, outside, overhead, or below the body is possible
- Turns a fixed cable pulley point into a freely adjustable cable-cross system

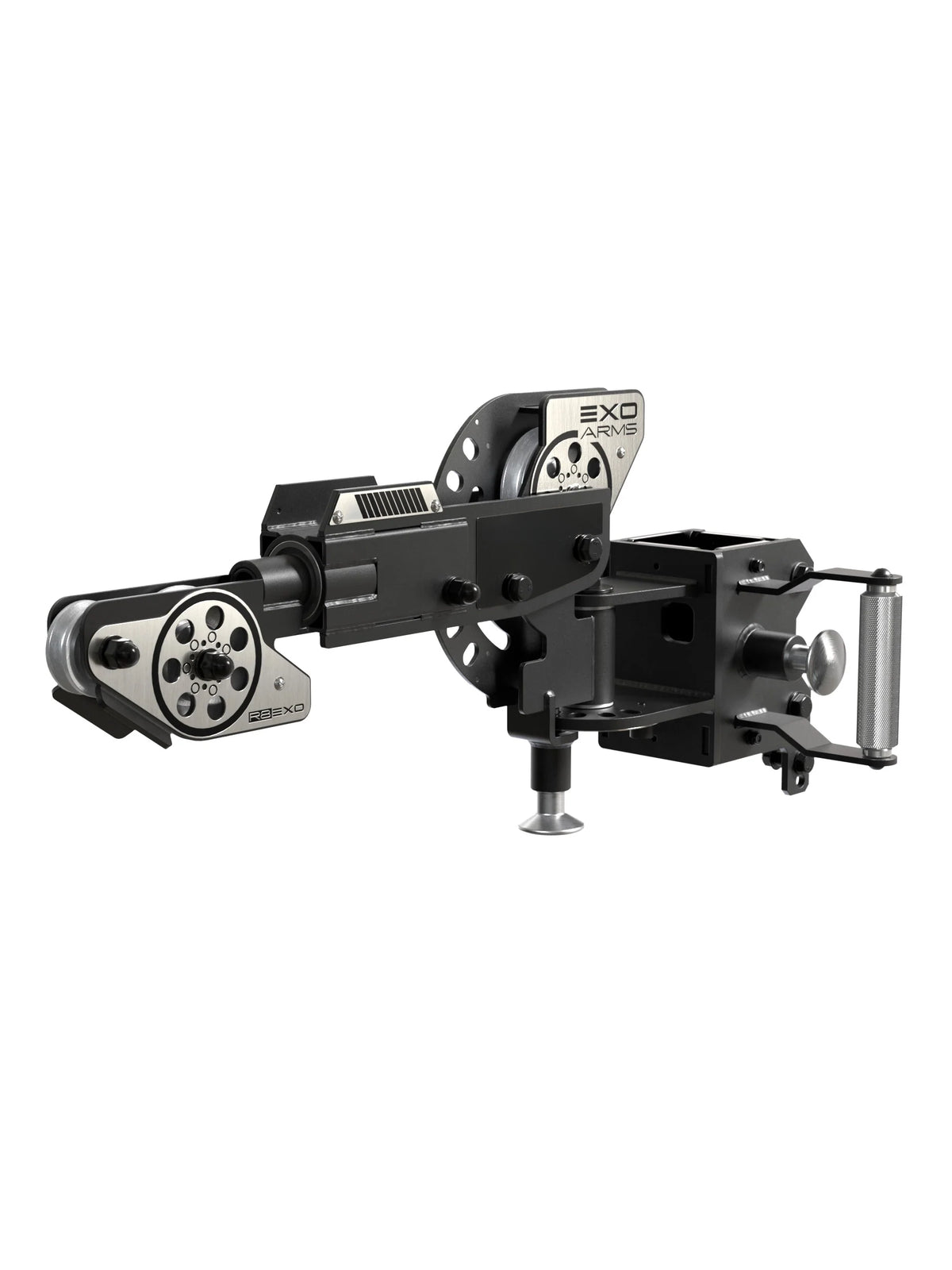

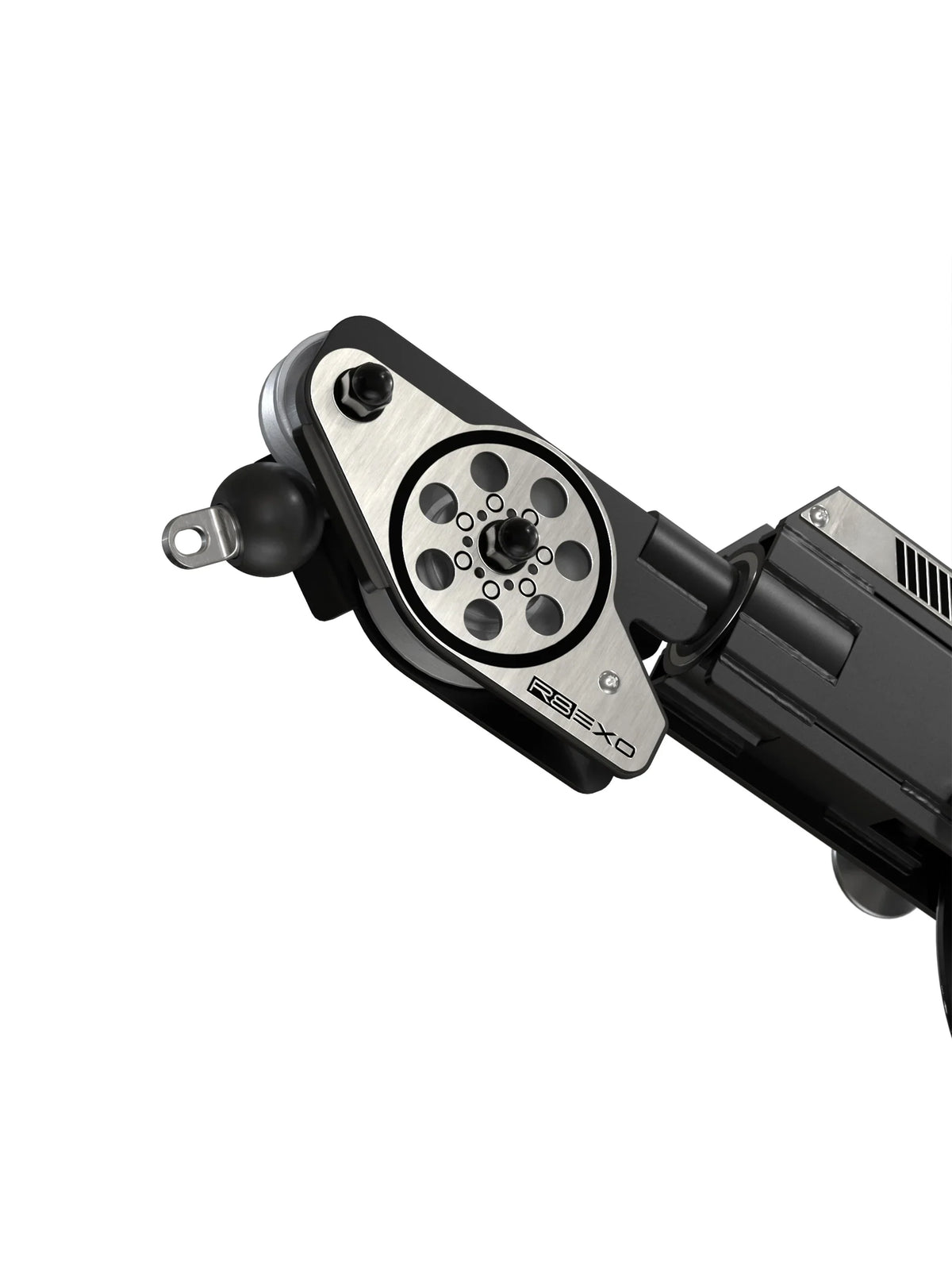

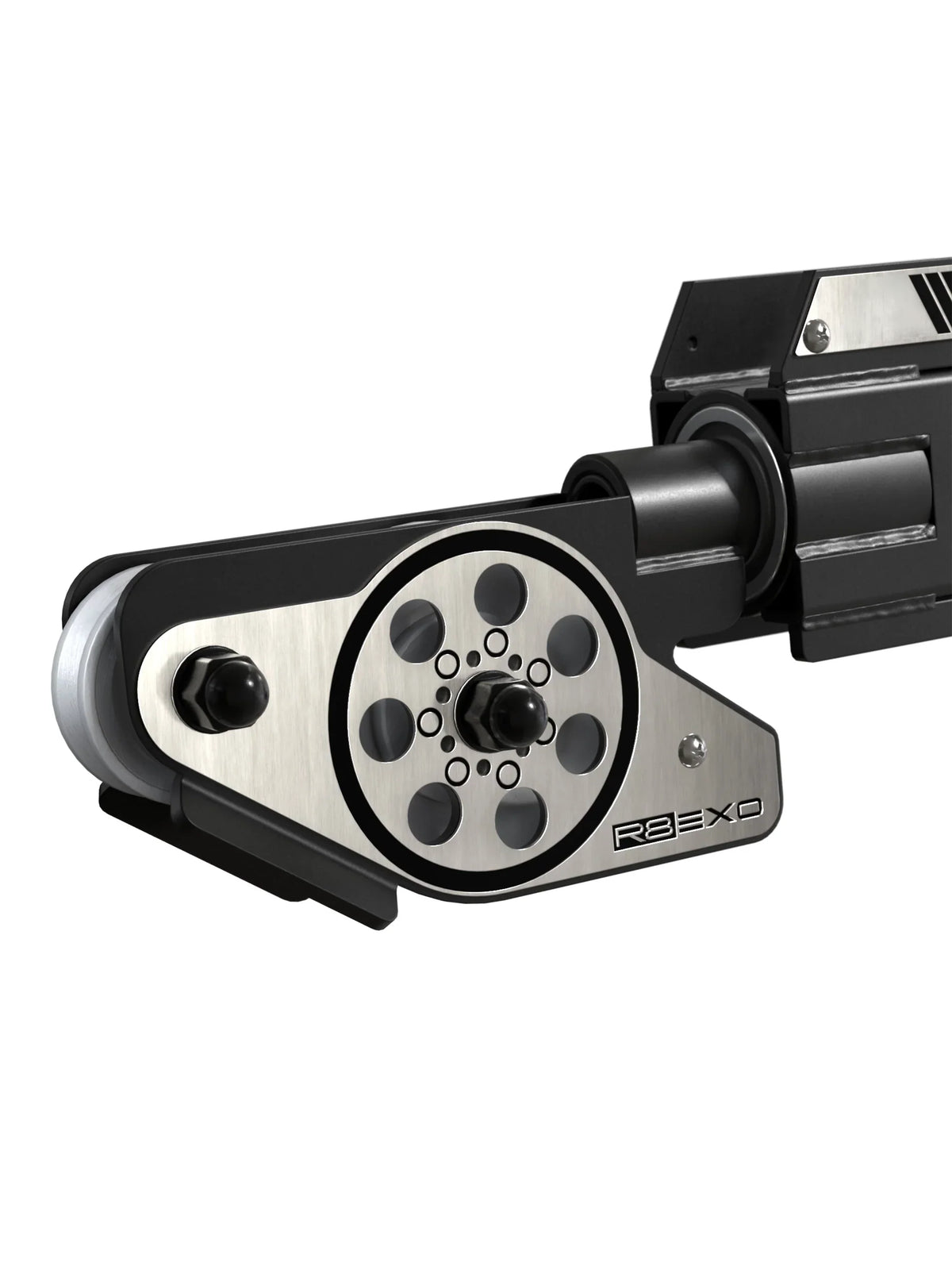

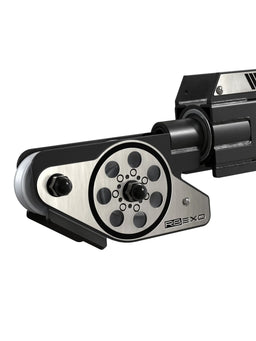

The Cable Pulley follows your movement – not the other way around.

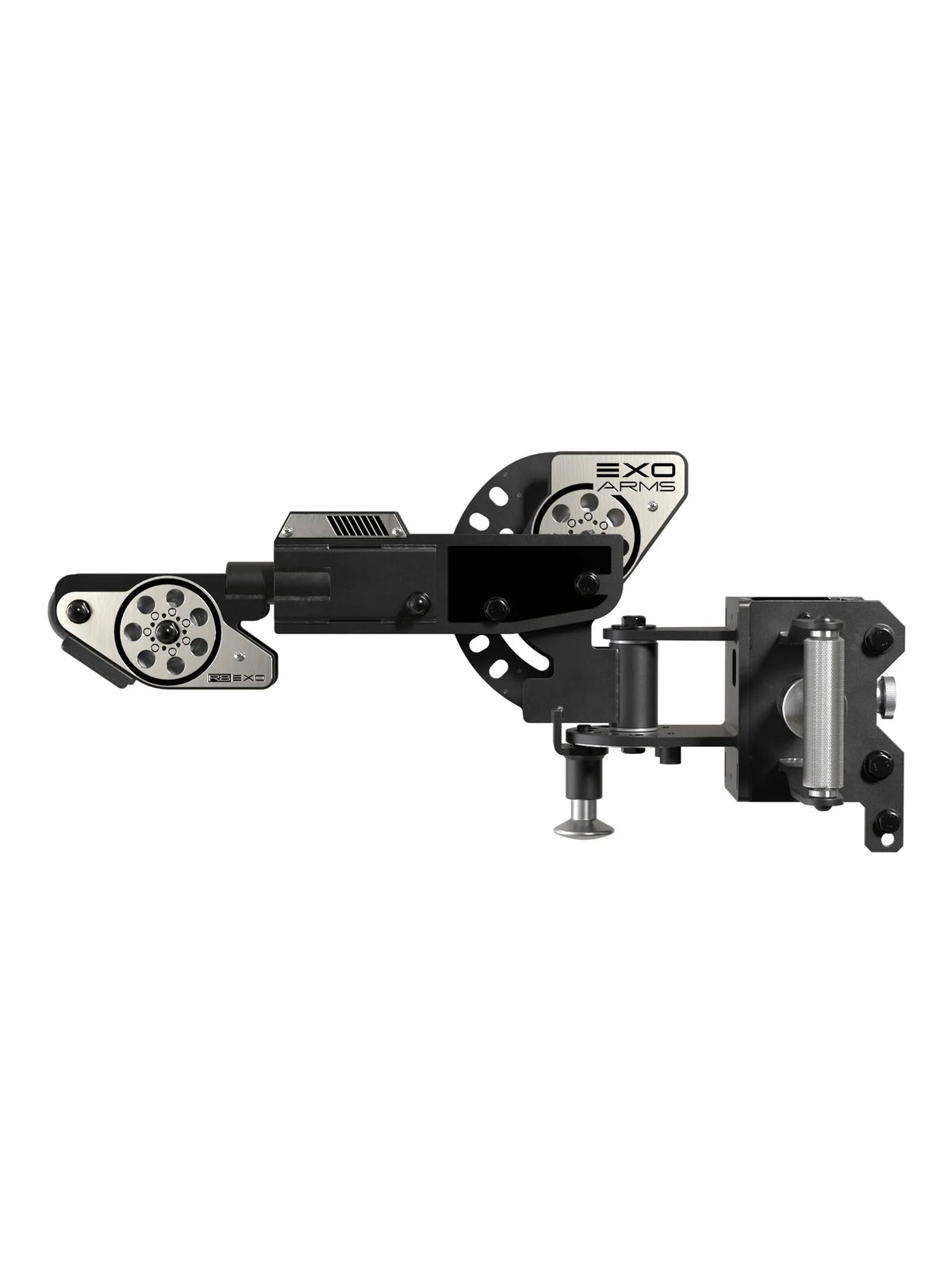

- 360° rotating cable outlet for clean cable routing in the pulling direction
- Handles, carabiners, and accessories hang freely
- No jamming, no rubbing against the frame
- Optimized for full range of motion
- Even force transmission across the entire pulling path
- Natural training feel during free cable pulley exercises

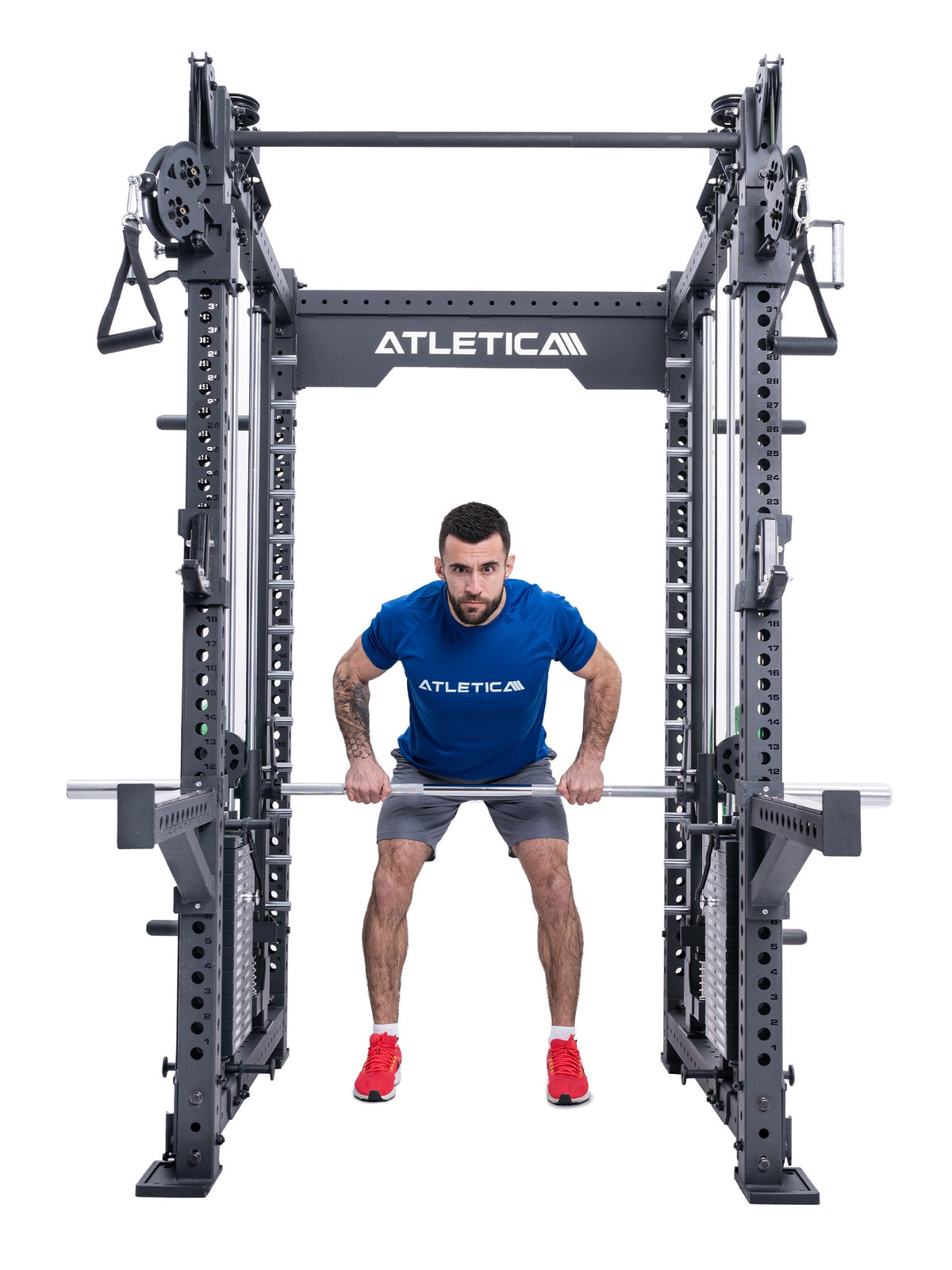

Built once. Durable for good.
- Solid R8 Power Rack with 3"x3" 11-gauge steel tube profile
- Stable frame for squats, bench presses, shoulder presses, and rowing
- Reinforced crossbars for high load capacity
- Built for heavy sets, dynamic movements, and high training frequency
- For the cable pulley system, the rearmost position in the rack is intended in these configurations
- This ensures maximum stability and tip resistance

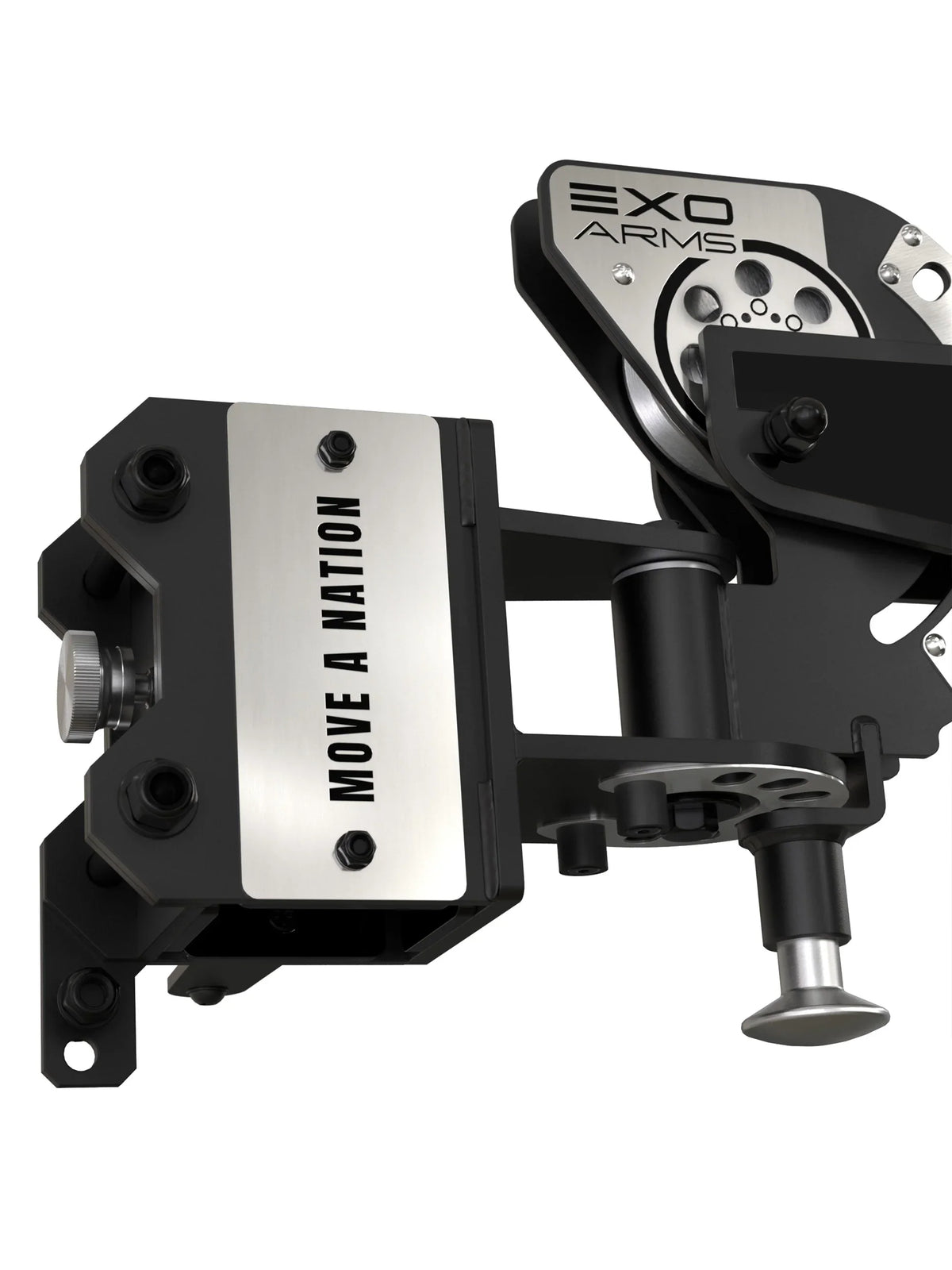

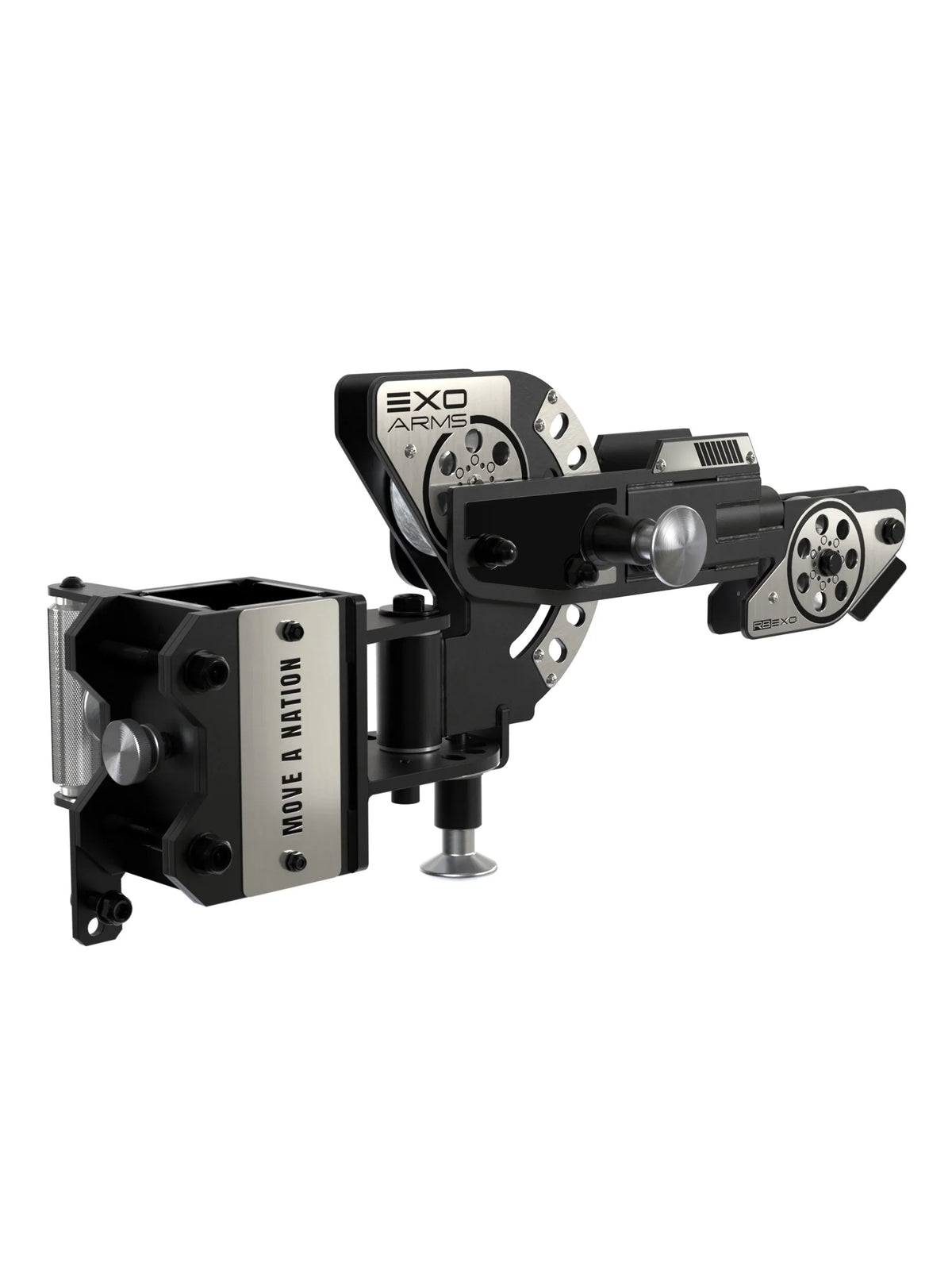

Rock-solid on the rack. Freely moving when adjusting.
- Carriage runs with zero play on the upright
- No wobbling, no rattling, no giving way
- Under training load, the arm locks into the force vector
- Tool-free adjustment for quick exercise changes
- Protection of the rack coating via UHMW plates
- Designed for 3"x3" uprights
Your R8 Rack, ready for any upgrade.
- Compatible with numerous R8 attachments such as step-up platform, hip-thrust pad, Leg Blocker for lat pulldown, and dip station

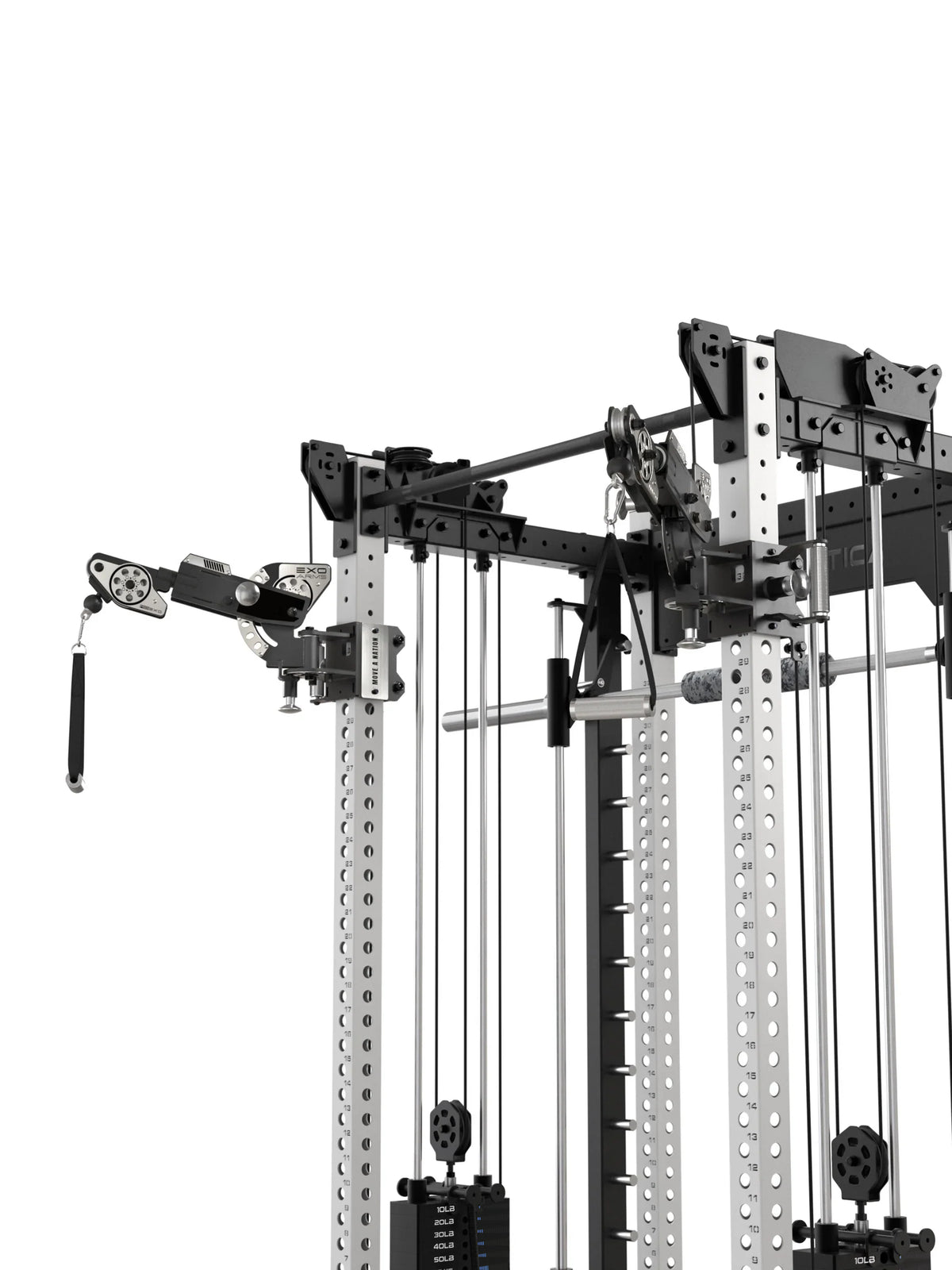

- The R8 Bradley EXO Power Rack is part of the modular R8 system. Existing R8 Power Racks can be retrofitted with the EXO Arms in the future
- More training options without additional equipment and without loss of space
- Designed for long-term and intensive use
- TÜV- and GS-certified to ISO 20957
- The ATLETICA R8 Power Racks meet the highest international safety standards and are suitable for use in commercial gyms.
Item ID
| SKU | 111-1507 |
| EAN | 4262577714896 |

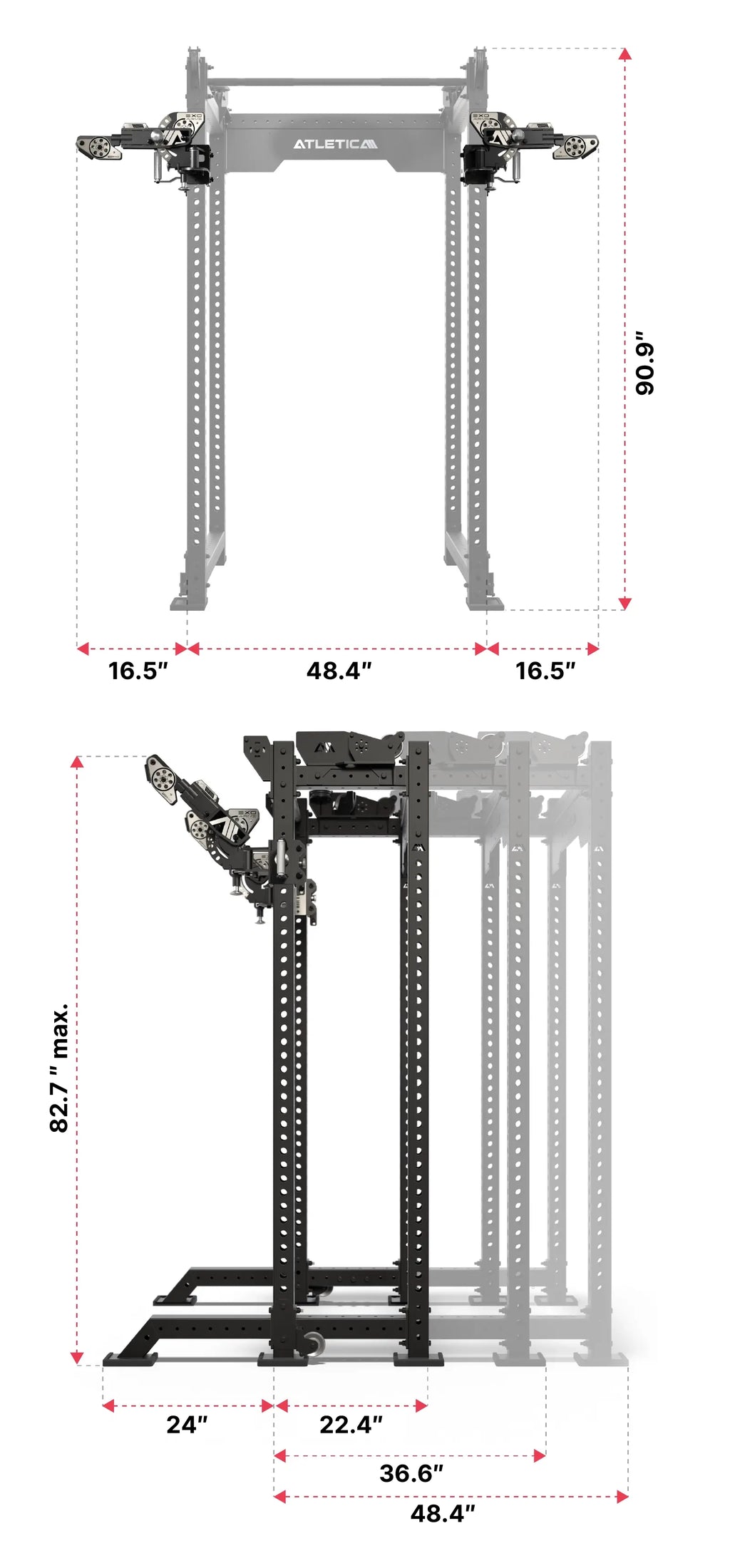

R8 Bradley EXO Power Rack 380 lb- Dimensions
| Total Height | 91" |
|---|---|
| Width: Frame | 48" |
| Depth: Feet | 46" | 37" | 48" |
| Length: EXO Arms | 16.5" |
| Total Weight | Short / Medium / Long: 1,070 lb / 1,055 lb / 1,070 lb |
Base Frame
| Steel type | Alloy Steel |
|---|---|
| Square tube | 3"x3" |
| Metal thickness | 11-gauge |
| Coating | Double powder coating |
| Corrosion resistance | Zinc Alloy |
Hole Pattern & Compatibility
| Hole grid | 2" (50 mm) |
|---|---|
| Hole (Pin) | 1" (25 mm) |
| Center distance of the hole | 2" (50 mm) |
| Numbering and scaling | 32-position laser engraved + 9-position Ultra-Fine Adjustment CrossBars |
| ATLETICA compatibility | All ATLETICA R8 Attachments - Modular Concept |
Cable Pulley
| Weight loading | Weight Stack/Plate Loaded |
|---|---|
| Gradation | 10 lb/Plate Loaded |
| Weight block | 2 x 190 lb (380 lb) / 2 x 250 lb (500 lb) / plate loaded |
| Gear ratio | 2:1 |
| Rollers | Plastic |
| Cable | Quadruple-coated steel cable |
| Cable pull rotation | 180° |
Warranty & Certification
| Basic frame guarantee | LifeTime |
|---|---|
| Attachment device guarantee | 5 Years |
| Approval | Class S: Suitable for gym and commercial use |
| TÜV | TÜV- and GS-certified to EN ISO 20957 |
Delivery & Assembly
| Shipping | Freight delivery on pallet |
|---|---|
| Appointment | Email announcement with date selection |
| Assembly time | 3h |
| Tools required | 17 mm and 19 mm wrenches, ratchet, Allen key set |
Service & Return Policy
| Return policy | 100 days after purchase |
|---|---|
| Organization of return | Carrier pickup on preferred date |
Included Services
| Training Plan and Equipment Support | 1h Online Consultation Included |
|---|---|
| Quick Troubelshooting Service | 7-Day Remote Help Service |
